Tools Required
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
J 5403 Snap Ring Pliers
Important: If you reinstall an existing control switch in the compressor, use a new O-ring and a new retainer ring. An O-ring and a retainer ring is included in a new switch kit.
- Lubricate the new O-ring using clean refrigerant oil.
- Install the new O-ring into the groove in the switch cavity.
- Lubricate the control switch housing using clean refrigerant oil.

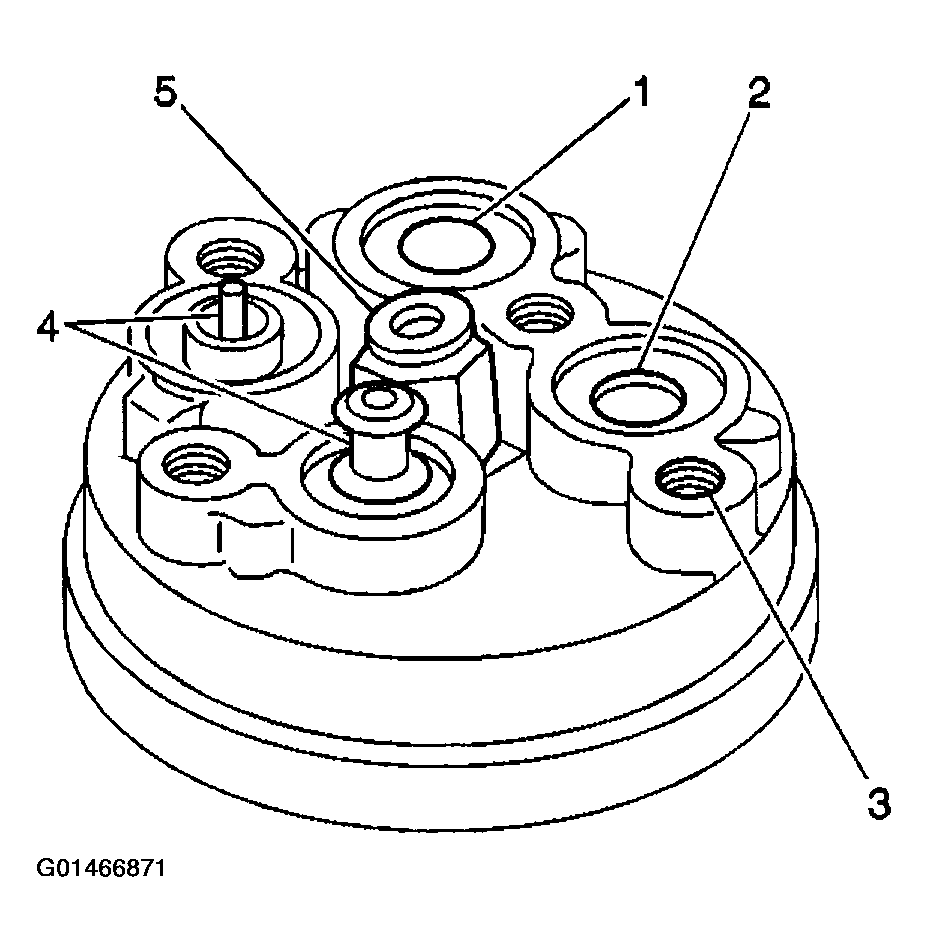

- Install the switch (4) into the switch cavity until the switch bottoms in the cavity.
- Using the J 5403 , install the switch retaining ring. Ensure that the high point of the curved sides is adjacent to the switch housing. Ensure that the retaining ring is properly seated in the switch cavity retaining groove.
- Leak test according to bench test procedure.
