Tools Required

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor from the vehicle.
  2. Clamp the A/C compressor holding fixture, J 41790  in a vise and attach the A/C compressor to the J 41790  .

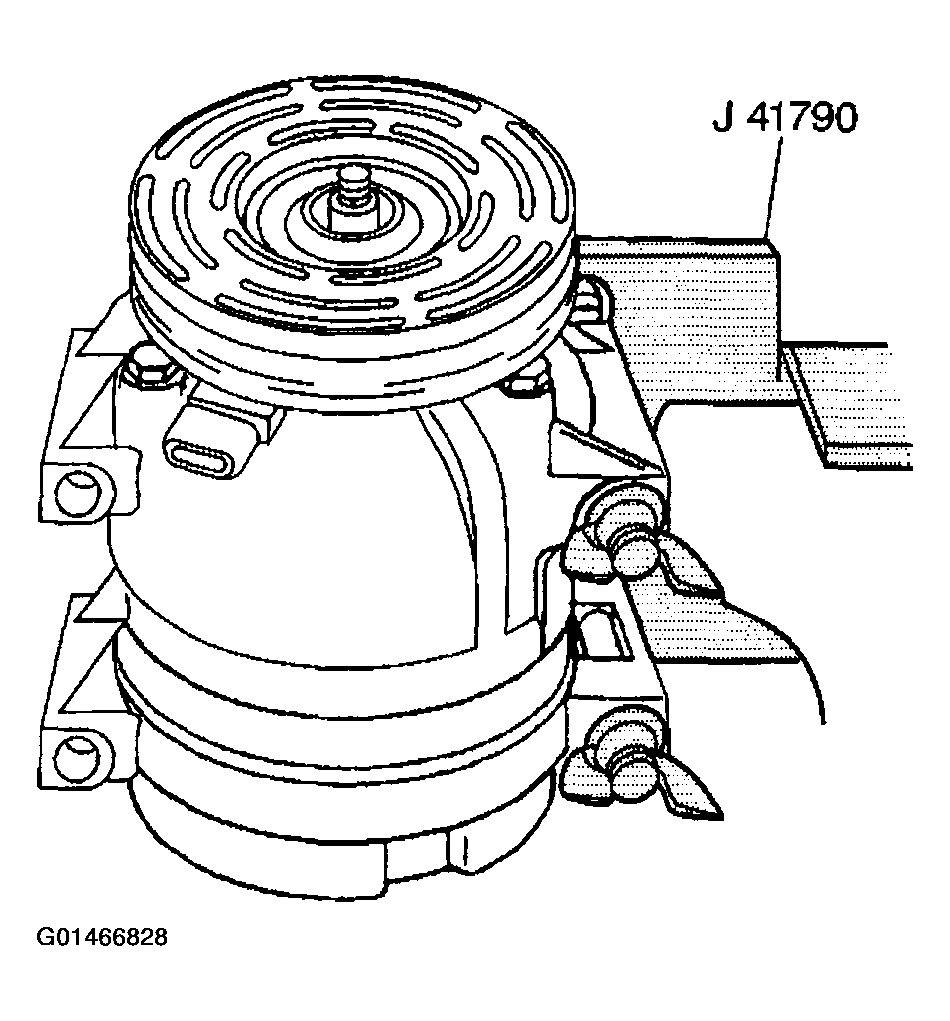

    Fig 1: Removing A/C Compressor From Vehicle
    G01466828Courtesy of GENERAL MOTORS CORP.
  3. Hold the clutch hub and drive plate assembly (2) in place using the J 33027-A  .
  4. Remove the A/C compressor shaft nut with a 13 mm socket (1).

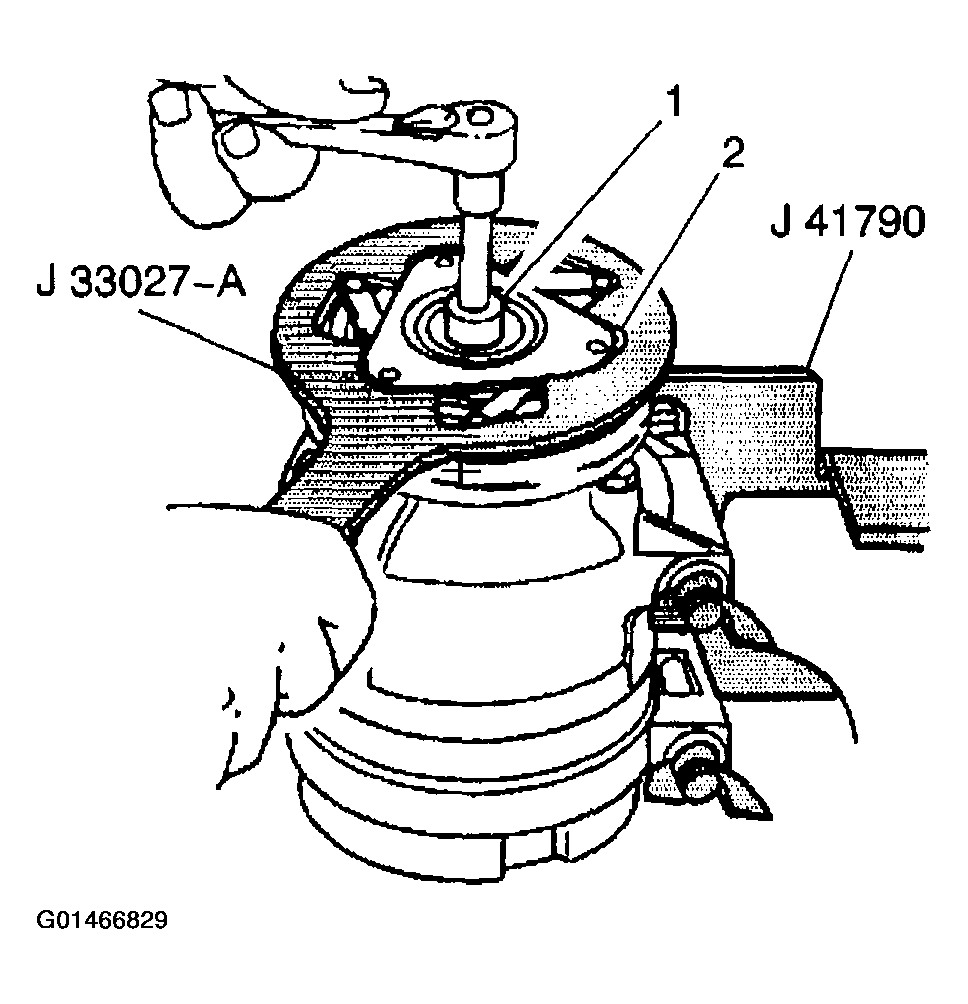

    Fig 2: A/C Compressor Shaft Nut
    G01466829Courtesy of GENERAL MOTORS CORP.
  5. Thread the J 33013-B  into the hub.
  6. Remove the hub and drive plate assembly (1) by turning the center screw into the body of the J 33013-B  and against the A/C compressor shaft.
  7. Remove the shaft key and retain for reassembly.

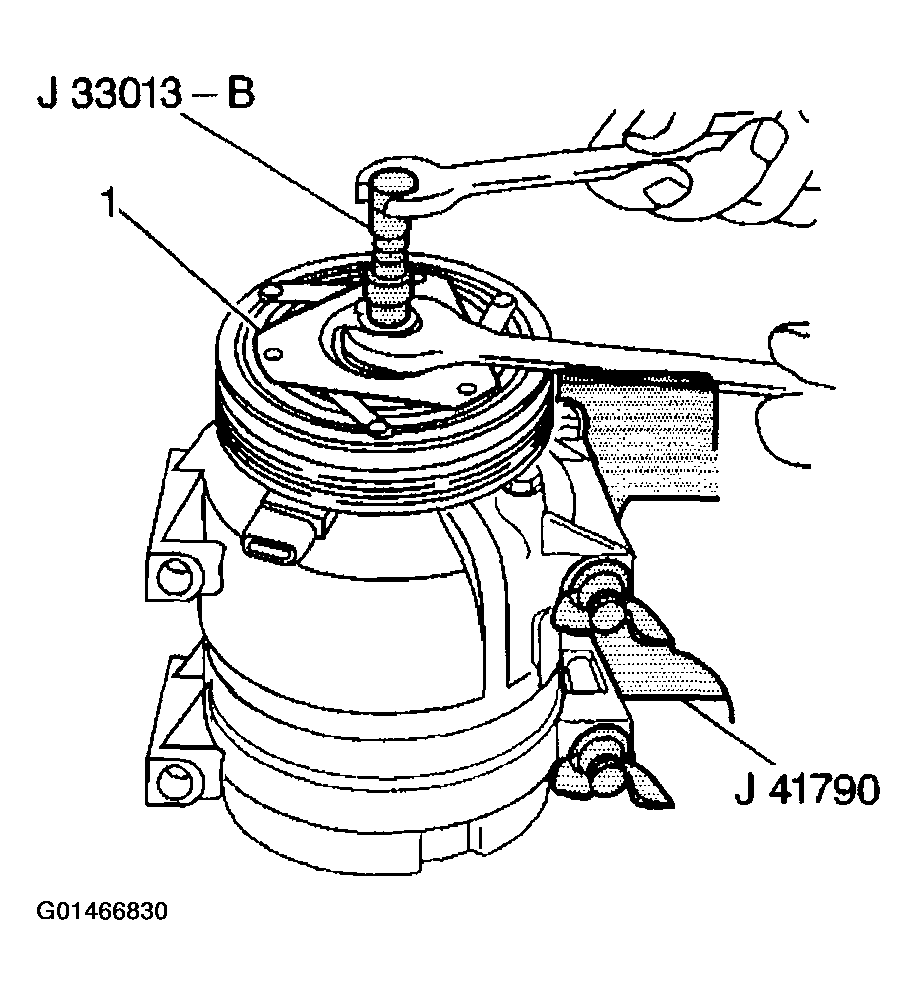

    Fig 3: Hub & Drive Plate Assembly
    G01466830Courtesy of GENERAL MOTORS CORP.
