Tools Required

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor from the vehicle.
  2. Clamp the J 41790  in a vise and attach the A/C compressor to the J 41790  .

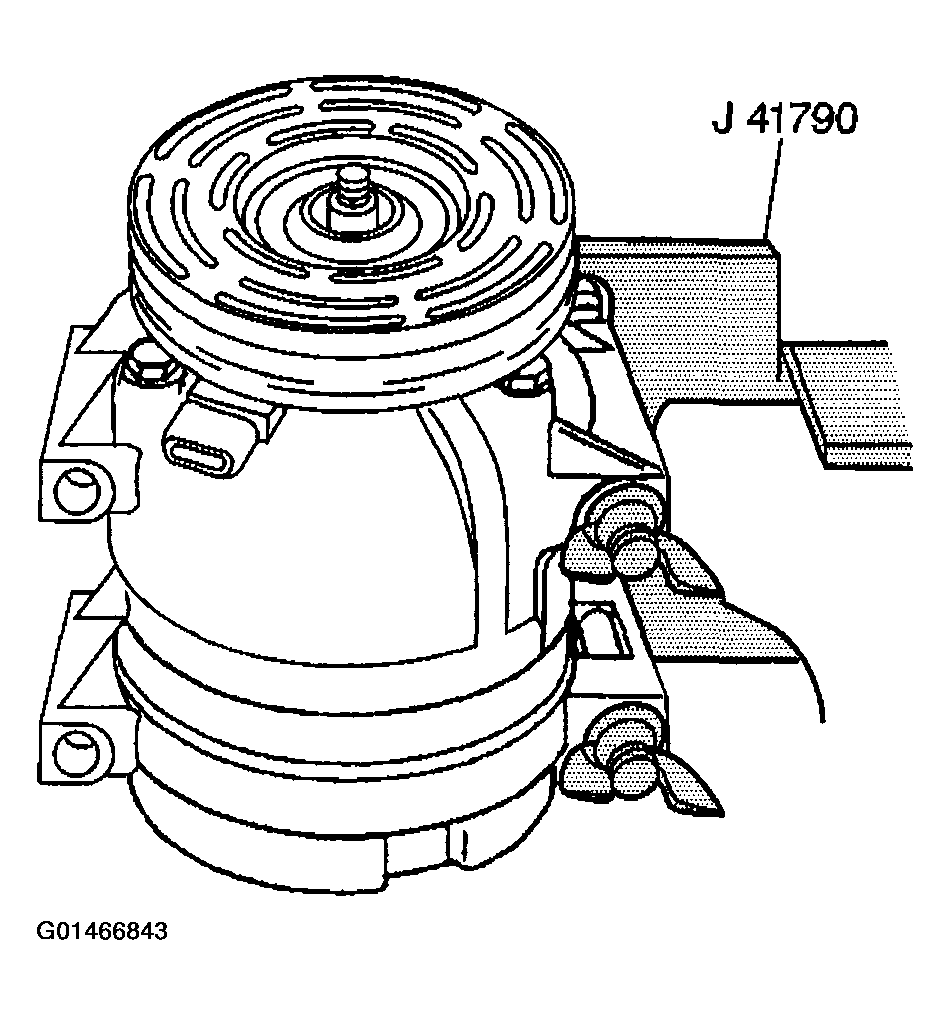

    Fig 1: Removing A/C Compressor From Vehicle
    G01466843Courtesy of GENERAL MOTORS CORP.
  3. Remove the A/C compressor clutch plate and hub assembly. Refer to COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL (V7 - DIRECT MOUNT)  or COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL (HT6/HD6/HU6) .
  4. Install the J 33023-A  onto the front head of the A/C compressor.
  5. Remove the A/C compressor rotor and bearing assembly. Refer to CLUTCH ROTOR AND/OR BEARING REMOVAL (HT6/HD6/HU6)  or CLUTCH ROTOR AND/OR BEARING REMOVAL (V7 - DIRECT MOUNT) .

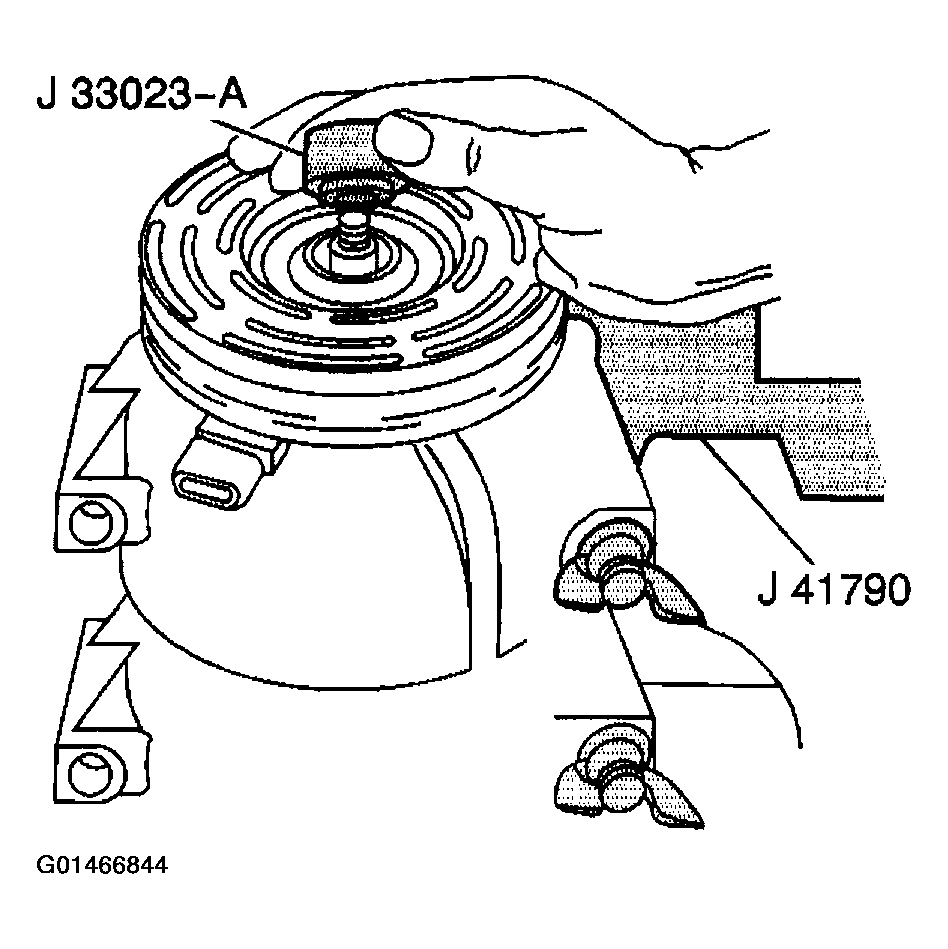

    Fig 2: Installing J 33023-A Onto Front Head Of A/C Compressor
    G01466844Courtesy of GENERAL MOTORS CORP.
  6. Mark the clutch coil terminal location (2) on the A/C compressor front head.
  7. Install the J 33025  onto the J 8433  .
  8. Install the J 8433  onto the A/C compressor clutch coil (1) and tighten the puller leg bolts.
  9. Tighten the center forcing screw J 8433-3  of the J 8433  against the J 33023-A  to remove the A/C compressor clutch coil from the A/C compressor.
  10. Remove the J 8433-3  , the J 33023-A  , the J 33025  and the J 8433  .

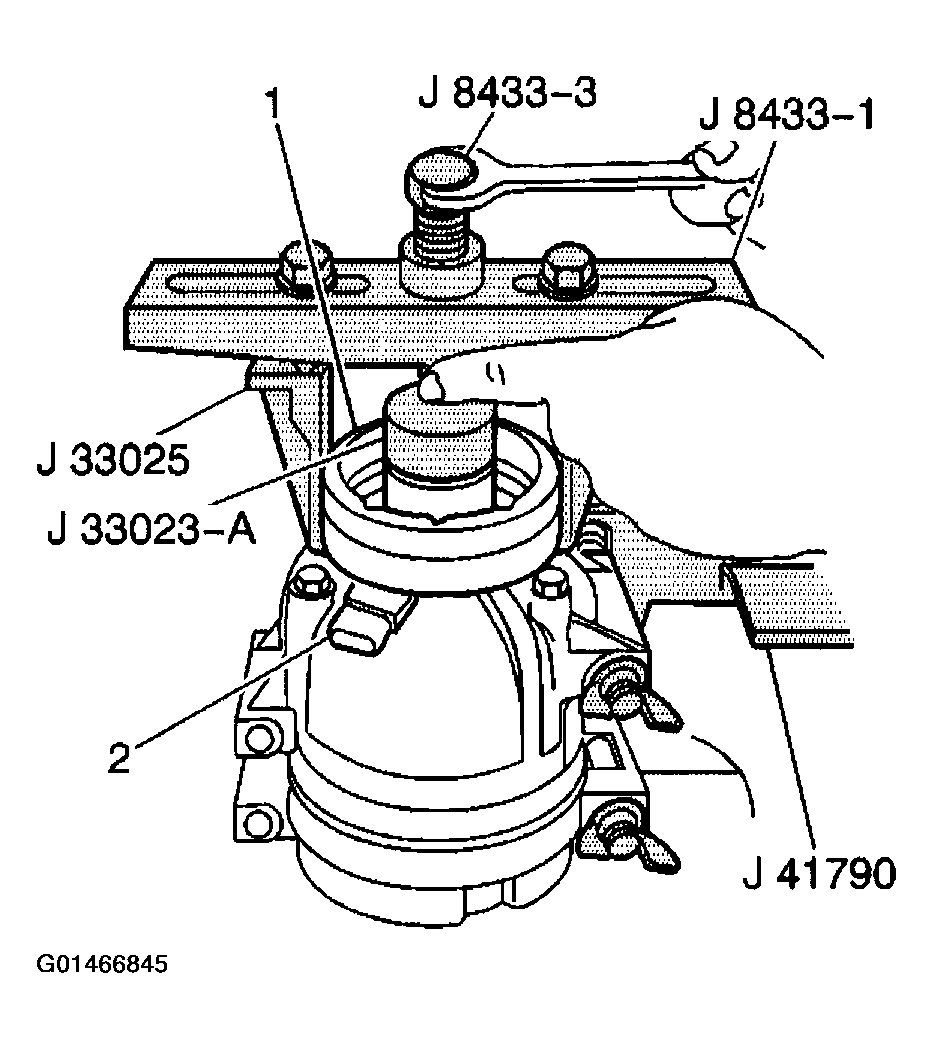

    Fig 3: Removing A/C Compressor Clutch Coil From A/C Compressor
    G01466845Courtesy of GENERAL MOTORS CORP.
