Tools Required

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

J 6083 External Snap Ring Pliers
J 33023-A Puller Pilot
J 41552 Compressor Pulley Puller
J 8433-1 Puller Bar
J 33025 Clutch Coil Puller Legs
J 8433-3 Forcing Screw

Remove the clutch plate and hub assembly. Refer to COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL (V7 - DIRECT MOUNT) or COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL (HT6/HD6/HU6) .

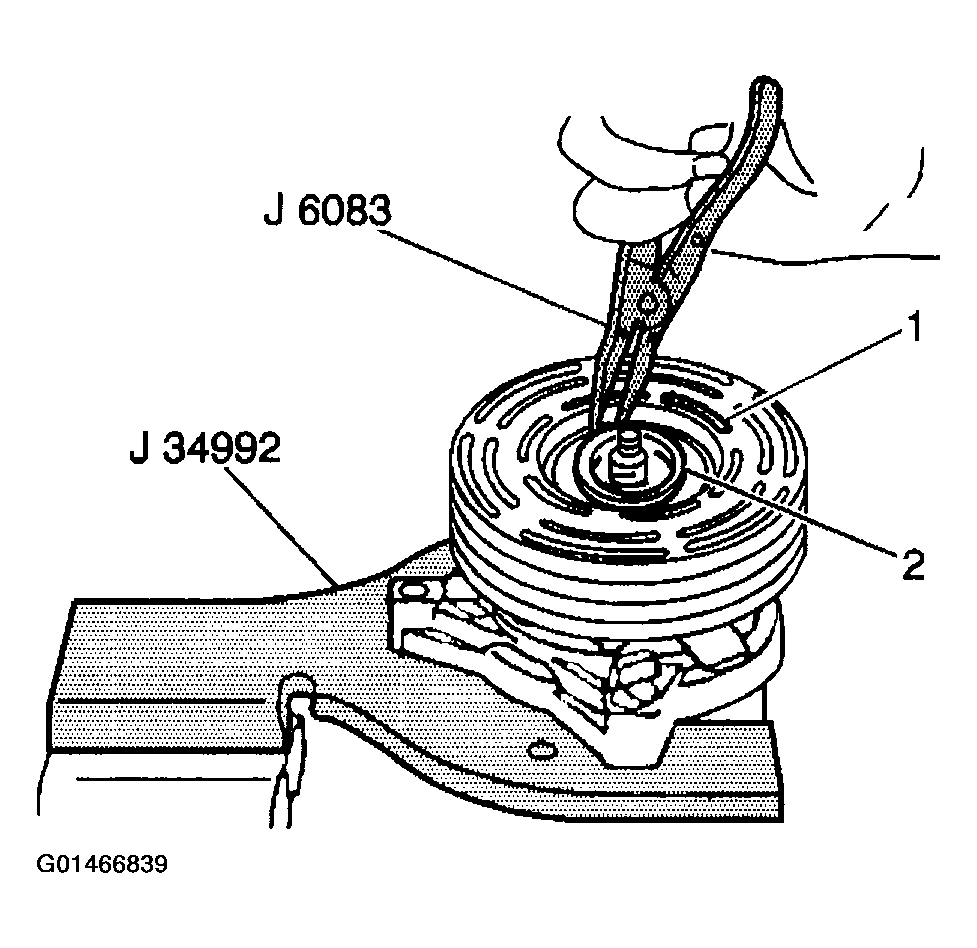

Use the J 6083 in order to remove the following components:
- The pulley rotor (1)
- The bearing assembly retaining ring (2)
Fig 1: Pulley Rotor & Bearing Assembly Retaining Ring
Courtesy of GENERAL MOTORS CORP.

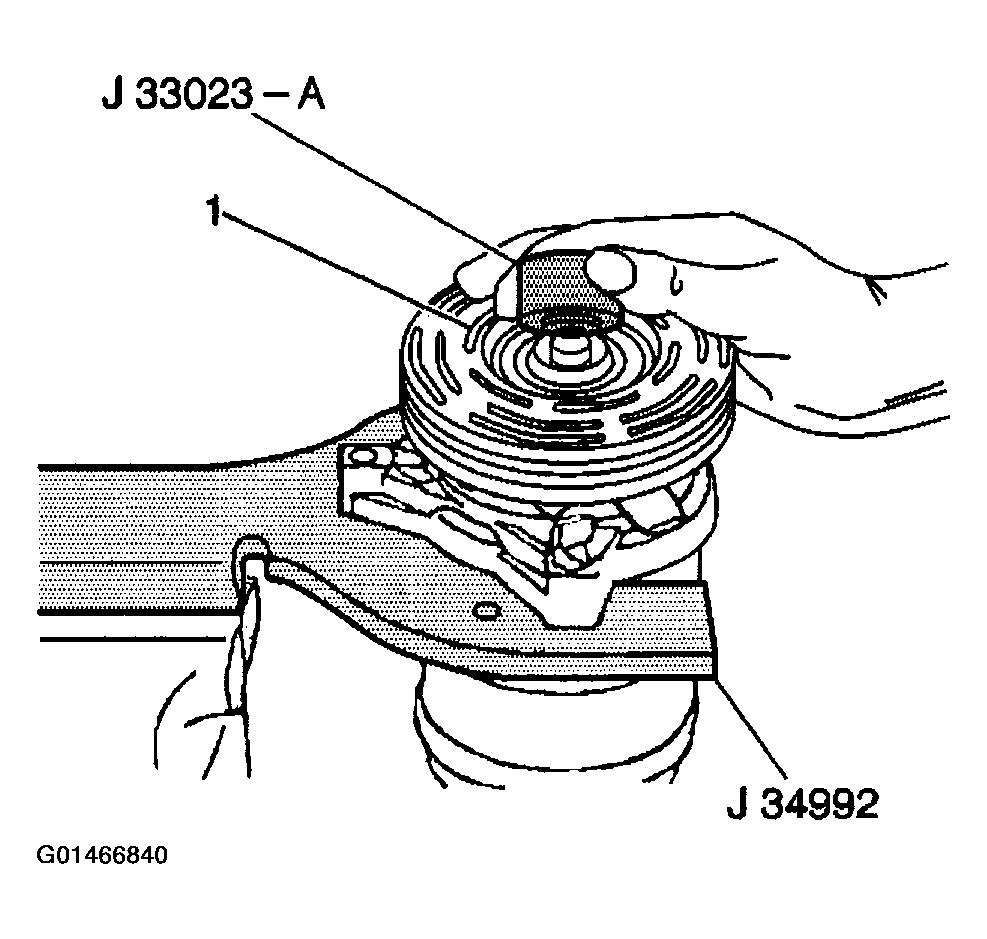

Install the J 33023-A to the front head.

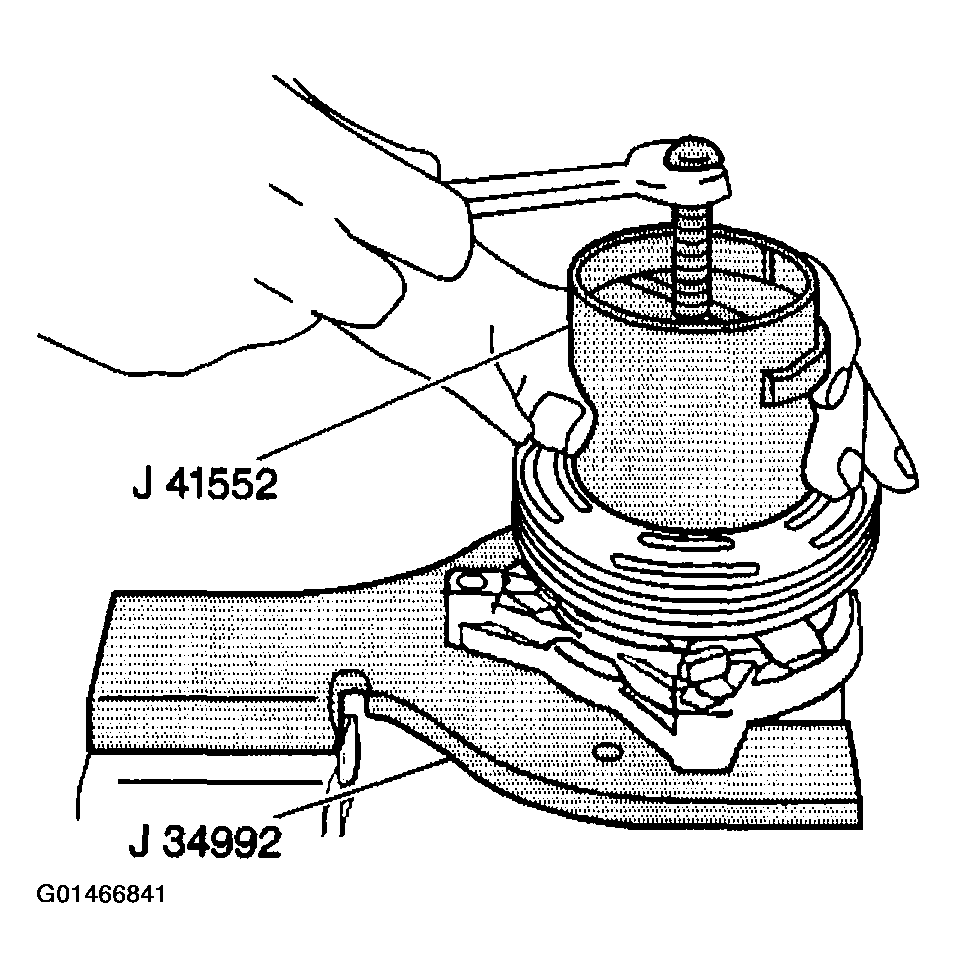

Install the J 41552 down into the inner circle of slots (1) in the rotor.

Fig 2: Installing J 41552 Down Into Inner Circle Of Slots In Rotor
Courtesy of GENERAL MOTORS CORP.
Turn the J 41552 clockwise in the slots in the rotor.
Perform the following steps in order to remove the pulley rotor and bearing assembly:
1. 6.1 Hold the J 41552 in position.
2. 6.2 Tighten the puller screw against the puller guide.
3. 6.3 Remove the pulley rotor and bearing assembly.
Fig 3: Pulley Rotor & Bearing Assembly
Courtesy of GENERAL MOTORS CORP.

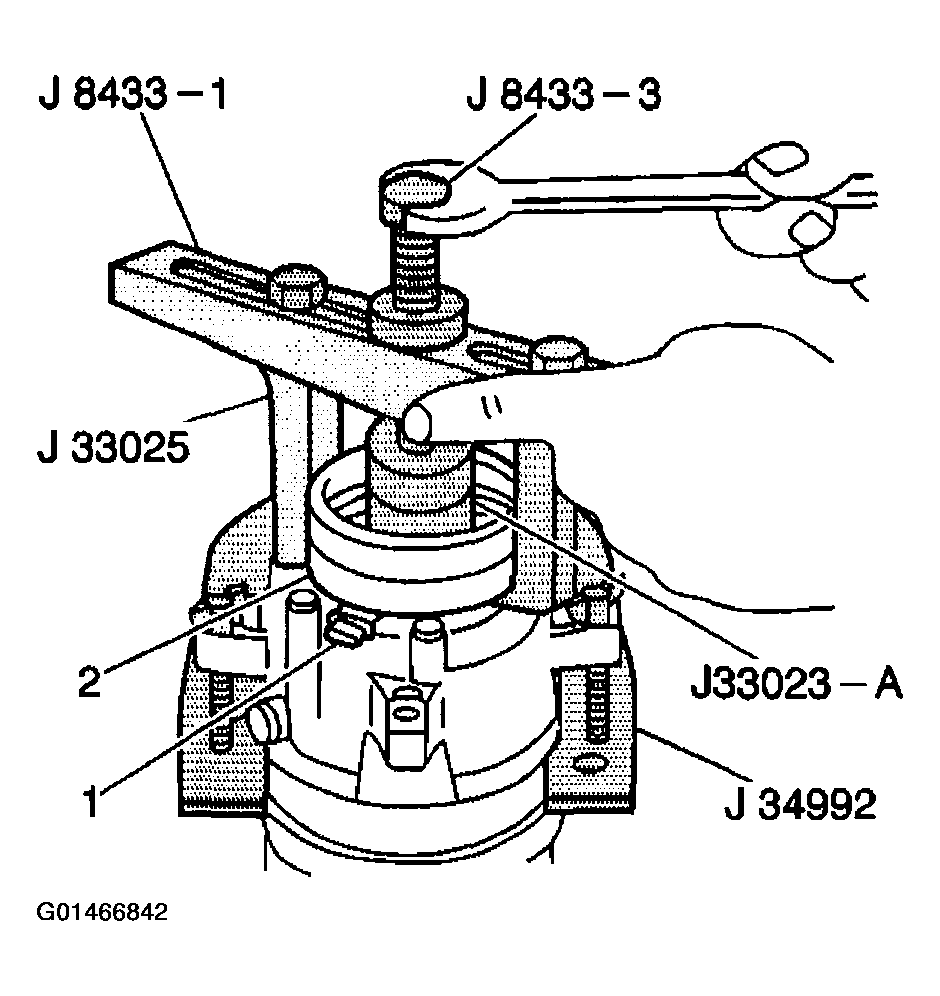

Mark the clutch coil terminal location (1) on the compressor front head. Refer to CLUTCH ROTOR AND/OR BEARING REMOVAL (HT6/HD6/HU6) or CLUTCH ROTOR AND/OR BEARING REMOVAL (V7 - DIRECT MOUNT) .
Install the J 33023-A on the front head of the compressor.
Install the J 8433-1 and the J 33025 .
Tighten the J 8433-3 against the puller pilot in order to remove the clutch coil (2).

Fig 4: Clutch Coil
Courtesy of GENERAL MOTORS CORP.
