Tools Required
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
- J 8433 A/C Compressor Pulley Puller
- J 8433-3 Forcing Screw
- J 33024 Clutch Coil Installer Adaptor
- J 33025 Clutch Coil Puller Legs
- J 41790 A/C Compressor Holding Fixture
- J 42136 A/C Lip Seal Remover

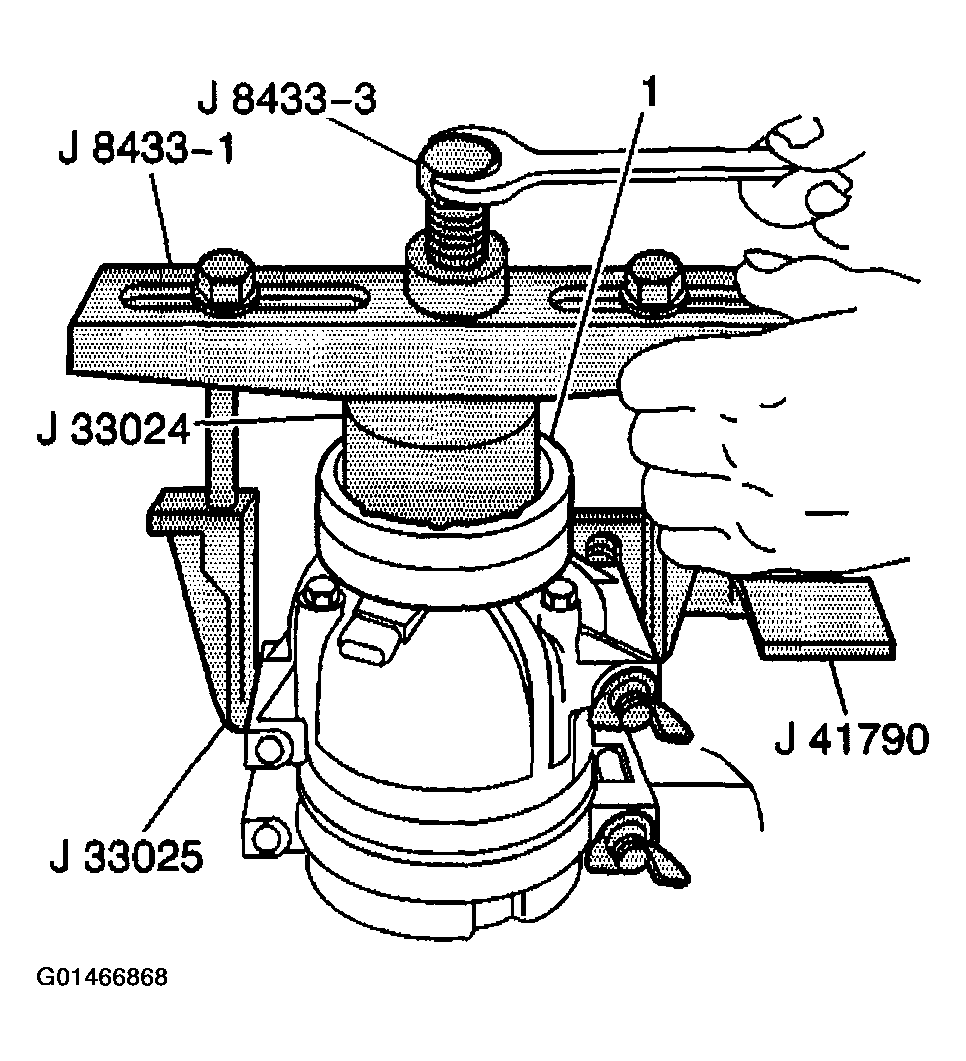

- Place the clutch coil assembly (1) on the front head with the clutch coil terminal positioned at the mark made during disassembly.
- Place the J 33024 over the internal opening of the clutch coil housing and align installer with the A/C compressor front head.
- Install the J 8433-3 into the J 8433 and center the screw in the countersunk center hole of the J 33024 .
- Install the 4 inch through bolts and washers from the J 42136 tool kit into the J 33025 and attach them to the A/C compressor mounting bosses.
- Turn the center forcing screw of the J 8433
to press the clutch coil onto the front head until the clutch coil is fully seated.
Make sure the clutch coil and the J 33024 stay in-line with each other while pressing the clutch coil onto the A/C compressor.
- Install the A/C compressor clutch rotor and bearing assembly. Refer to CLUTCH ROTOR AND/OR BEARING INSTALL (HT6/HD6/HU6) or CLUTCH ROTOR AND/OR BEARING INSTALL (V7 - DIRECT MOUNT) .
- Install the A/C compressor clutch plate and hub assembly. Refer to COMPRESSOR CLUTCH PLATE/HUB ASSEMBLY INSTALL (V7 - DIRECT MOUNT) or COMPRESSOR CLUTCH PLATE/HUB ASSEMBLY INSTALL (HT6/HD6/HU6) .
- Remove the A/C compressor from the J 41790 .
- Install the A/C compressor into the vehicle.
