Tools Required

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor from the vehicle.
  2. Clamp J 41790  in a vise and attach the A/C compressor to J 41790  .
    Fig 1: Removing A/C Compressor From Vehicle
    G01466835Courtesy of GENERAL MOTORS CORP.
  3. Remove the clutch plate and hub assembly. Refer to COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL (V7 - DIRECT MOUNT)  or COMPRESSOR CLUTCH PLATE AND HUB ASSEMBLY REMOVAL (HT6/HD6/HU6) .
  4. Using external snap ring pliers (1), remove the retaining ring (3) from the clutch rotor and bearing assembly.
    Fig 2: Removing Retaining Ring From Clutch Rotor & Bearing Assembly
    G01466836Courtesy of GENERAL MOTORS CORP.
  5. Place J 33023-A  on the clutch rotor.
    Fig 3: Placing J 33023-A On Clutch Rotor
    G01466837Courtesy of GENERAL MOTORS CORP.
  6. Install J 41552  down into the inner circle of slots in the rotor. Turn J 41552  clockwise in the slots to engage the puller tangs with the rotor.
  7. Hold J 41552  in place and use a wrench to turn the center forcing screw against J 33023-A  to remove the clutch rotor and bearing assembly.

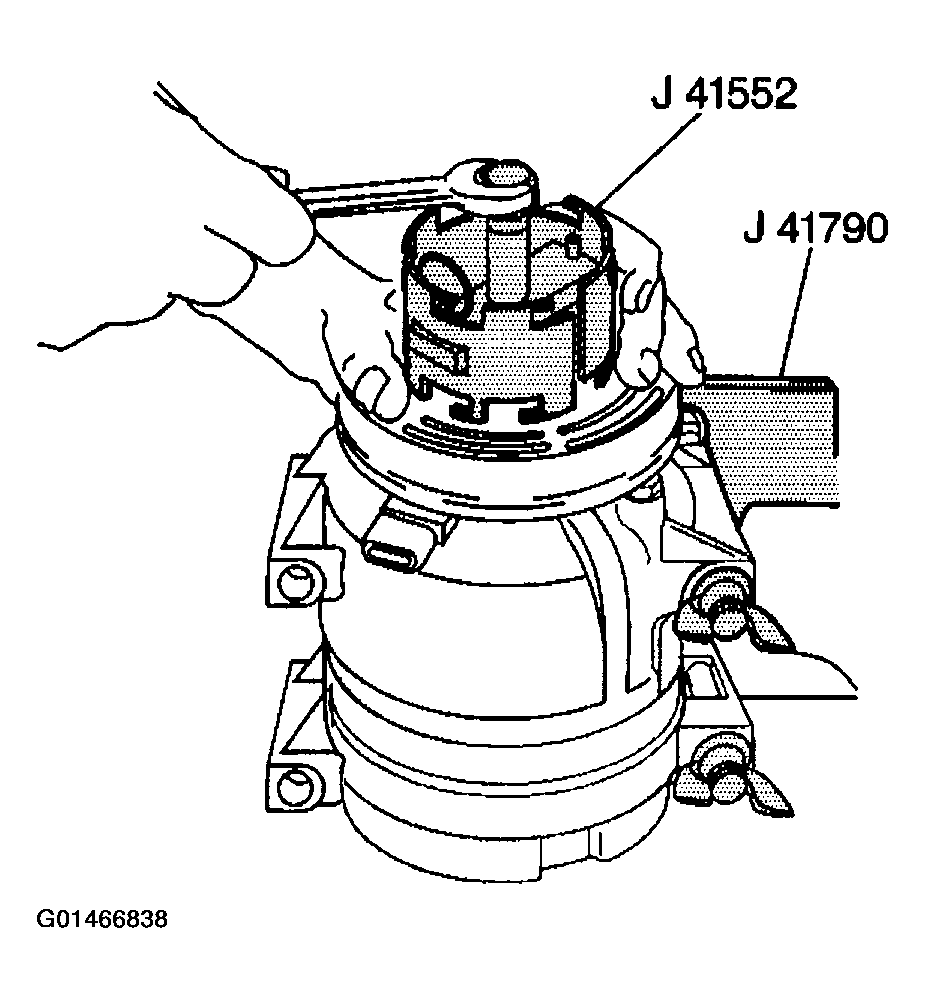

    Fig 4: Clutch Rotor & Bearing Assembly
    G01466838Courtesy of GENERAL MOTORS CORP.
