Blower Motor Resistor Assembly Replacement (C60): Notes
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not allow the metal coils of the blower resistor to become grounded to any metal surface. This may result in internal circuitry damage.
- Remove the A/C control relay bracket with the relay.
- Remove the blower resistor harness.
- Remove the stud from the IP, if necessary.
- Remove the blower motor resistor mounting screw.

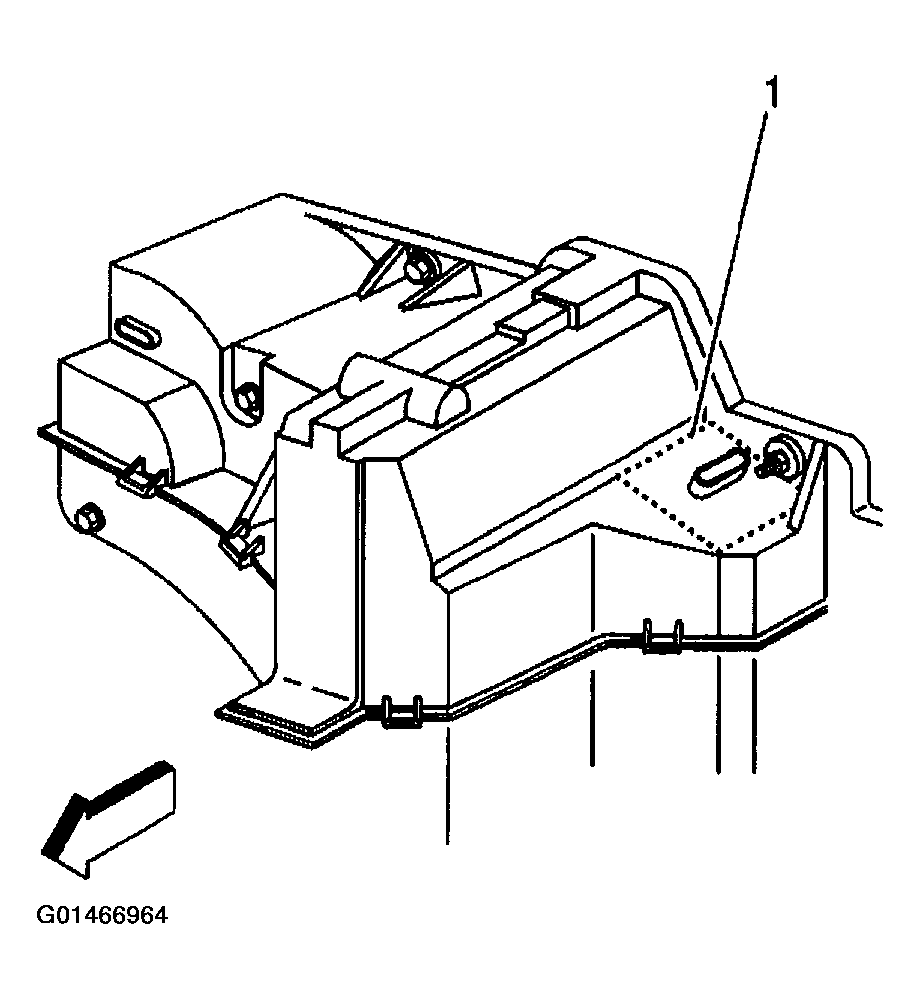

- Cut the access cover (1) from the case.
Cut all four sides of the cover in order to remove the three attaching screws. Use a sharp utility knife in order to cut the case. Make the cuts straight and clean. The access cover must be reinstalled and is visible to the customer.
- Remove the blower motor resistor assembly.
