Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor resistor mounting screw.

    Tighten

    Tighten the screw to 1.9 N.m (17 Ib. in).

  3. Utility only- Apply a bead of black weather-strip adhesive over the cut-line areas (1).
  4. Utility only- Allow the adhesive to set for 15 minutes, or until the adhesive skins over.
  5. Install the stud to the dash panel, if necessary.
  6. Install the resistor harness.
  7. Install the A/C relay bracket into the body.

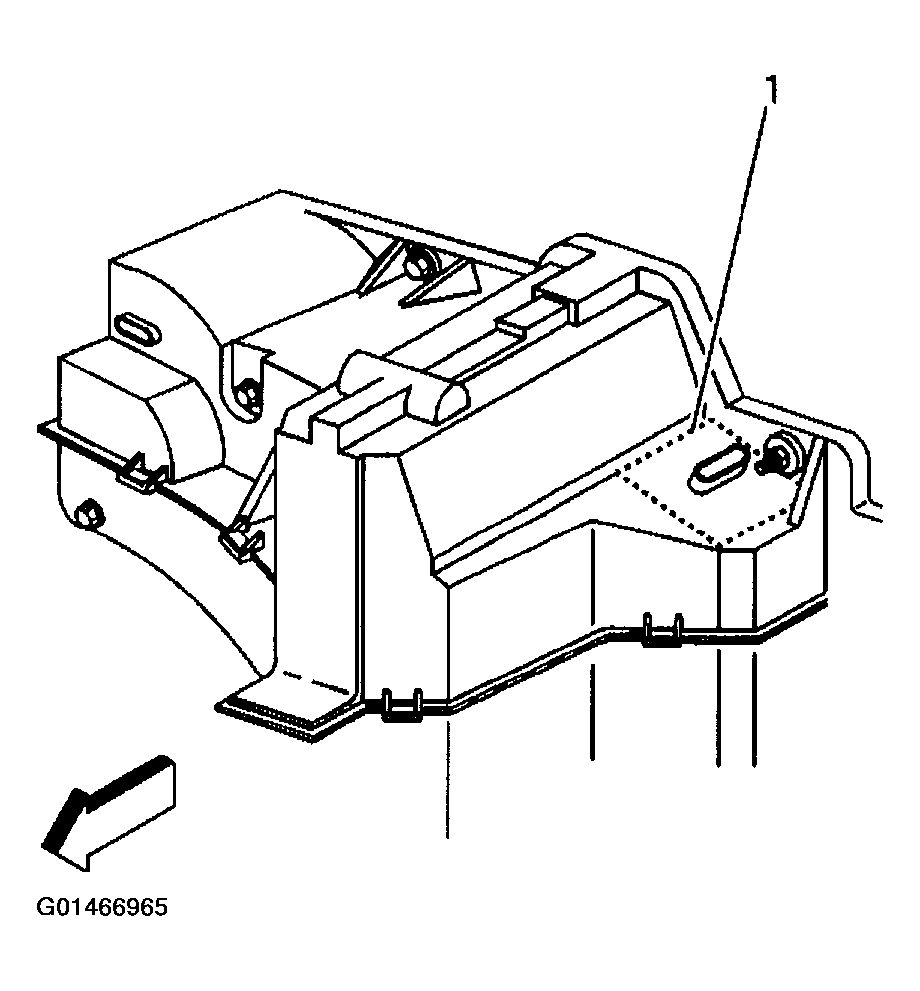

    Fig 1: Blower Motor Resistor Assembly
    G01466965Courtesy of GENERAL MOTORS CORP.
