Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor (2) to the blower case.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor resistor mounting screws (1).

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

  3. Connect the electrical connector (3).

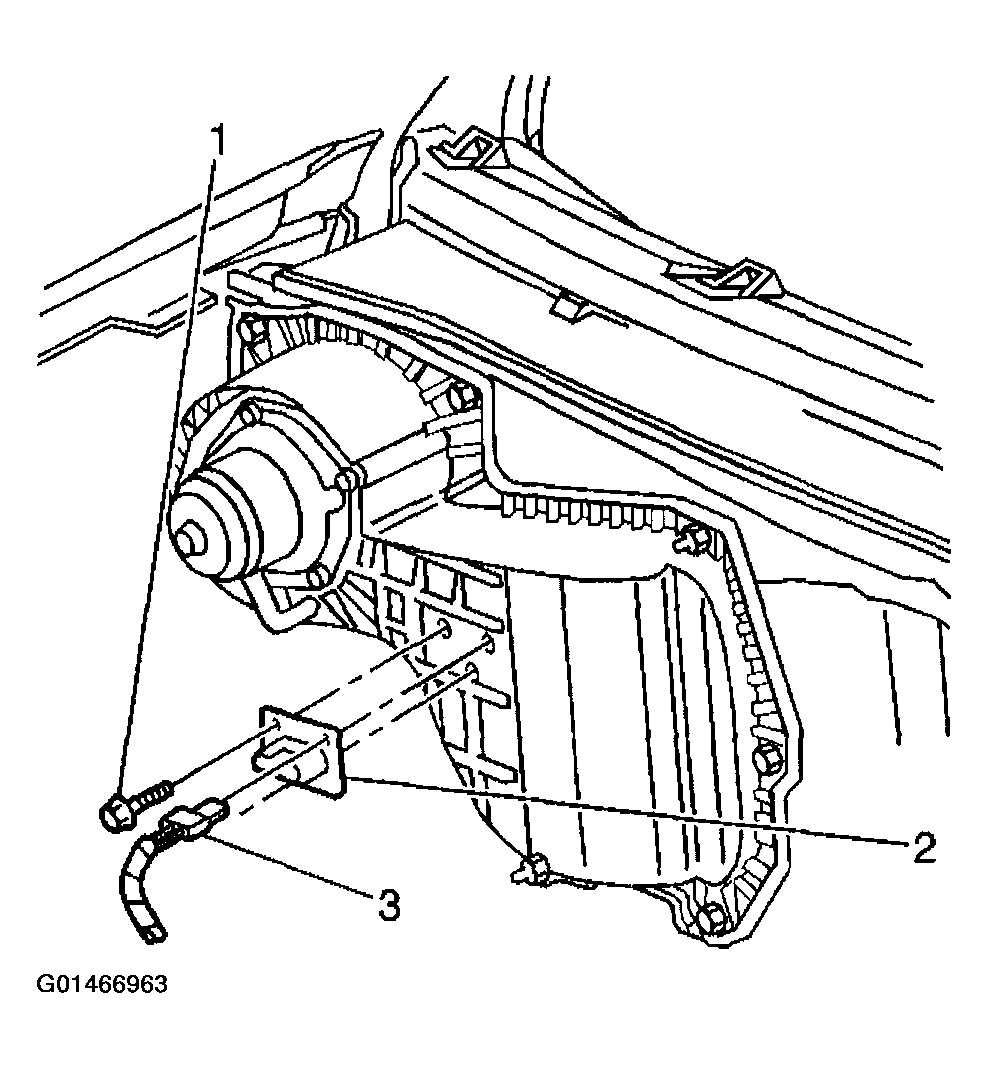

    Fig 1: Installing Blower Motor Resistor To Blower Case
    G01466963Courtesy of GENERAL MOTORS CORP.
