Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the blower motor relay (1) from the retaining bracket.
  3. Disconnect the electrical connector.
  4. Remove the blower motor relay.

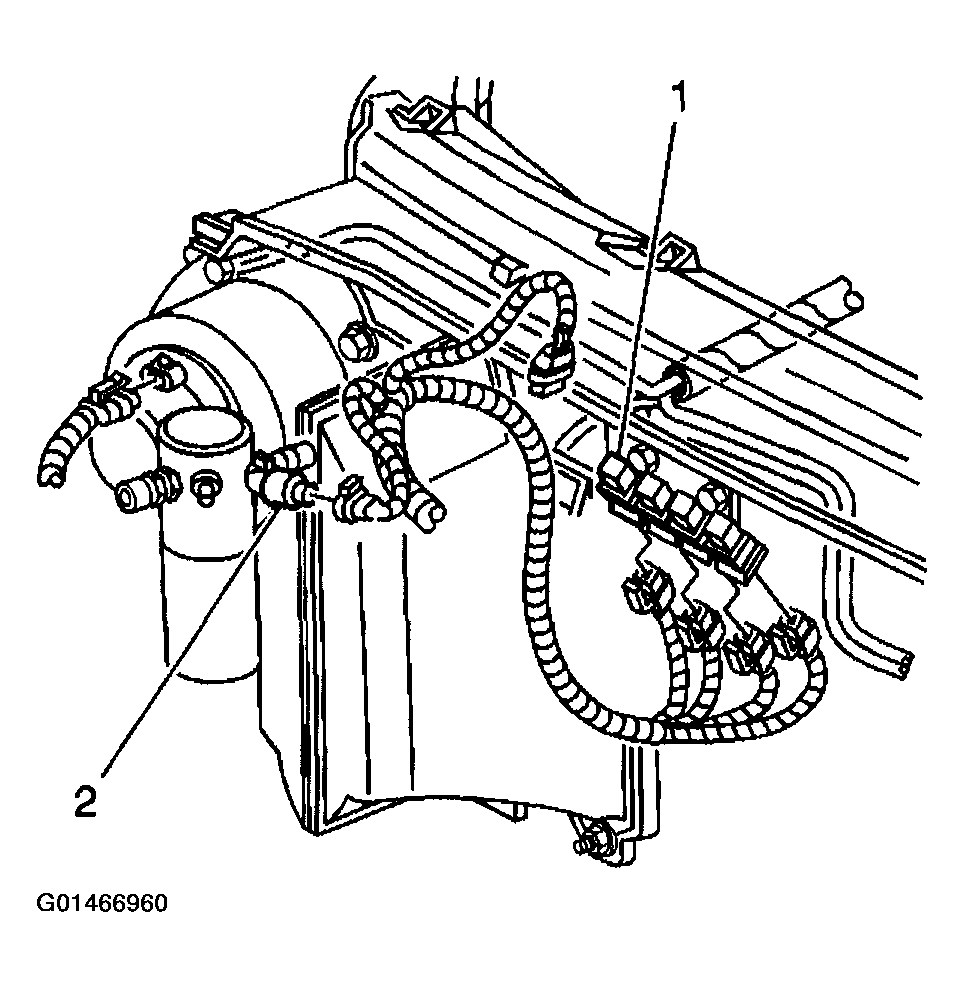

    Fig 1: Removing Blower Motor Relay From Retaining Bracket
    G01466960Courtesy of GENERAL MOTORS CORP.
