Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air temperature door (1) to the lower module half.
  2. Install the mode actuator.
  3. Install the actuator rod to the mode actuator.
  4. Install the mode actuator retaining clip.
  5. Connect the vacuum harness to the mode actuator.
  6. Install the air temperature actuator to the module. Ensure the actuator is seated on the locating tab.

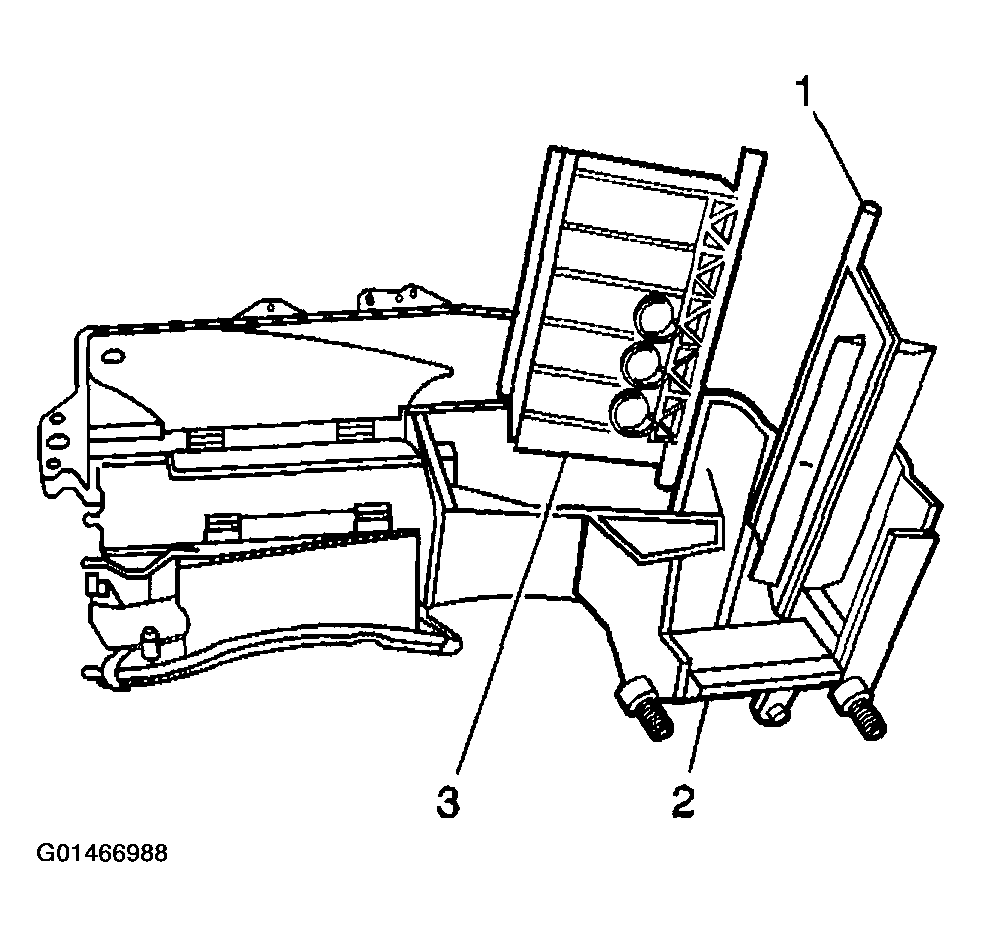

    Fig 1: Installing Air Temperature Door To Lower Module Half
    G01466988Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  7. Install the air temperature actuator screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

  8. Connect the air temperature actuator electrical connector.
  9. Install the screws in order to seal the heater/vent module halves.

    Tighten

    Tighten the screws to 4.5 N.m (40 Ib. in).

  10. Install the heater/vent module. Refer to HEATER/VENT MODULE REPLACEMENT .

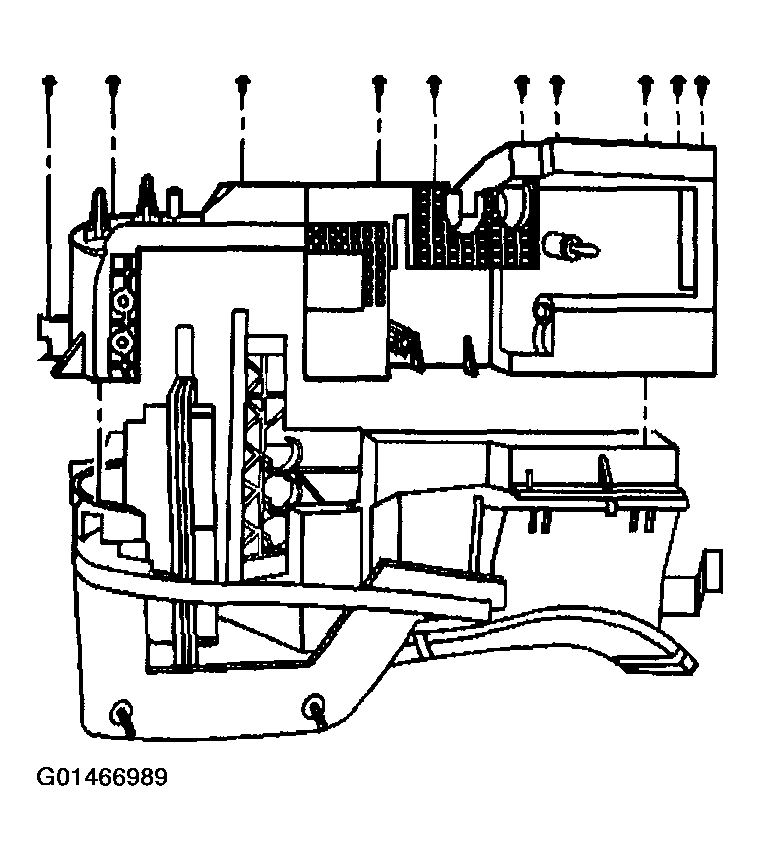

    Fig 2: Air Temperature Actuator Screws
    G01466989Courtesy of GENERAL MOTORS CORP.
  11. Evacuate and recharge the A/C system. Refer to REFRIGERANT RECOVERY AND RECHARGING .
  12. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
