Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .
  2. Remove the air distribution duct. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT  in Heating, Ventilation, and Air Conditioning.
  3. Remove the screw (1) securing the air outlet assembly to the instrument panel carrier.

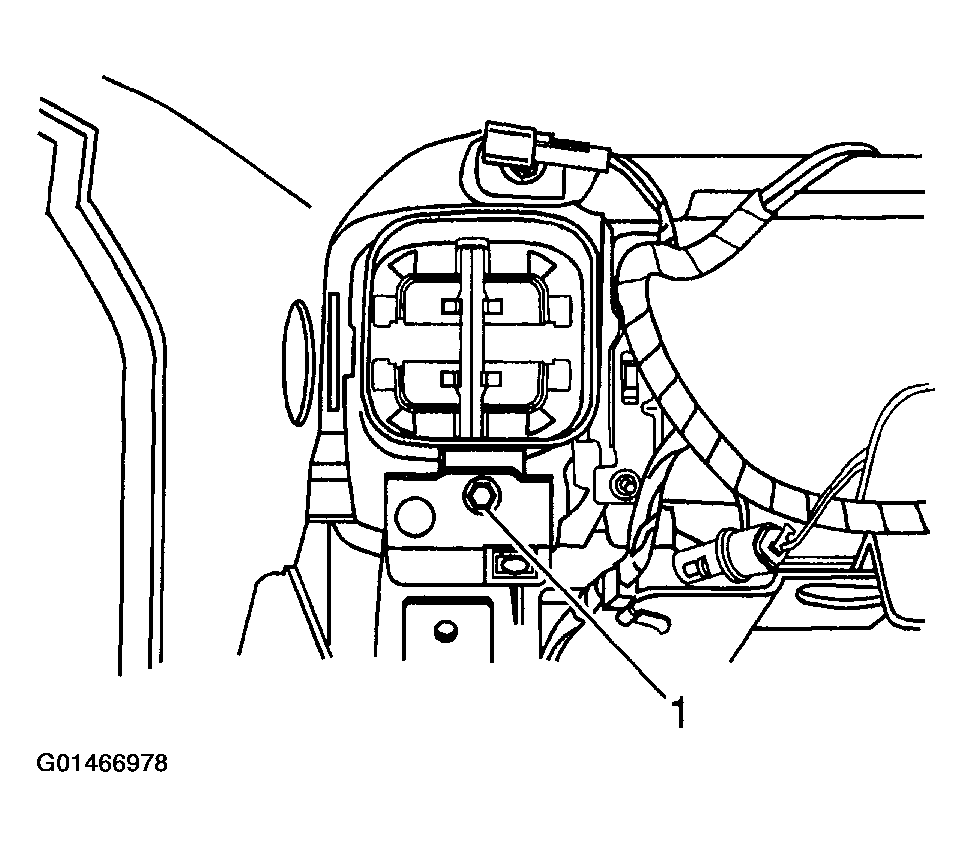

    Fig 1: Removing Screw Securing Air Outlet Assembly To Instrument Panel Carrier
    G01466978Courtesy of GENERAL MOTORS CORP.
  4. Remove the air outlet assembly from the instrument panel carrier.

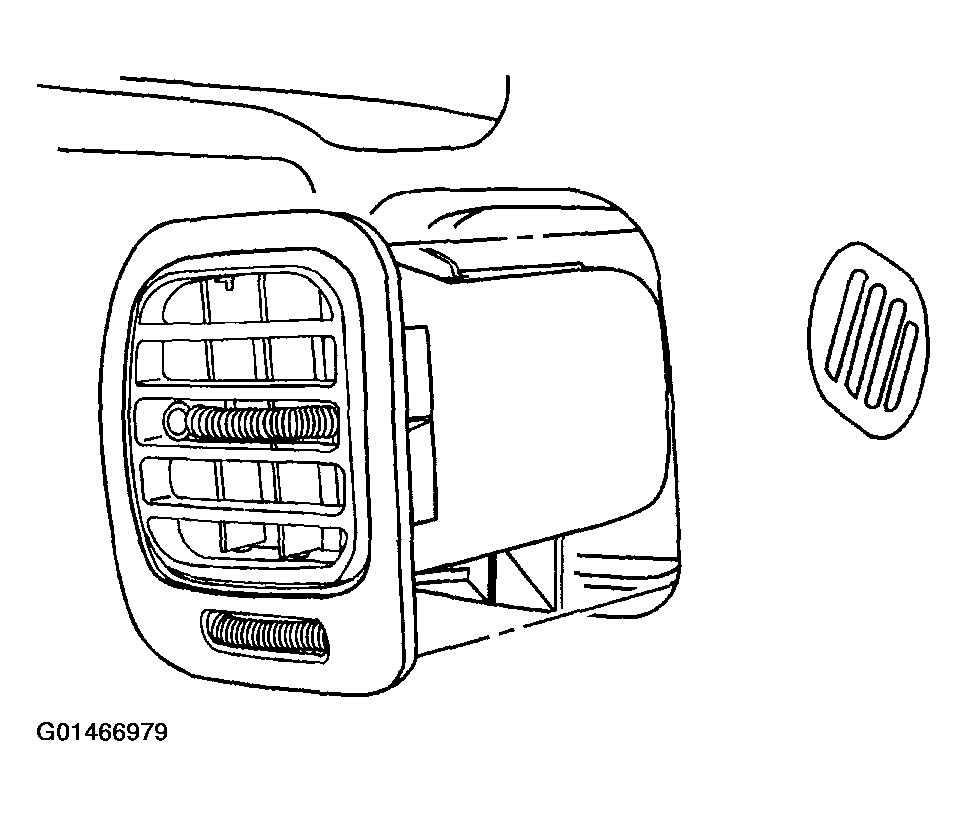

    Fig 2: Removing Air Outlet Assembly From Instrument Panel Carrier
    G01466979Courtesy of GENERAL MOTORS CORP.
