Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air outlet assembly into the instrument panel carrier.

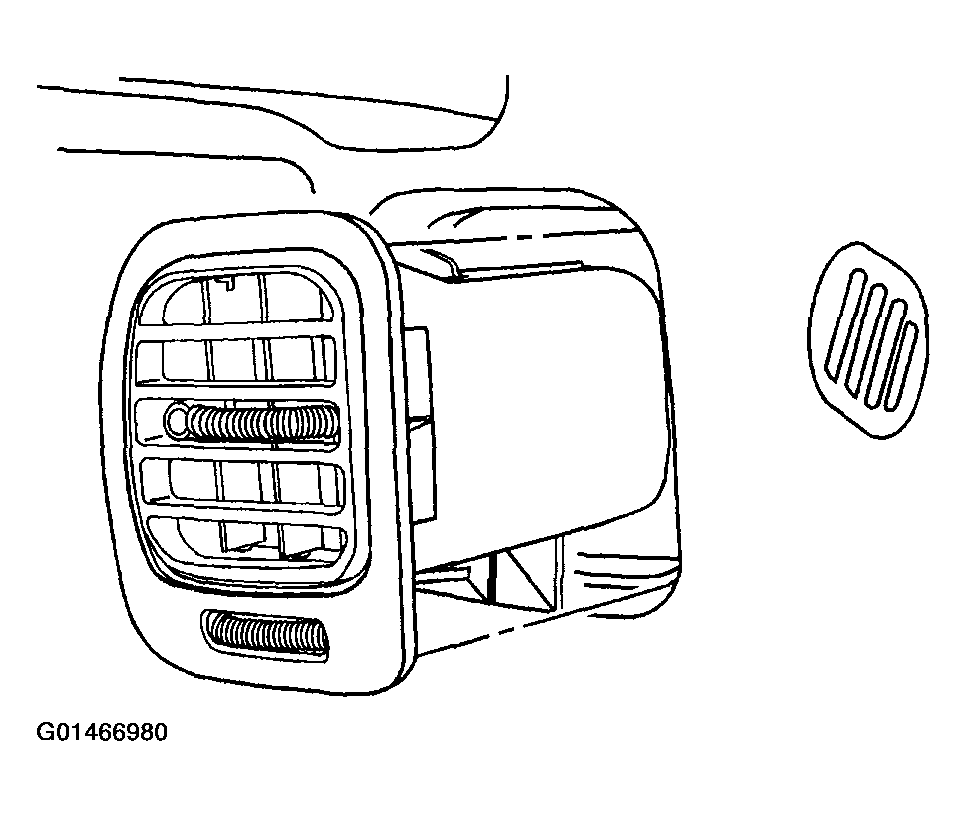

    Fig 1: Installing Air Outlet Assembly Into Instrument Panel Carrier
    G01466980Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the screw (1) securing the air outlet assembly to the instrument panel carrier.

    Tighten

    Tighten the air outlet assembly screw to 1.9 N.m (17 Ib. in).

  3. Install the air distribution duct. Refer to AIR DISTRIBUTOR DUCT REPLACEMENT  in Heating, Ventilation, and Air Conditioning.
  4. Install the Instrument panel carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT .

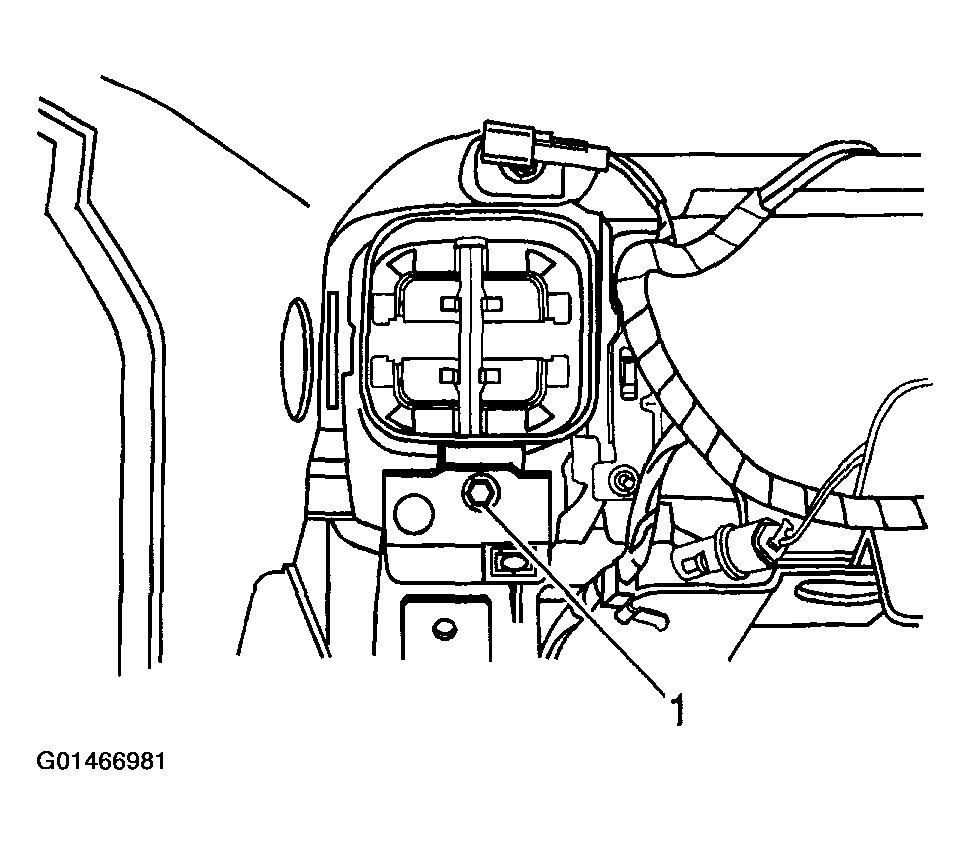

    Fig 2: Installing Screw Securing Air Outlet Assembly To Instrument Panel Carrier
    G01466981Courtesy of GENERAL MOTORS CORP.
