Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the heater/vent module. Refer to HEATER/VENT MODULE REPLACEMENT  .
  2. Remove the floor air outlet screws.
  3. Remove the floor air outlet from the heater/vent module.

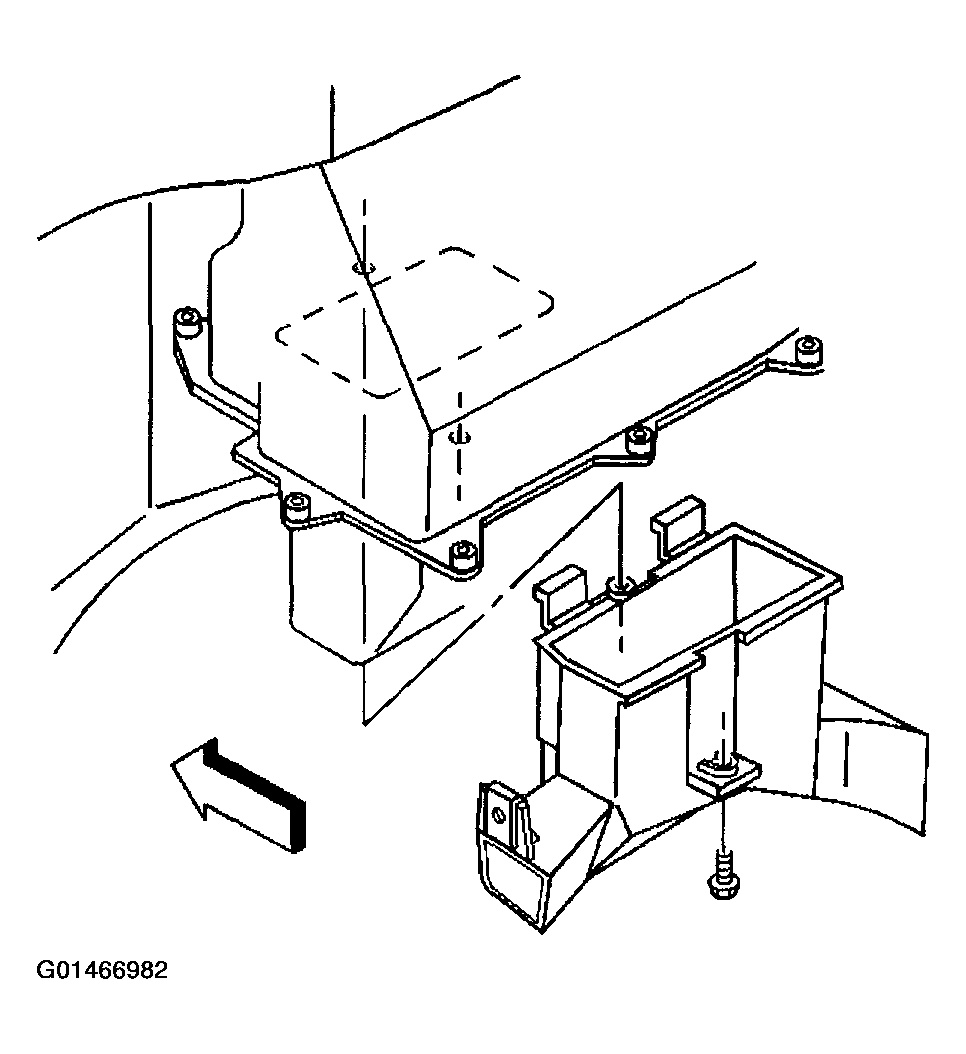

    Fig 1: Removing Floor Air Outlet From Heater/Vent Module
    G01466982Courtesy of GENERAL MOTORS CORP.
