Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.
  2. Remove the driver side air distributor duct screws.

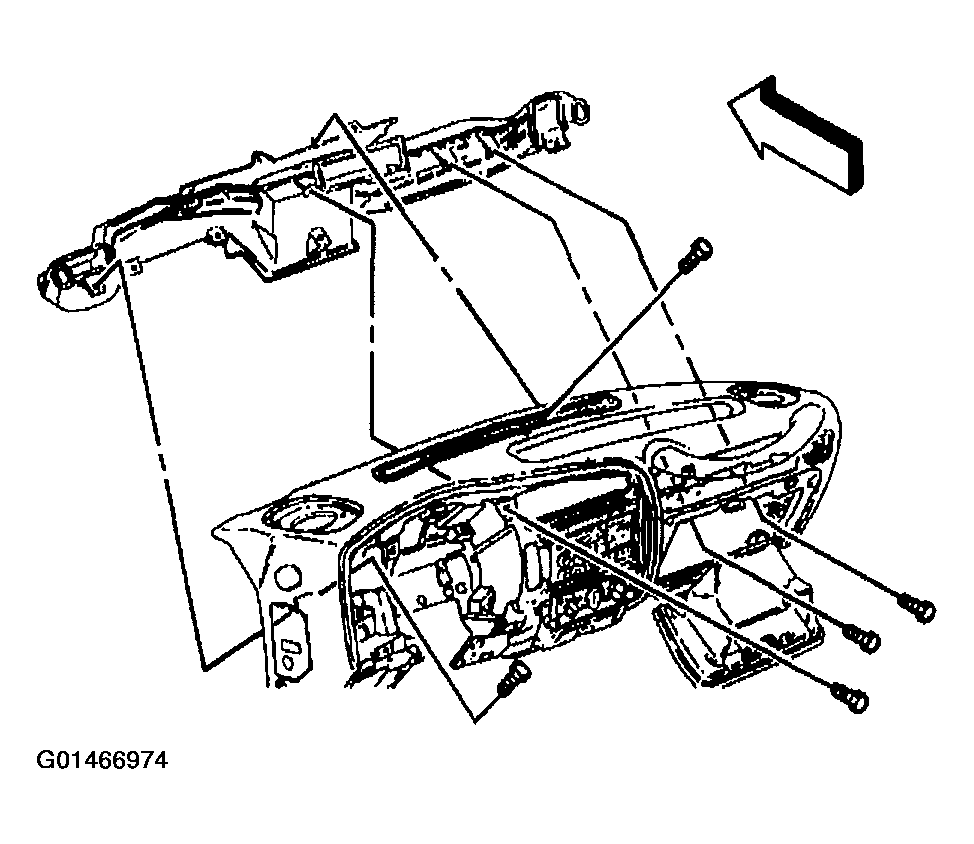

    Fig 1: Driver Side Air Distributor Duct Screws
    G01466974Courtesy of GENERAL MOTORS CORP.
  3. Remove the cowl side air distributor duct screws.
  4. Remove the air distributor duct from the instrument panel.

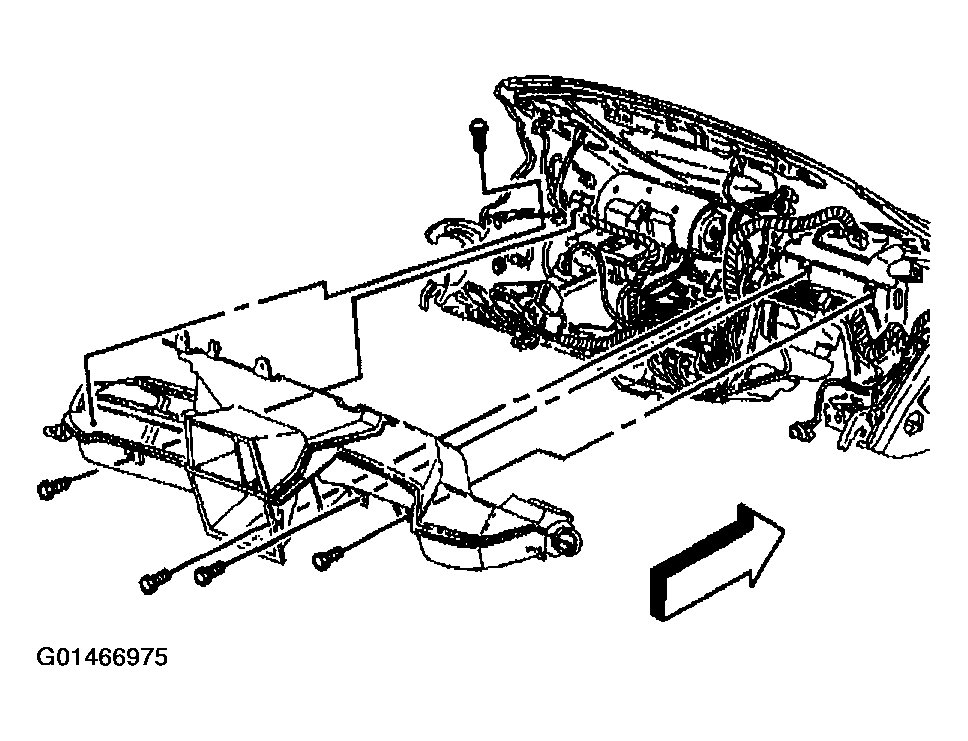

    Fig 2: Removing Air Distributor Duct From Instrument Panel
    G01466975Courtesy of GENERAL MOTORS CORP.
