Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air distributor duct to the instrument panel.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cowl side air distributor duct screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

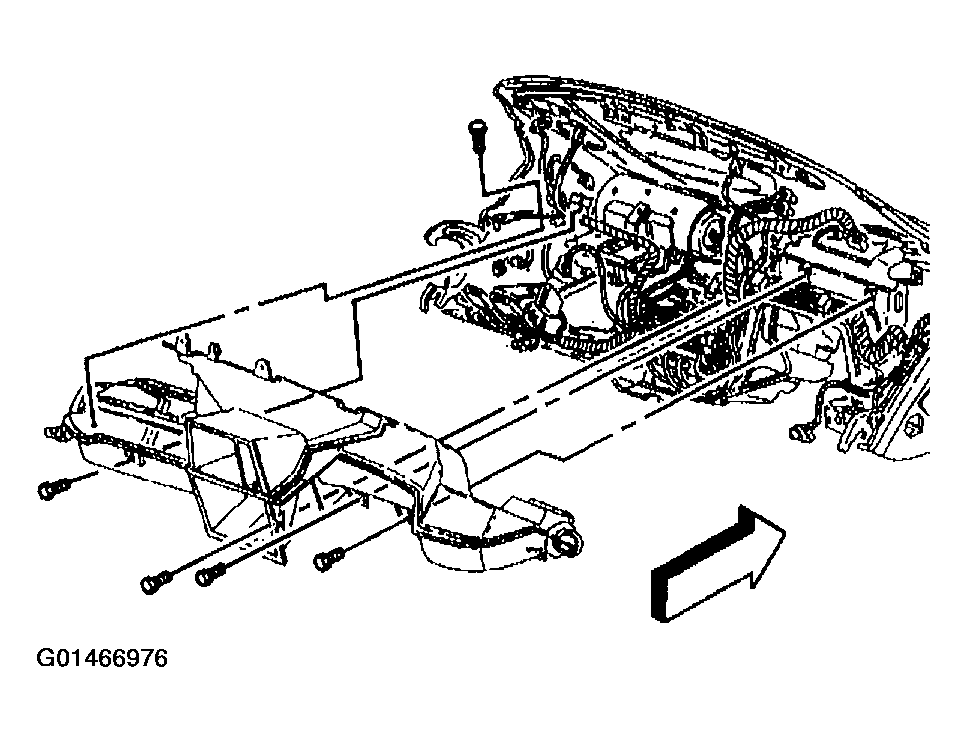

    Fig 1: Installing Air Distributor Duct To Instrument Panel
    G01466976Courtesy of GENERAL MOTORS CORP.
  3. Install the driver side air distributor duct screws.

    Tighten

    Tighten the screws to 1.9 N.m (17 Ib. in).

  4. Install the instrument panel. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT in Instrument Panel, Gages and Console.

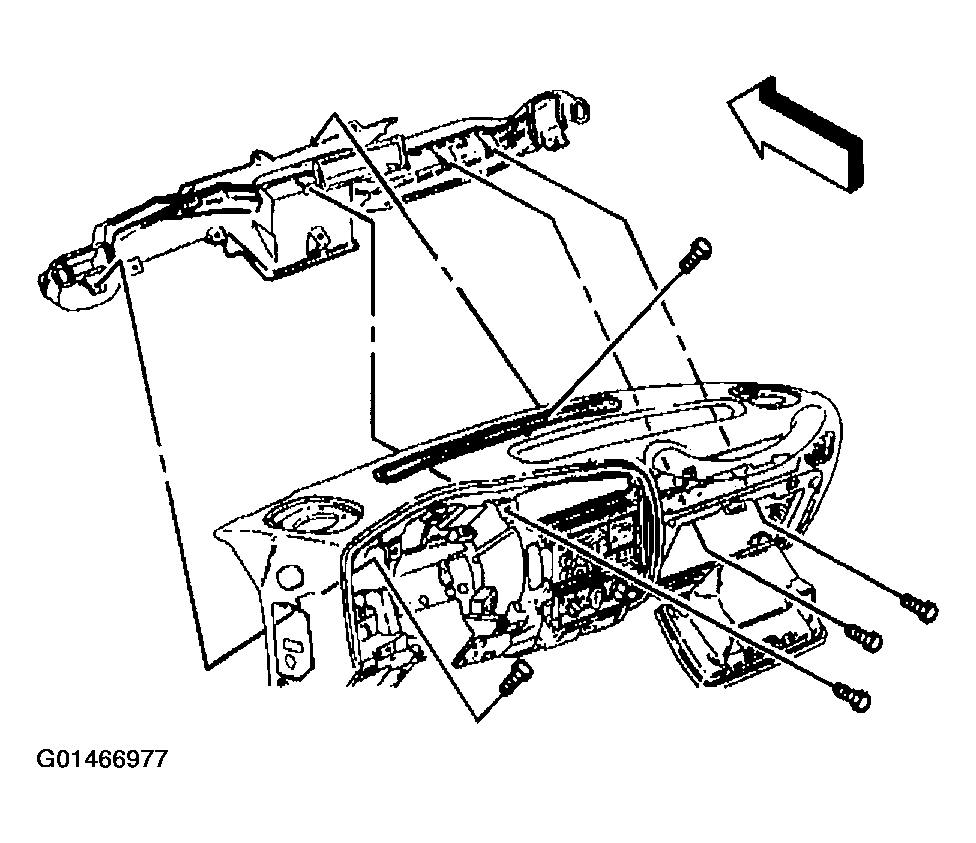

    Fig 2: Driver Side Air Distributor Duct Screws
    G01466977Courtesy of GENERAL MOTORS CORP.
