Heating Performance Diagnostic

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

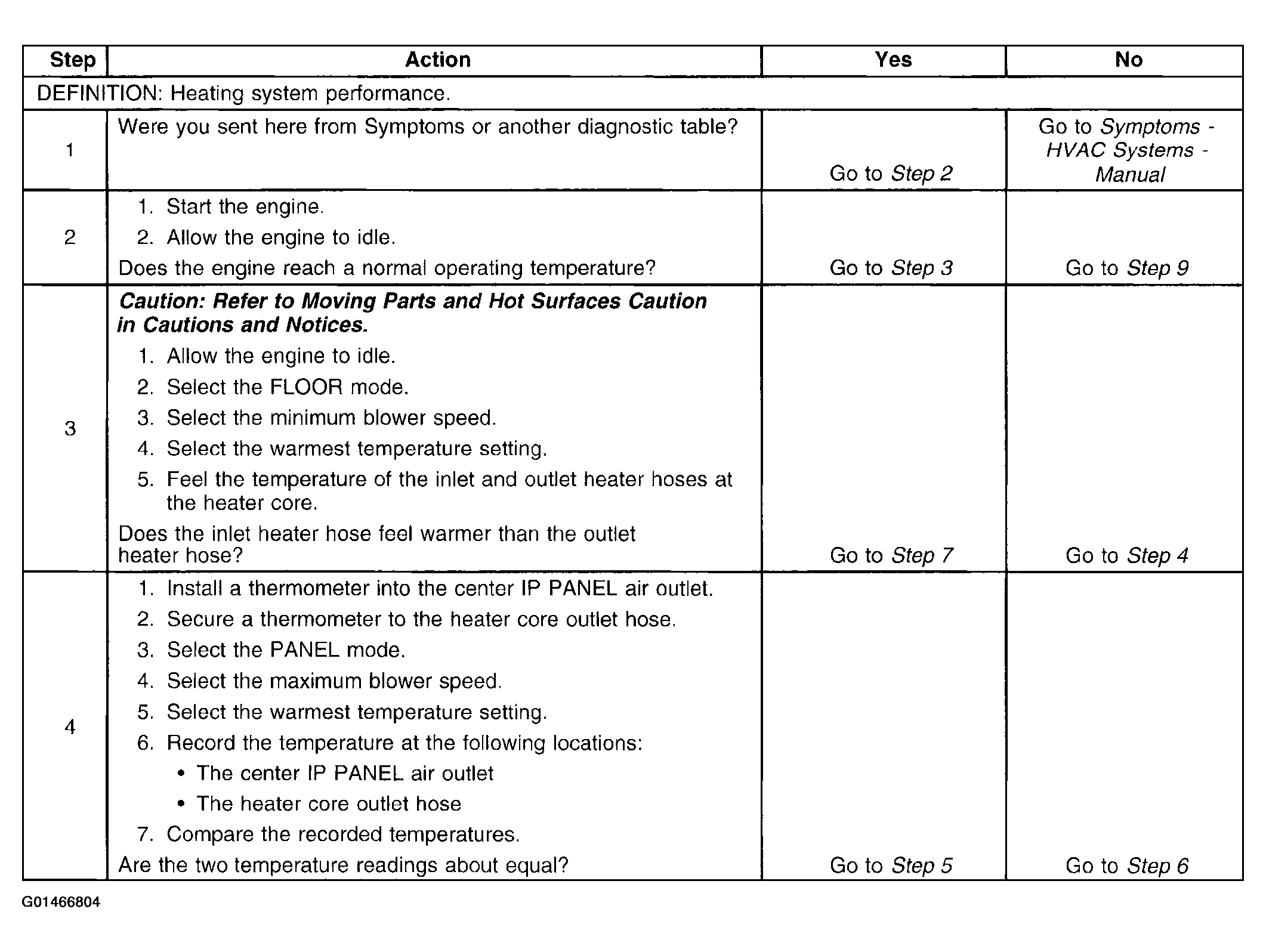

Fig 1: Heating Performance Diagnostic (1 Of 2)
G01466804Courtesy of GENERAL MOTORS CORP.

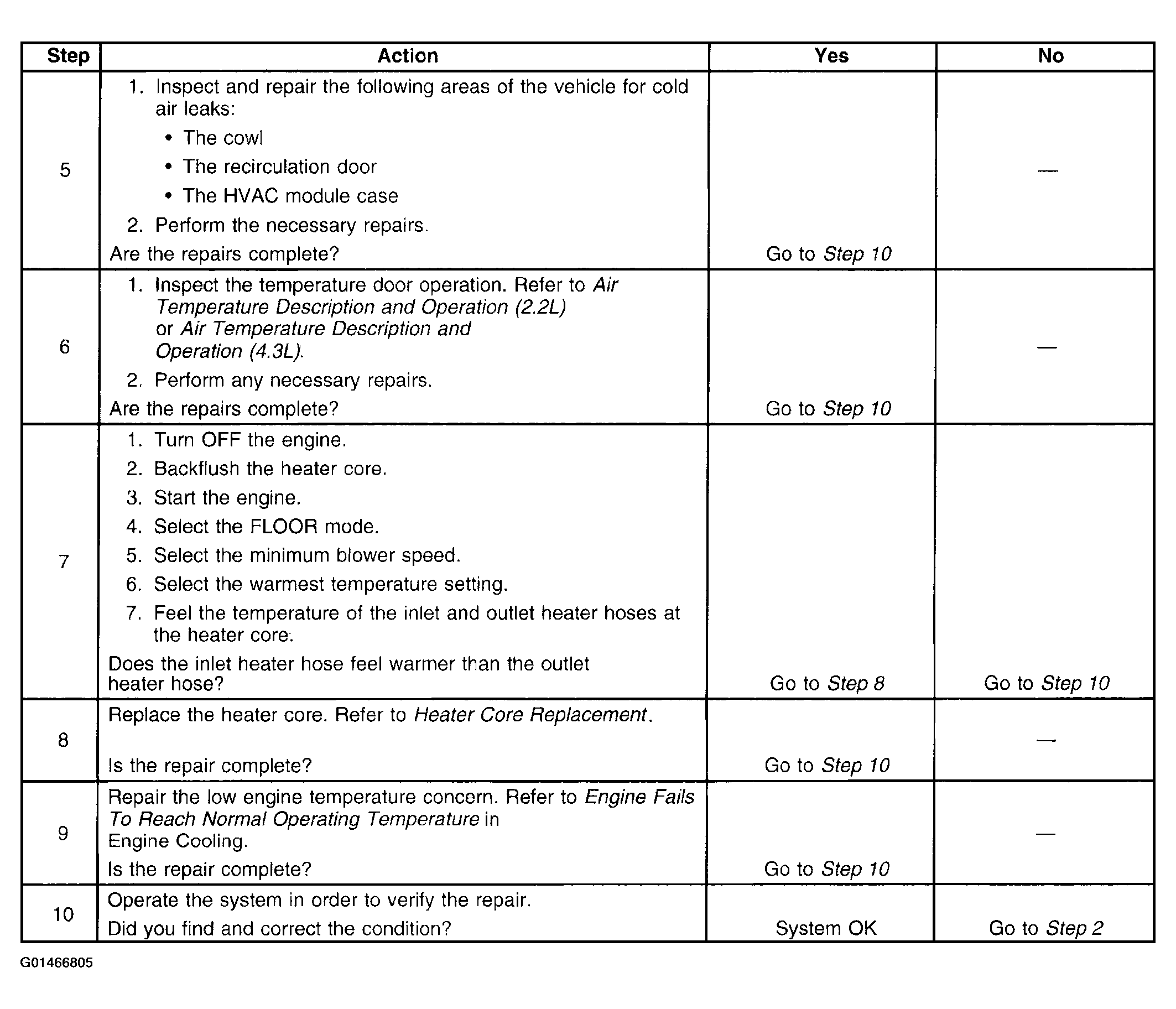

Fig 2: Heating Performance Diagnostic (2 Of 2)
G01466805Courtesy of GENERAL MOTORS CORP.
