Symptom List

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

• DIAGNOSTIC STARTING POINT -- VIBRATION DIAGNOSIS AND CORRECTION
• DIAGNOSTIC STARTING POINT - TRANSFER CASE
• DIAGNOSTIC STARTING POINT -- REAR DIFFERENTIAL CARRIER
• TROUBLE SHOOTING
• Noisy In Drive, see Fig 1
• Noisy When Coasting, see Fig 3
• Intermittent Noise, see Fig 4
• Constant Noise, see Fig 5
• Transfer Case Leak Diagnosis, see Fig 6

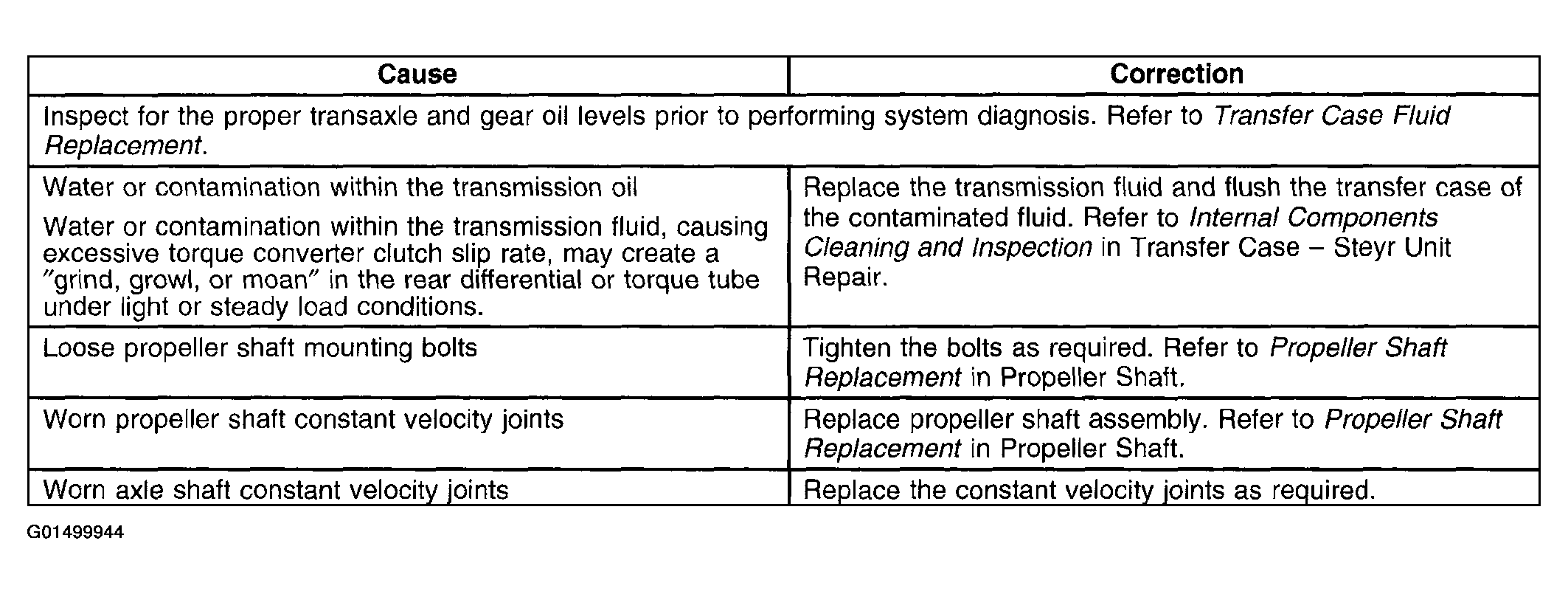

Fig 1: Noisy In Drive - Troubleshooting (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

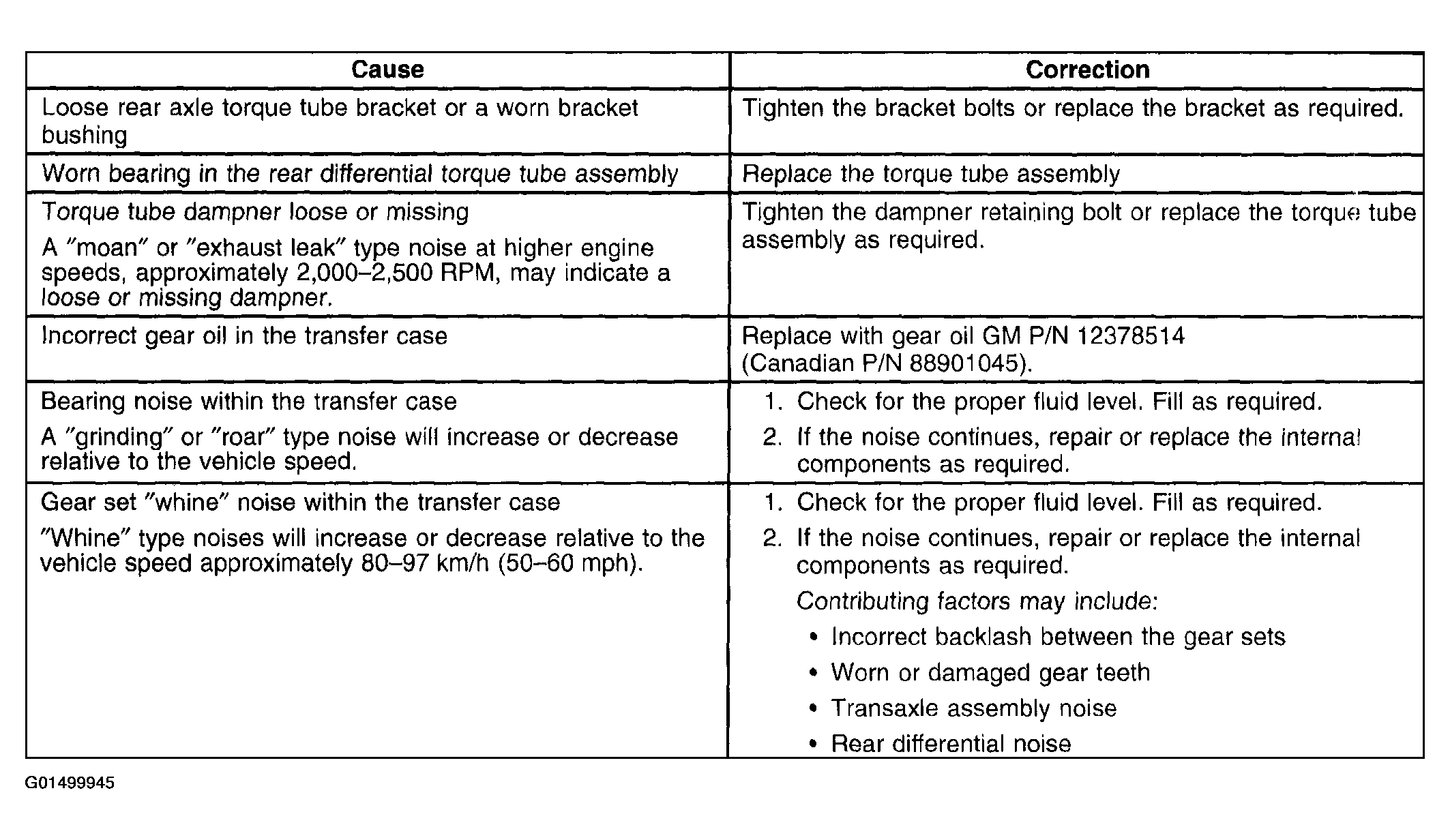

Fig 2: Noisy In Drive - Troubleshooting (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

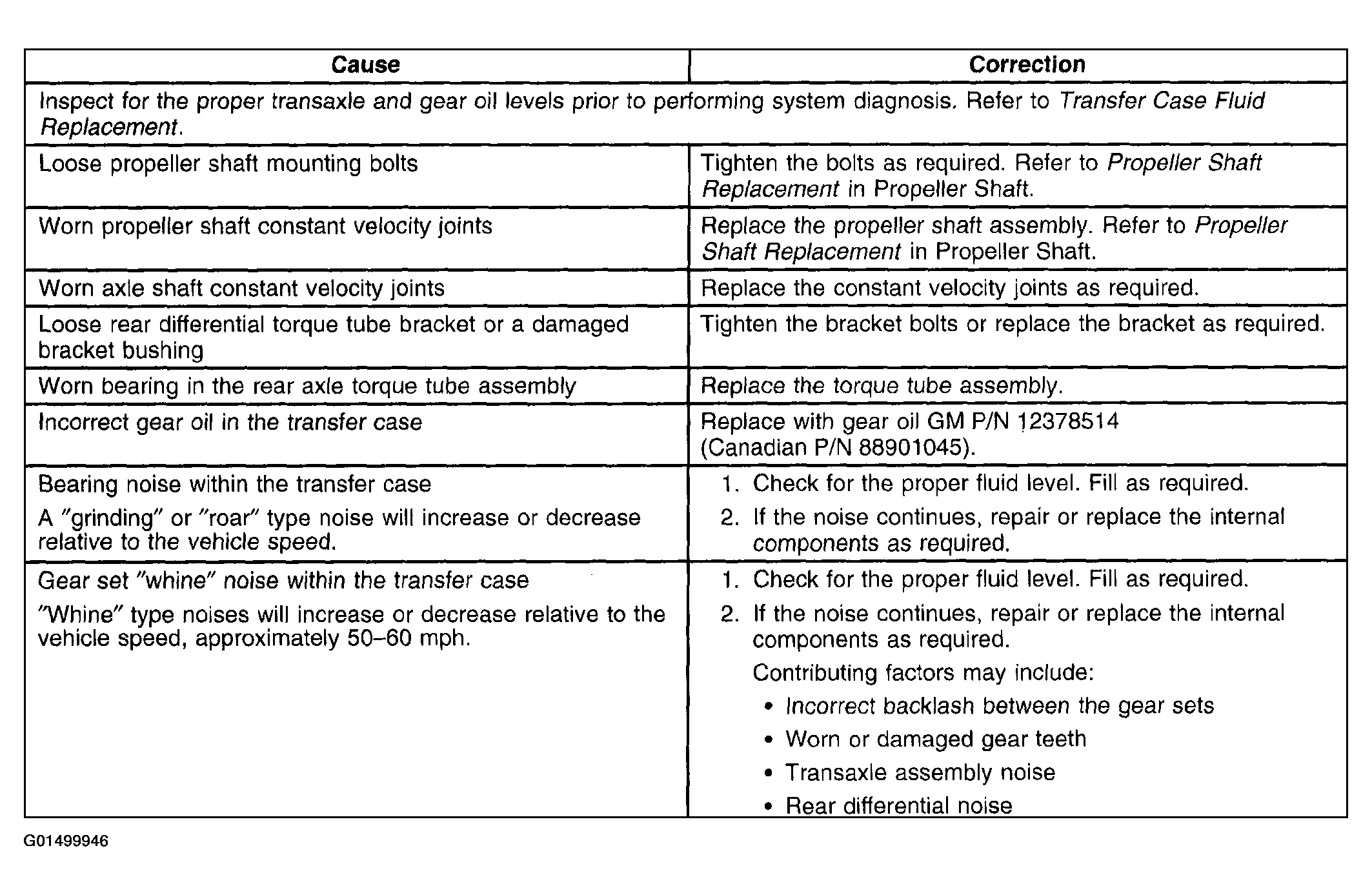

Fig 3: Noisy When Coasting - Troubleshooting

Courtesy of GENERAL MOTORS CORP.

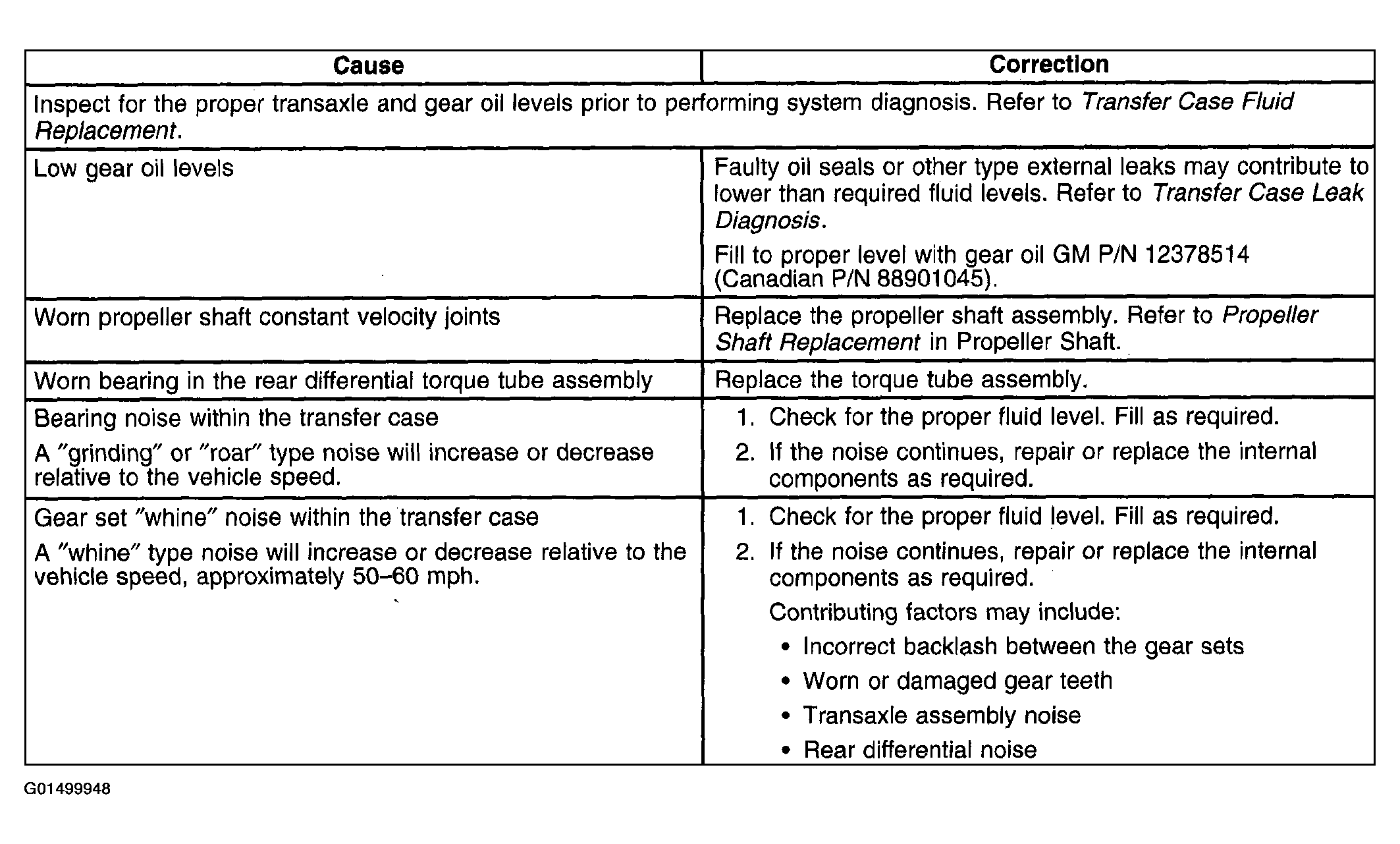

Fig 4: Intermittent Noise - Troubleshooting

Courtesy of GENERAL MOTORS CORP.

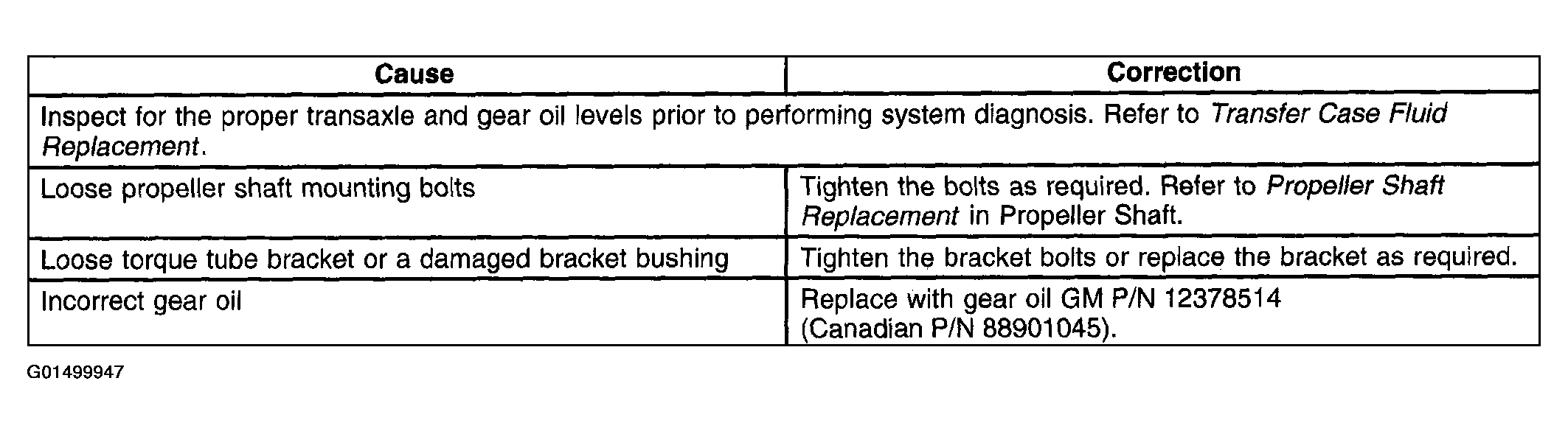

Fig 5: Constant Noise - Troubleshooting

Courtesy of GENERAL MOTORS CORP.

Fig 6: Transfer Case Leak Diagnosis - Troubleshooting

Courtesy of GENERAL MOTORS CORP.
