Removal Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to SIR CAUTION
in Cautions and Notices.
- Disable the SIR system. Refer to ZONE 3 in SIR.
- Remove the turn signal cancel cam and upper bearing thrust washer. Refer to TURN SIGNAL CANCEL CAM AND UPPER BEARING THRUST WASHER .
- Remove the turn signal and multifunction switch assembly only. Refer to MULTIFUNCTION, TURN SIGNAL SWITCH REPLACEMENT .

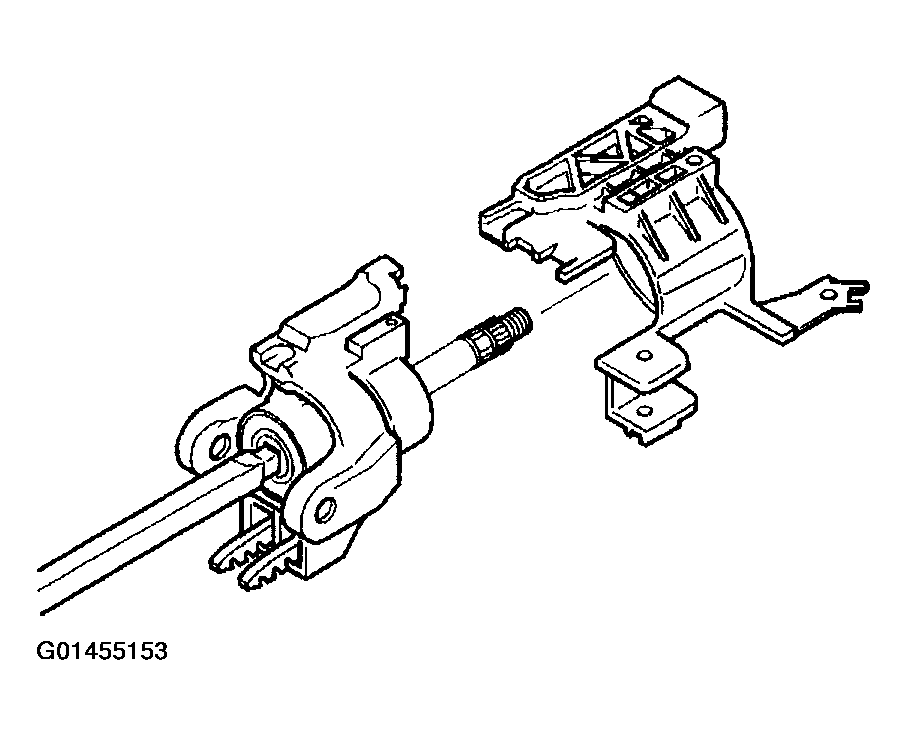

- Slide the turn signal switch housing off of the steering column shaft assembly.
Courtesy of GENERAL MOTORS CORP.
Important: Let the SIR coil hang freely after removal.
- Remove the SIR coil. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) in SIR.

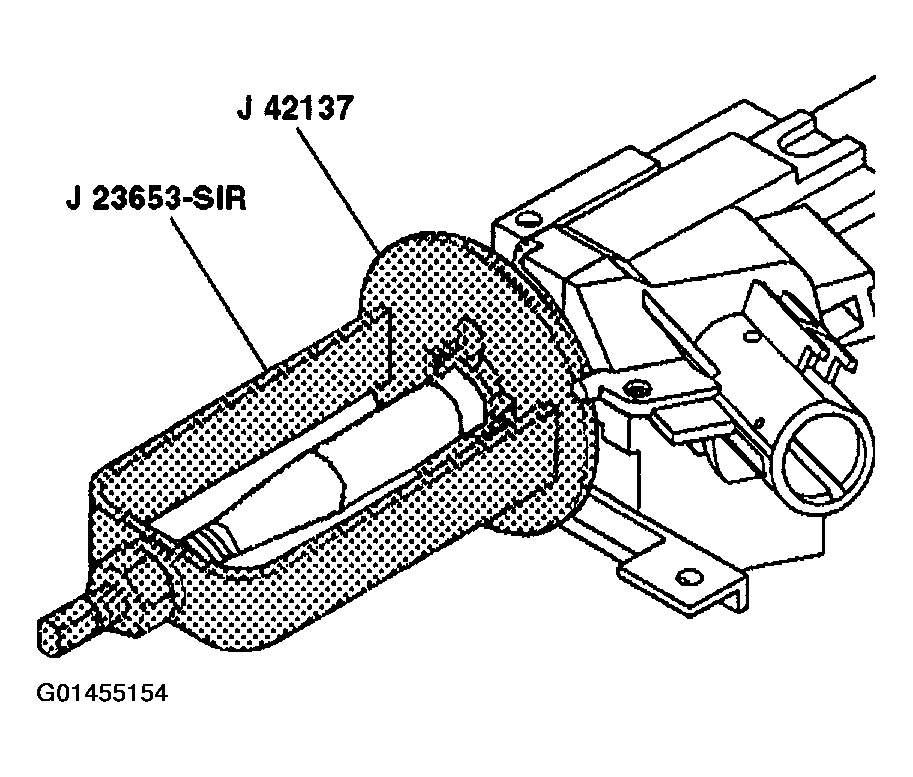

- Compress the cam orientation plate using J 23653-SIR and J 42137 .
- Remove the bearing retainer using J 23653-SIR and J 42137 from the steering column shaft assembly.
- Remove J 23653-SIR and J 42137 from the steering column shaft assembly.
- Discard the bearing retainer.
- Remove the following parts from the steering column shaft assembly:
- The cam orientation plate (5)
- The turn signal cancel cam assembly (4)
- The upper bearing spring (3)
- The upper bearing inner race seat (2)
- The inner race (1)
- Remove the tilt head housing and steering shaft as an assembly. Refer to LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (COLUMN SHIFT LEAN SHAFT) or LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (FLOOR SHIFT LEAN SHAFT) or LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (COLUMN SHIFT STANDARD) or LOWER BEARING AND STEERING COLUMN JACKET REPLACEMENT (FLOOR SHIFT STANDARD) .
- Remove the tilt head from the steering shaft.
