Removal & Installation (Driver-side)
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See ZONE 3 under DISABLING & ACTIVATING AIR BAG SYSTEM.

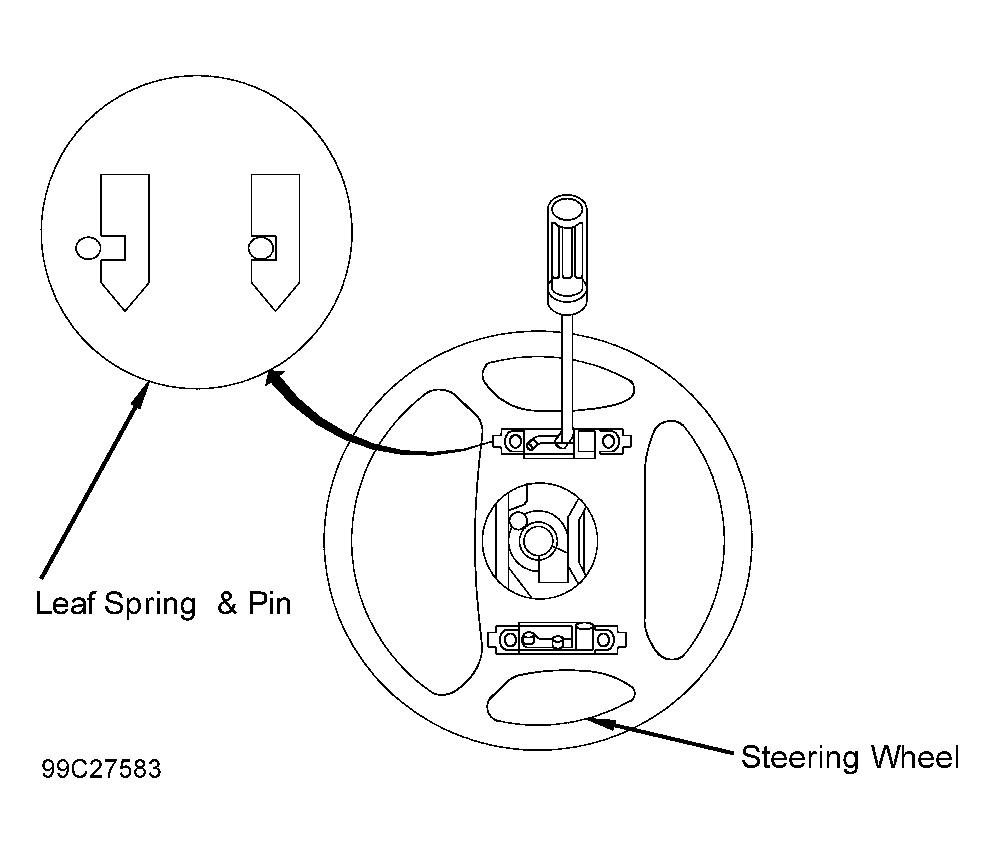

- Turn steering wheel 90 degrees to gain access to rear steering wheel holes. Insert a flat-bladed tool into each hole and push leaf springs to release air bag module from retaining pins. See Fig 1. Turn steering wheel 180 degrees to access remaining holes. Pull air bag module away from steering wheel. Disconnect air bag wire harness from clips on air bag module and steering wheel. Remove Connector Position Assurance (CPA) clips from air bag module connectors and disconnect connectors. Remove driver-side air bag module.
- To install, reverse removal procedure. Ensure driver-side air bag module retaining pins are latched securely on leaf springs. Activate air bag system. See ZONE 3 under DISABLING & ACTIVATING AIR BAG SYSTEM.>>
