Transmission Fluid Temperature (TFT) Sensor Specification

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

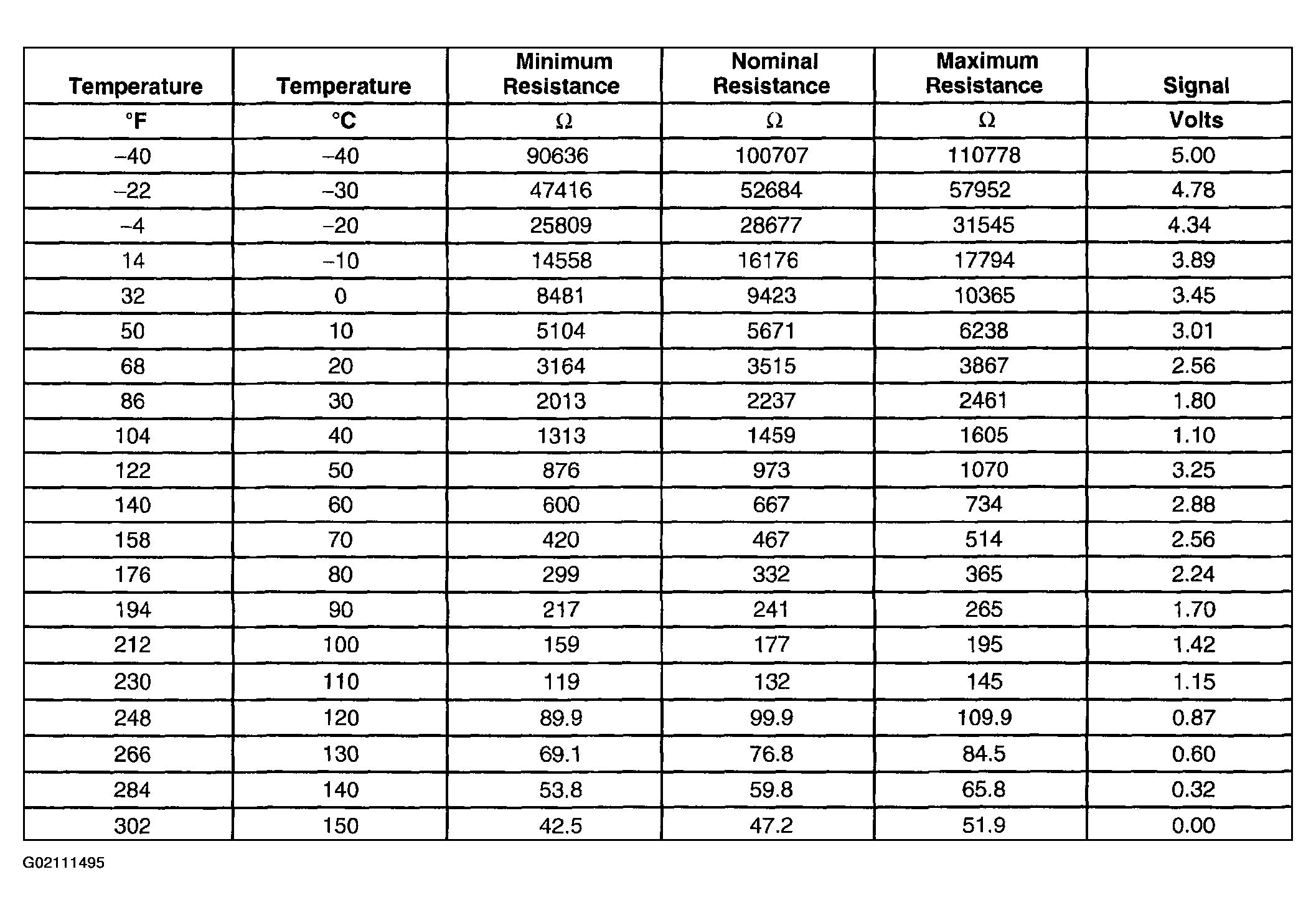

Fig 1: Transmission Fluid Temperature (TFT) Sensor Specifications Table
G02111495Courtesy of GENERAL MOTORS CORP.
