Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Disconnect the vehicle speed sensor (VSS) electrical connector (2).

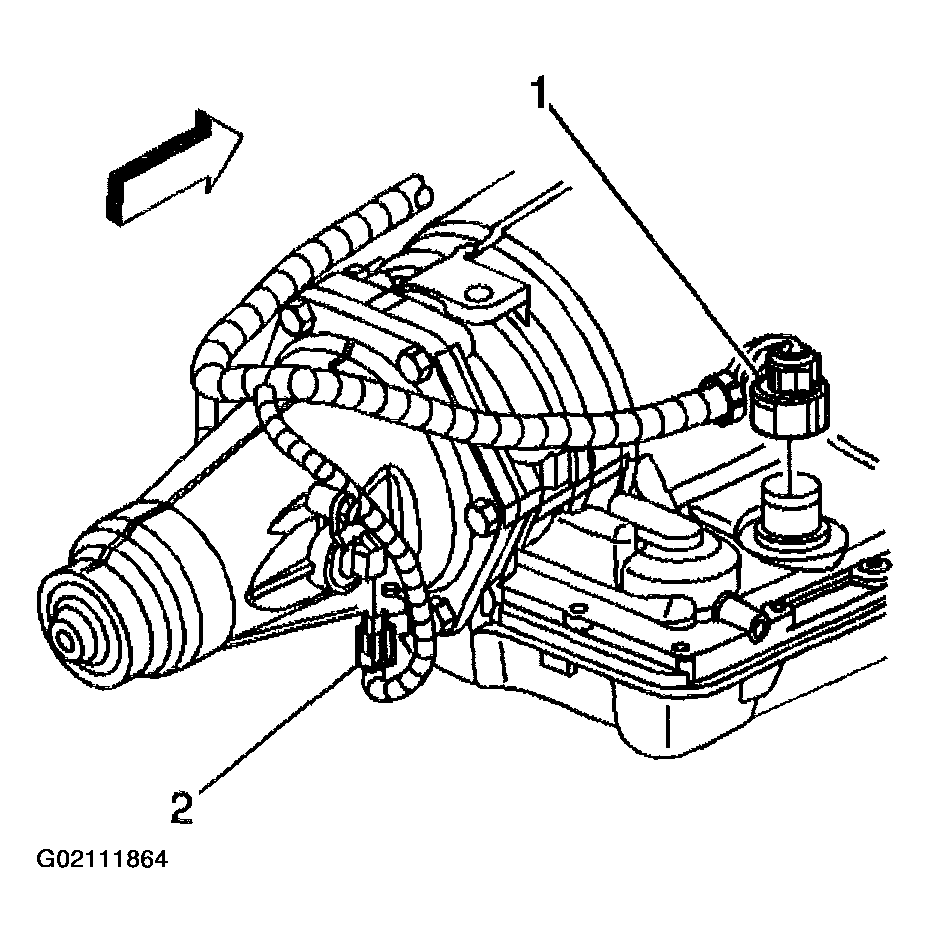

    Fig 1: Removing VSS Electrical Connector
    G02111864Courtesy of GENERAL MOTORS CORP.
  3. Remove the VSS bolt (2).
  4. Remove the VSS (1).
  5. Remove the O-ring seal (3).

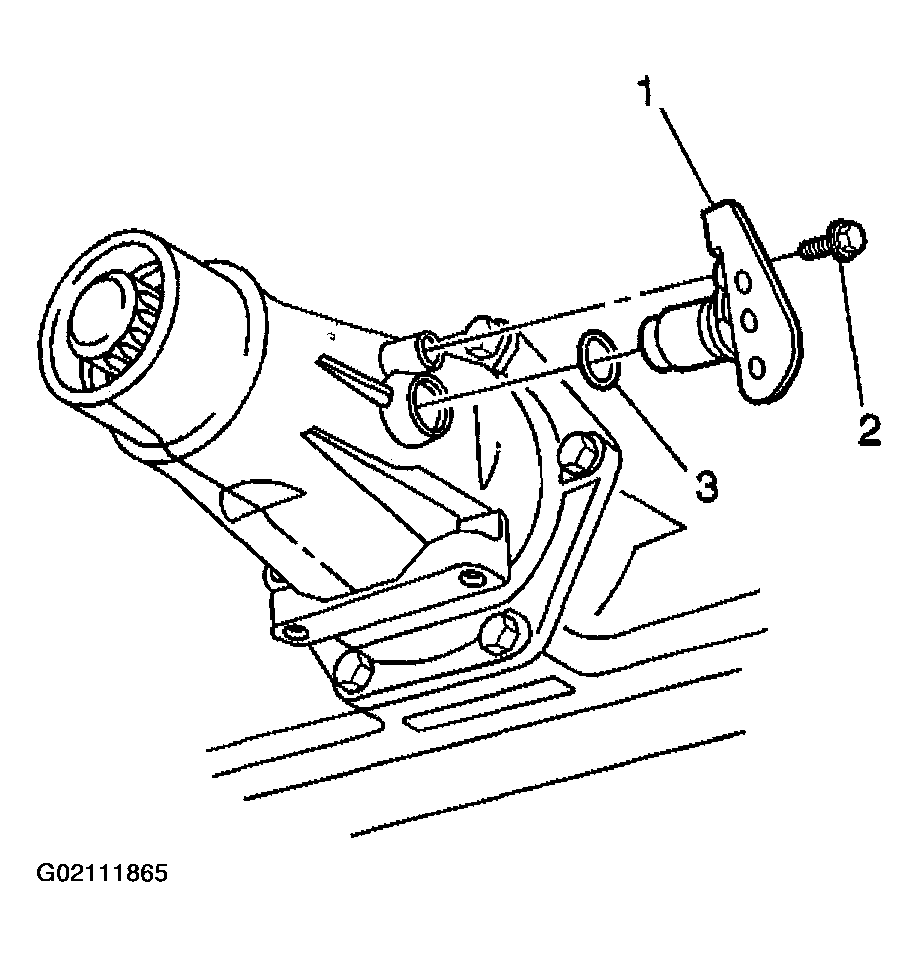

    Fig 2: Removing VSS Bolt & O-Ring Seal
    G02111865Courtesy of GENERAL MOTORS CORP.
