Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the O-ring seal (3) onto the VSS (1).
  2. Coat the O-ring seal (3) with a thin film of transmission fluid.
  3. Install the VSS (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the VSS bolt (2).

    Tighten

    Tighten the bolt to 11 N.m (97 lb in).

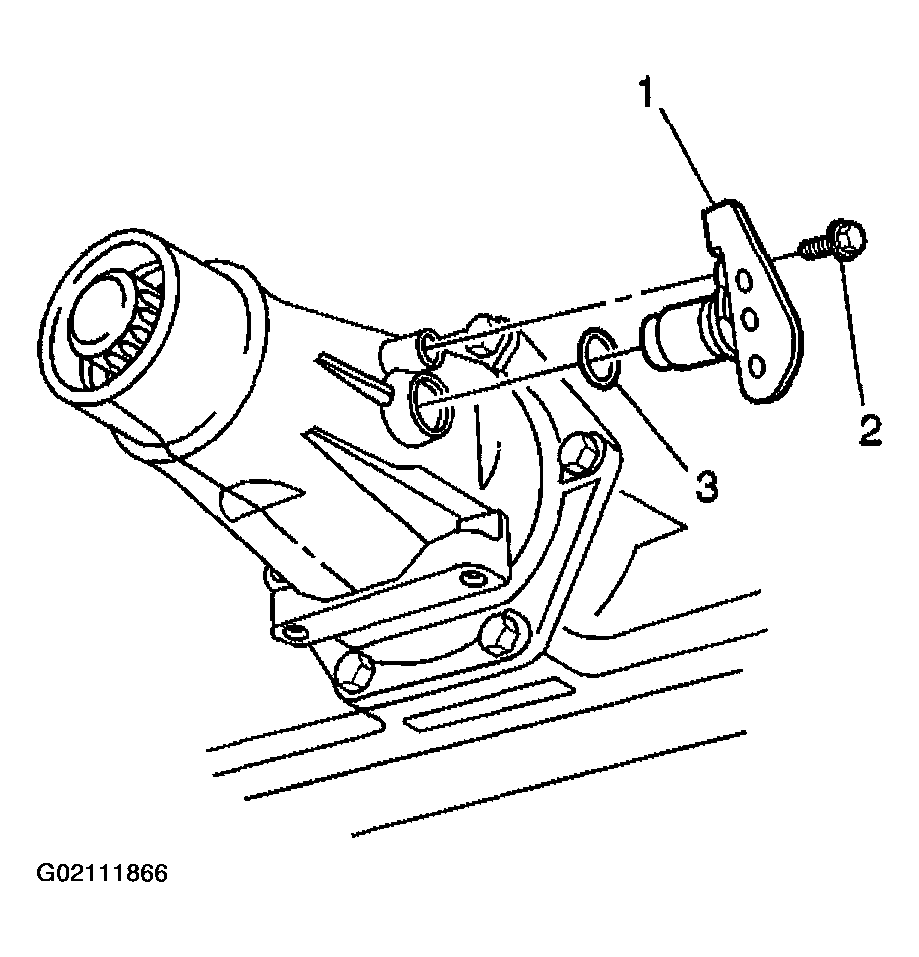

    Fig 1: Installing VSS Bolt & O-Ring Seal
    G02111866Courtesy of GENERAL MOTORS CORP.
  5. Connect the VSS electrical connector (2).
  6. Lower the vehicle.
  7. Refill the fluid as required.

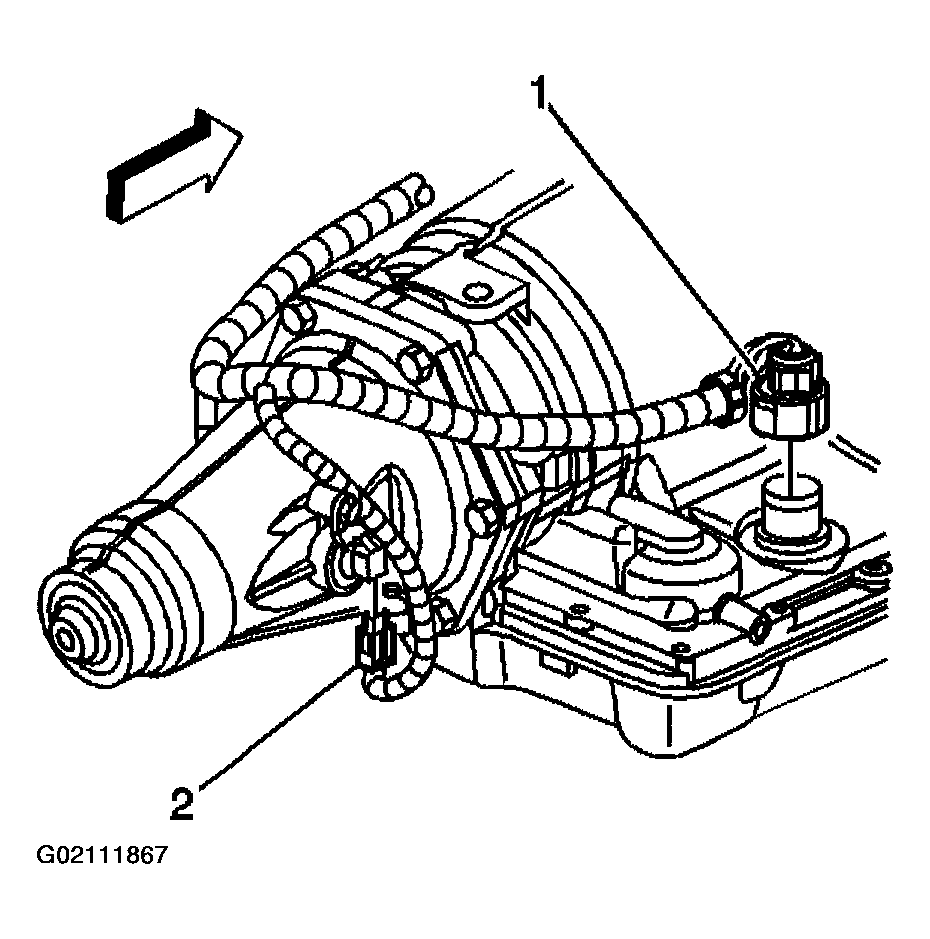

    Fig 2: Installing VSS Electrical Connector
    G02111867Courtesy of GENERAL MOTORS CORP.
