Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the checkballs (1-7) into the valve body.

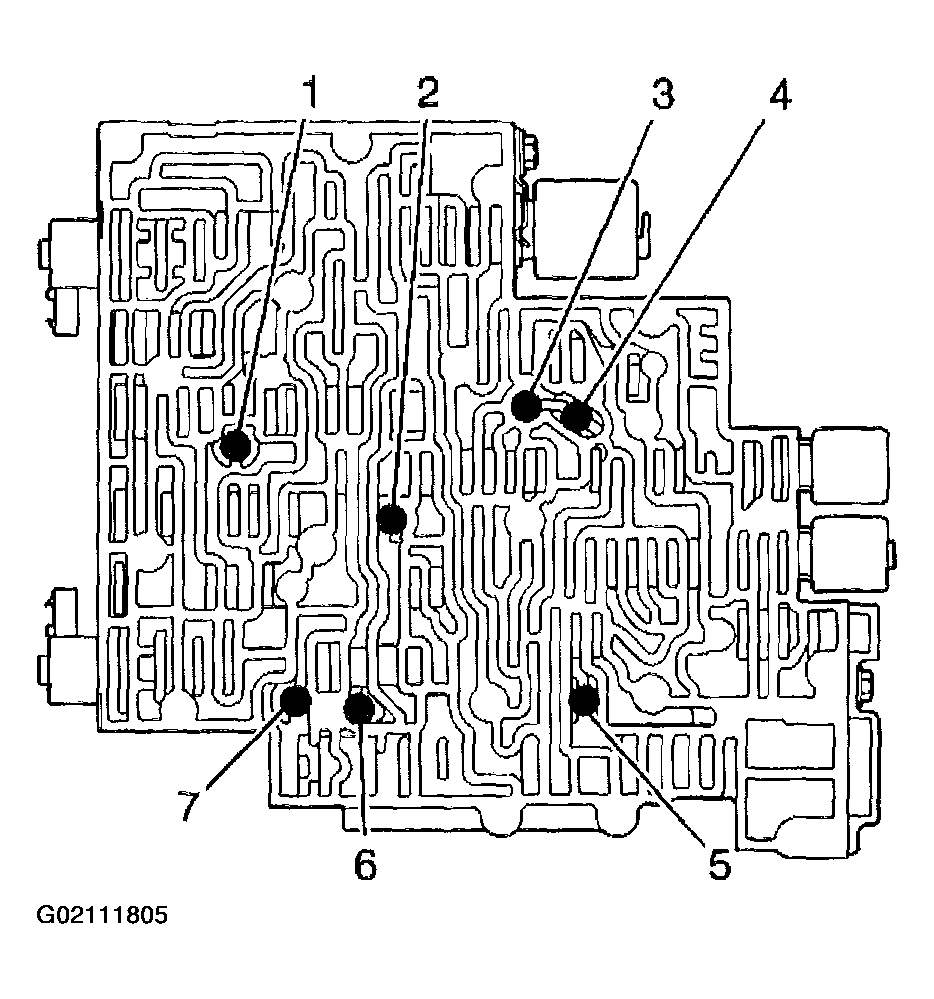

    Fig 1: Installing Checkballs Into Valve Body
    G02111805Courtesy of GENERAL MOTORS CORP.

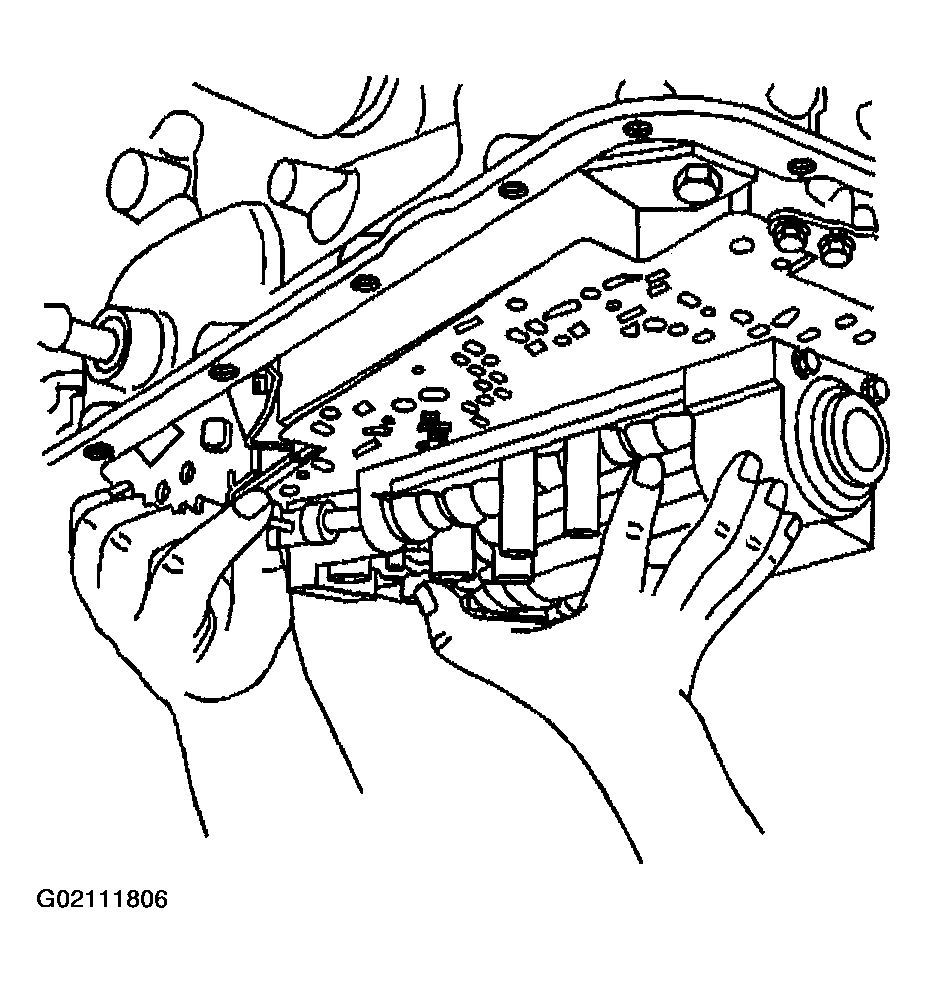

  2. Install the valve body to the transmission case while simultaneously connecting the manual valve link to the manual valve.
    Fig 2: Installing Valve Body To Transmission Case
    G02111806Courtesy of GENERAL MOTORS CORP.
  3. Verify that the manual valve link (3) is installed properly to the inside detent lever (1) and the manual valve (2).
    Fig 3: Verifying Manual Valve Link Is Installed Properly To Inside Detent Lever & Manual Valve
    G02111807Courtesy of GENERAL MOTORS CORP.
  4. Install one bolt (M6 X 1.0 X 47.5) hand tight in the center (1) of the valve body to hold it in place.

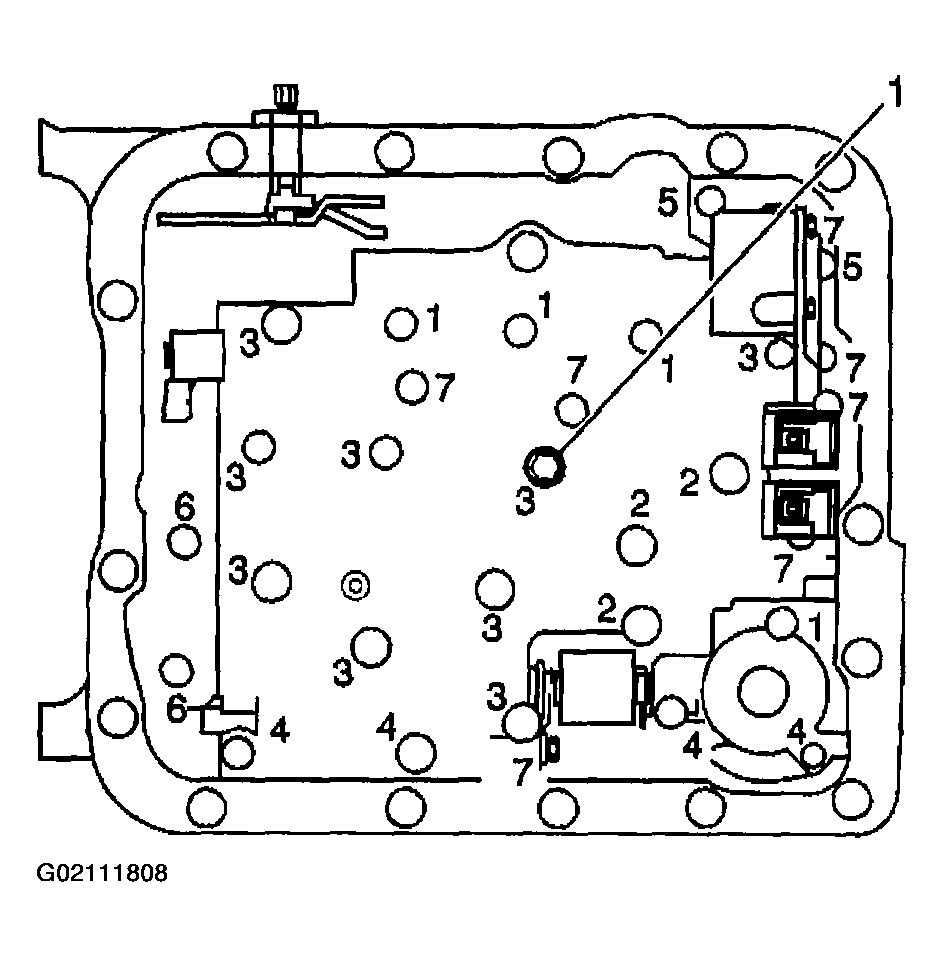

    Fig 4: Installing One Bolt (M6 X 1.0 X 47.5) Hand Tight In Center Of Valve Body
    G02111808Courtesy of GENERAL MOTORS CORP.

    Important:  When installing bolts throughout this procedure, be sure to use the correct bolt size and length in the correct location as specified.

  5. Do not install the transmission fluid indicator stop bracket and bolt at this time.

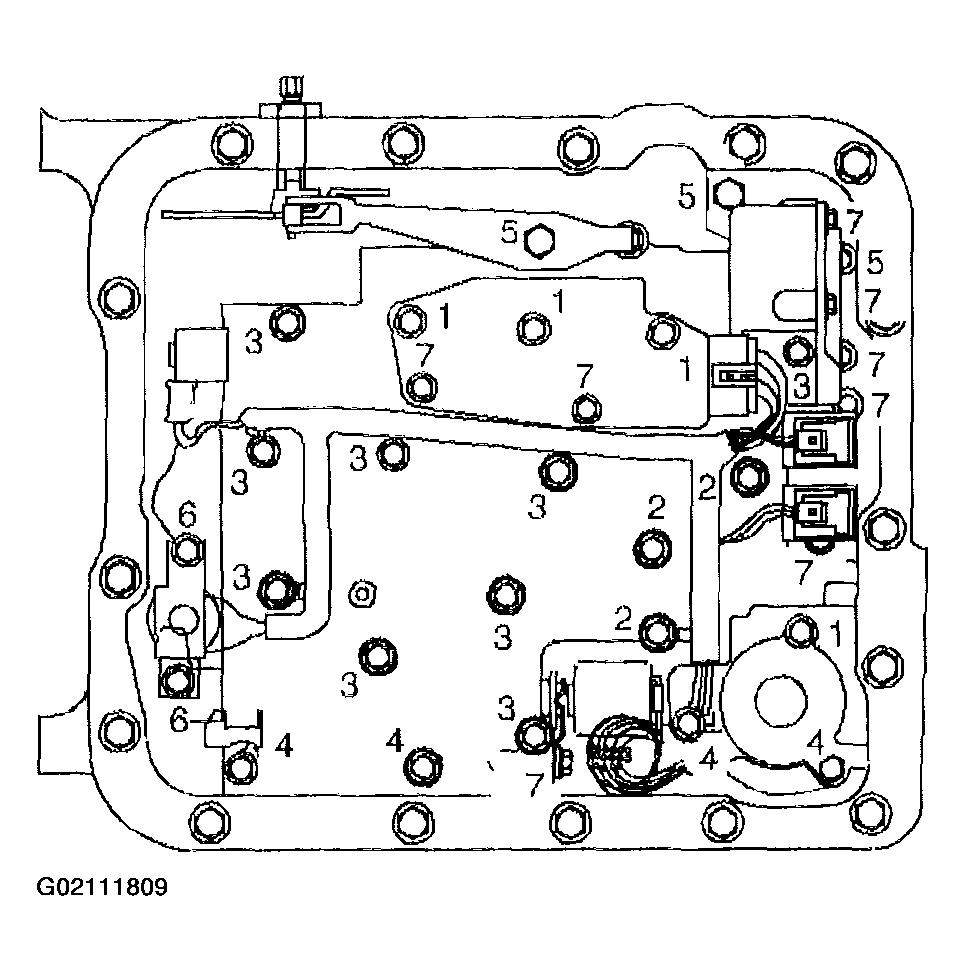

    Install but do not tighten the valve body bolts which retain only the valve body directly.

    Each numbered bolt location corresponds to a specific bolt size and length, as indicated by the following:

    • M6 X 1.0 X 65.0 (1)
    • M6 X 1.0 X 54.4 (2)
    • M6 X 1.0 X 47.5 (3)
    • M6 X 1.0 X 35.0 (4)
    • M8 X 1.0 X 20.0 (5)
    • M6 X 1.0 X 12.0 (6)
    • M6 X 1.0 X 18.0 (7)
    Fig 5: Installing Valve Body Bolts With Corresponding Numbers
    G02111809Courtesy of GENERAL MOTORS CORP.

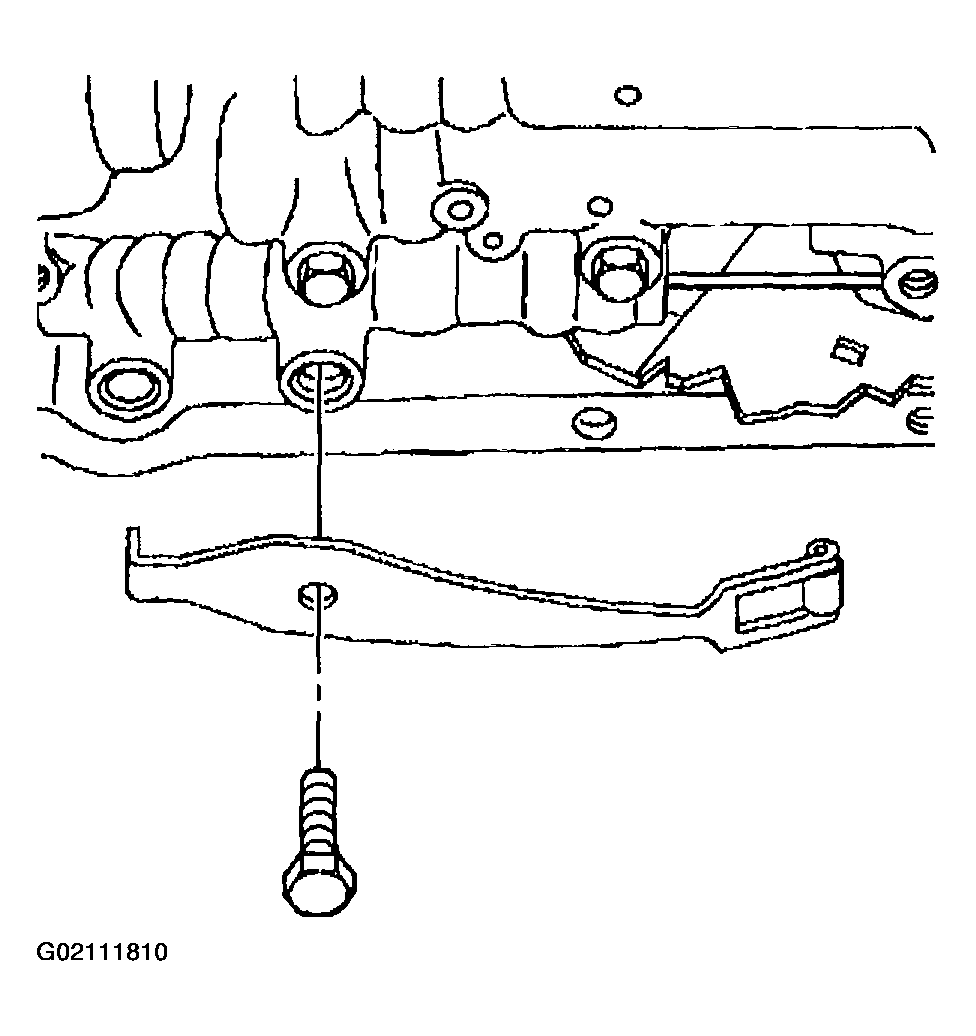

  6. Install the manual detent spring.
  7. Install but do not tighten the manual detent spring bolt.
    Fig 6: Installing Manual Detent Spring & Bolt
    G02111810Courtesy of GENERAL MOTORS CORP.

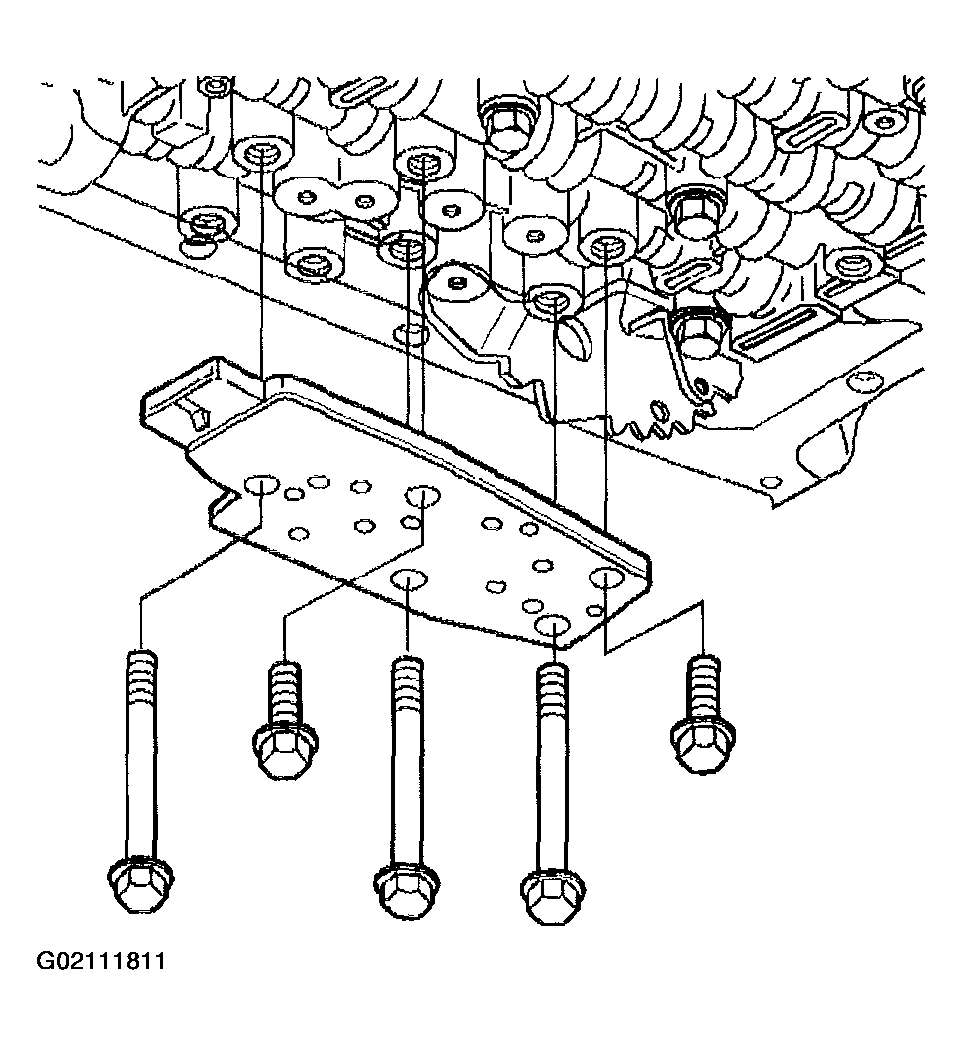

  8. Install the transmission fluid pressure switch.
  9. Install but do not tighten the valve body bolts which retain the transmission fluid pressure switch to the valve body.
    Fig 7: Installing Valve Body Bolts
    G02111811Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
    NOTE: Torque valve body bolts in a spiral pattern starting from the center. If the bolts are torqued at random, valve bores may be distorted and inhibit valve operation.
  10. Tighten the valve body bolts in a spiral pattern starting from the center, as indicated by the arrows.

    Tighten

    Tighten the bolts in the sequence shown to 11 N.m (97 lb in).

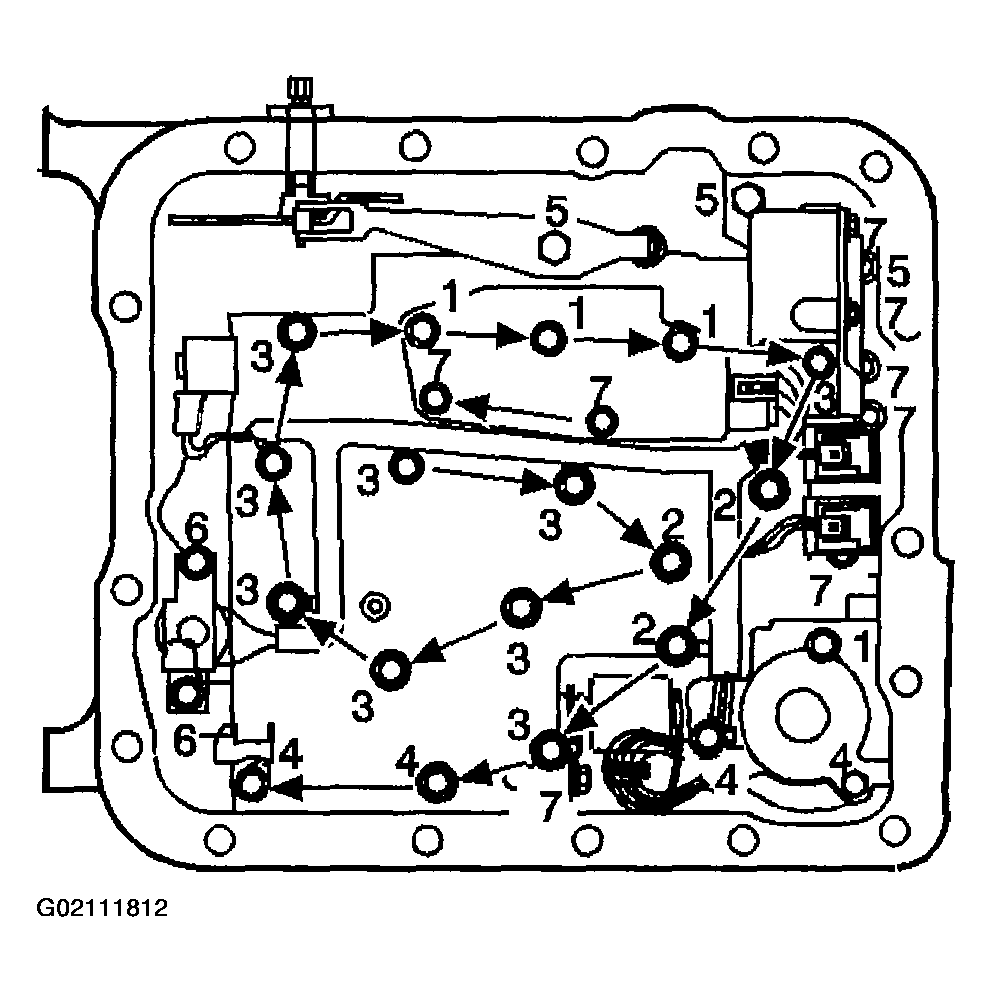

    Fig 8: Tightening Bolts In Sequence
    G02111812Courtesy of GENERAL MOTORS CORP.
  11. Ensure that the manual detent spring is aligned properly with the detent lever.

    Tighten

    Tighten the bolt to 11 N.m (97 lb in).

    Fig 9: Ensuring Manual Detent Spring Is Aligned Properly With Detent Lever
    G02111813Courtesy of GENERAL MOTORS CORP.

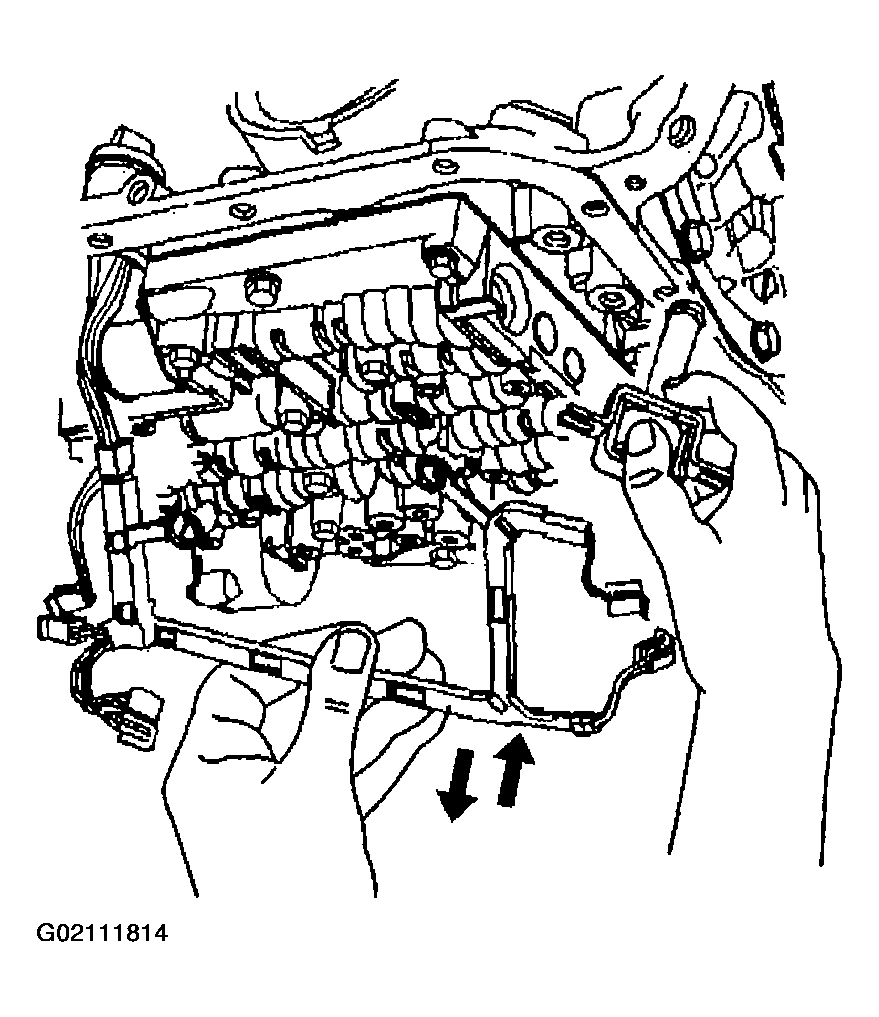

  12. Install the TCC solenoid with a NEW O-ring seal to the valve body.
    Fig 10: Installing TCC Solenoid (With O-Ring Seal) & Wiring Harness
    G02111814Courtesy of GENERAL MOTORS CORP.
  13. Install the TCC solenoid bolts.

    Tighten

    Tighten the bolts to 11 N.m (97 lb in).

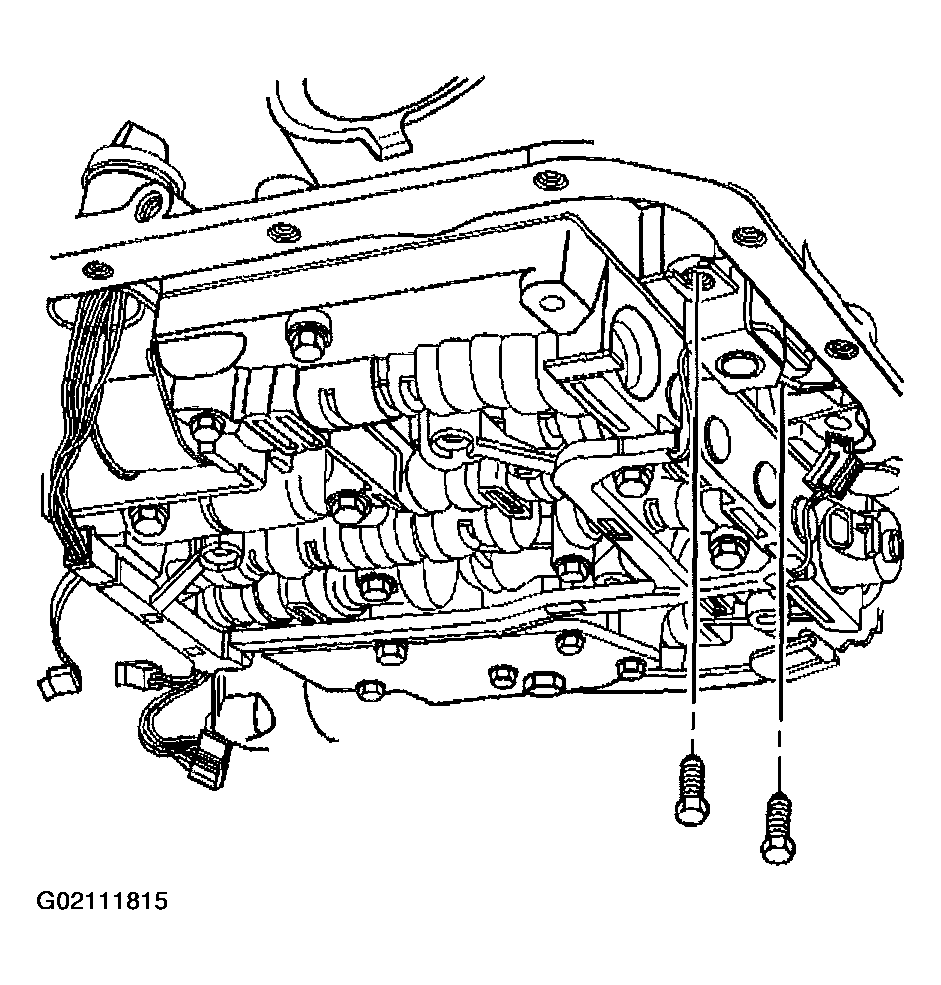

    Fig 11: Installing TCC Solenoid Bolts
    G02111815Courtesy of GENERAL MOTORS CORP.
  14. Install the internal wiring harness to the valve body. The internal wiring harness has a tab (1) on the edge of the conduit.

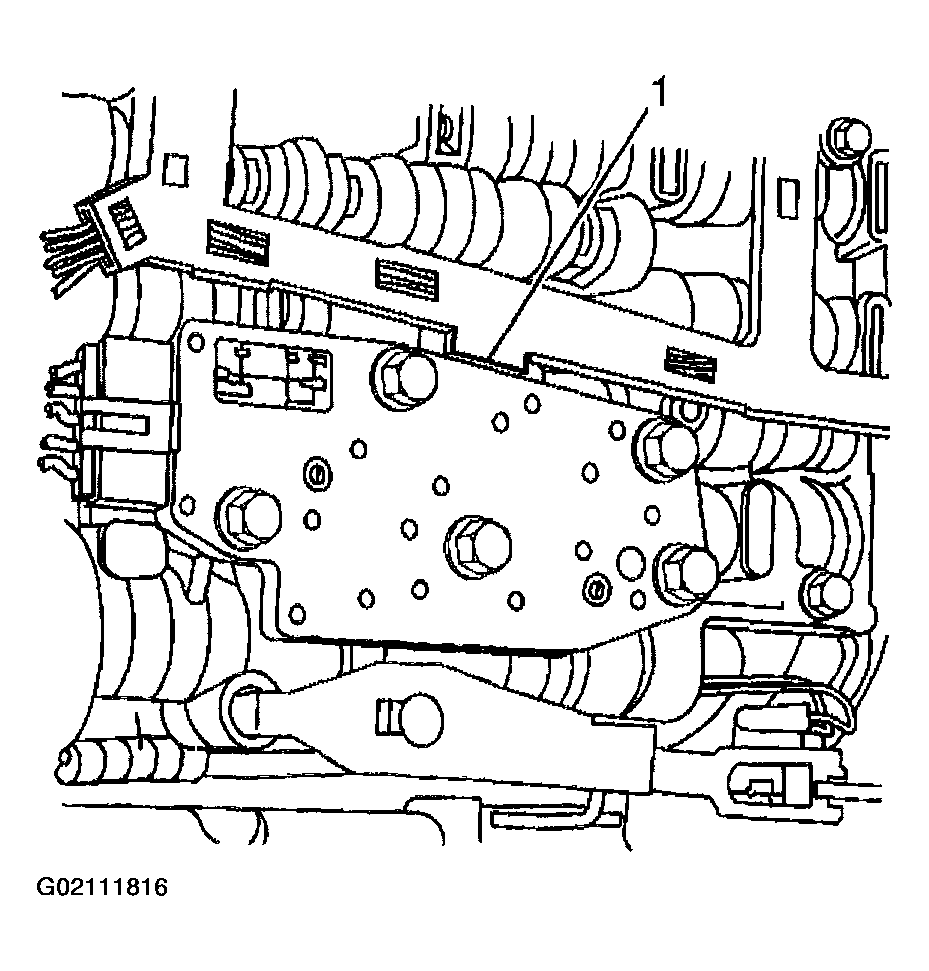

    Fig 12: Internal Wiring Harness Has Tab On Edge Of Conduit
    G02111816Courtesy of GENERAL MOTORS CORP.

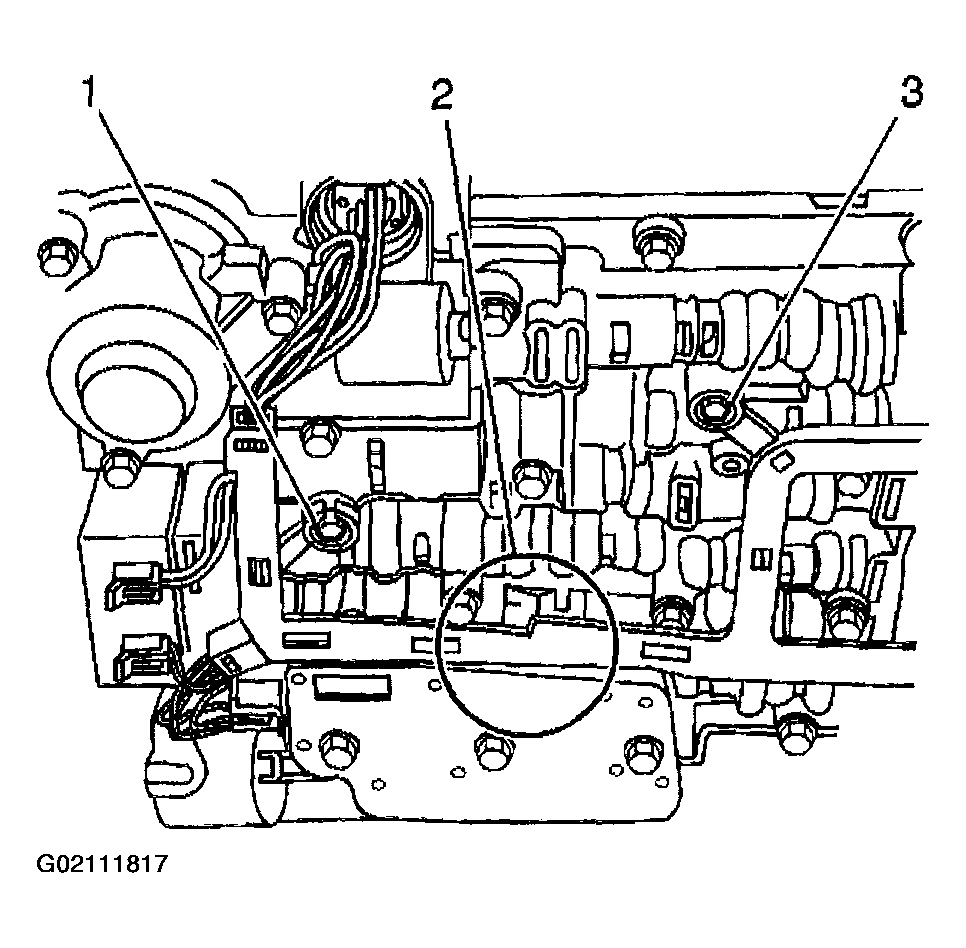

  15. Place the tab between the valve body and the pressure switch in the location shown (2). Press the harness into position on the valve body bolt bosses (1,3).
    Fig 13: Placing Tab Between Valve Body & Pressure Switch
    G02111817Courtesy of GENERAL MOTORS CORP.
  16. Install the TCC PWM solenoid (1) to the valve body.
  17. Install the TCC PWM solenoid retainer (2).

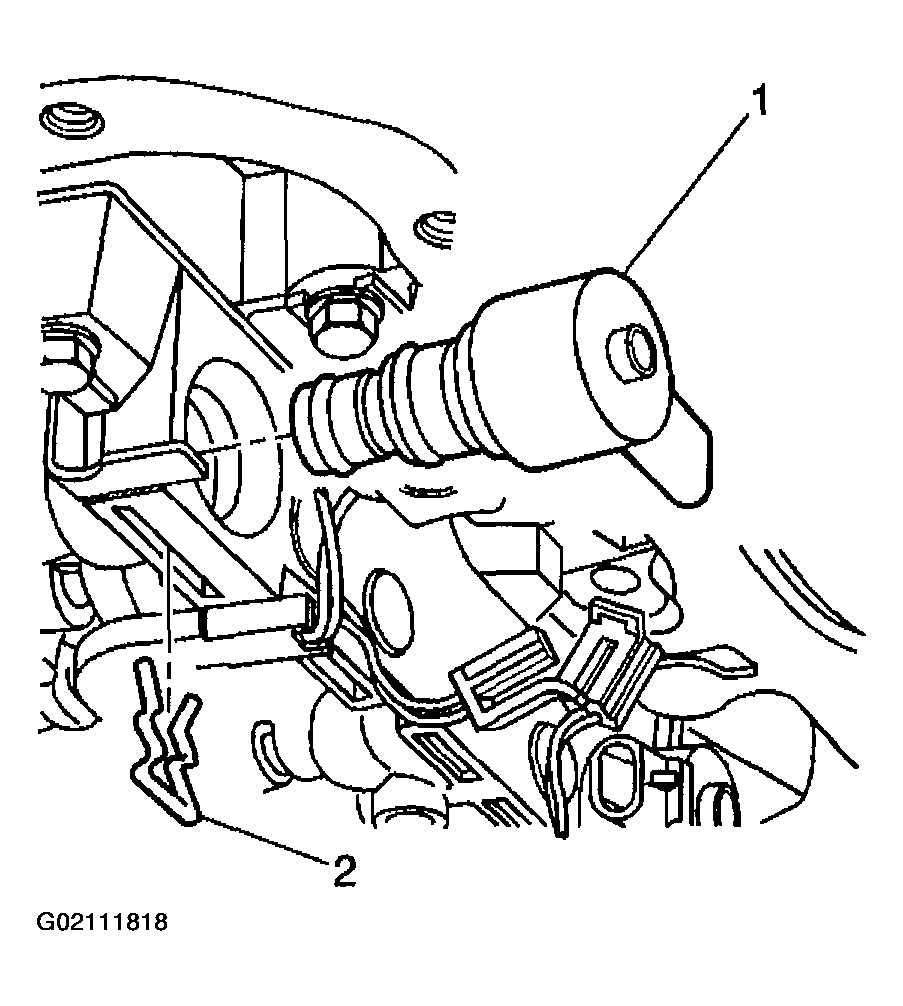

    Fig 14: Installing TCC PWM Solenoid & Retainer
    G02111818Courtesy of GENERAL MOTORS CORP.

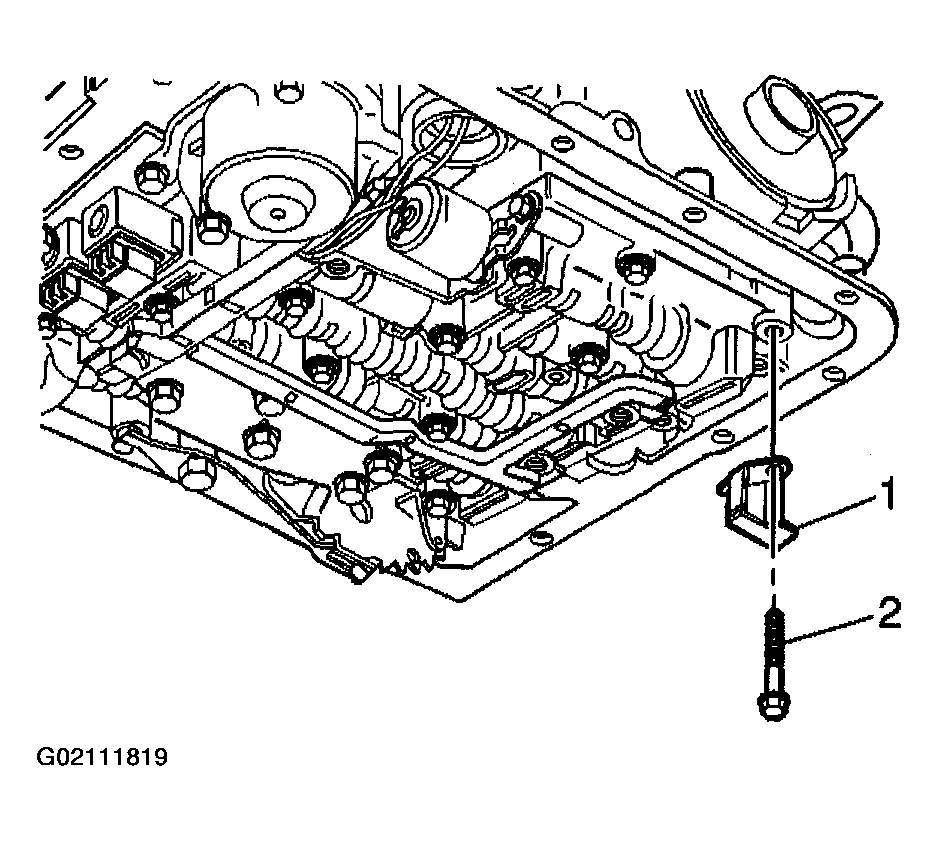

  18. Install the transmission fluid indicator stop bracket (1) and bolt (2).

    Tighten

    Tighten the bolt to 11 N.m (97 lb in).

    Fig 15: Installing Fluid Indicator Bracket & Bolt
    G02111819Courtesy of GENERAL MOTORS CORP.

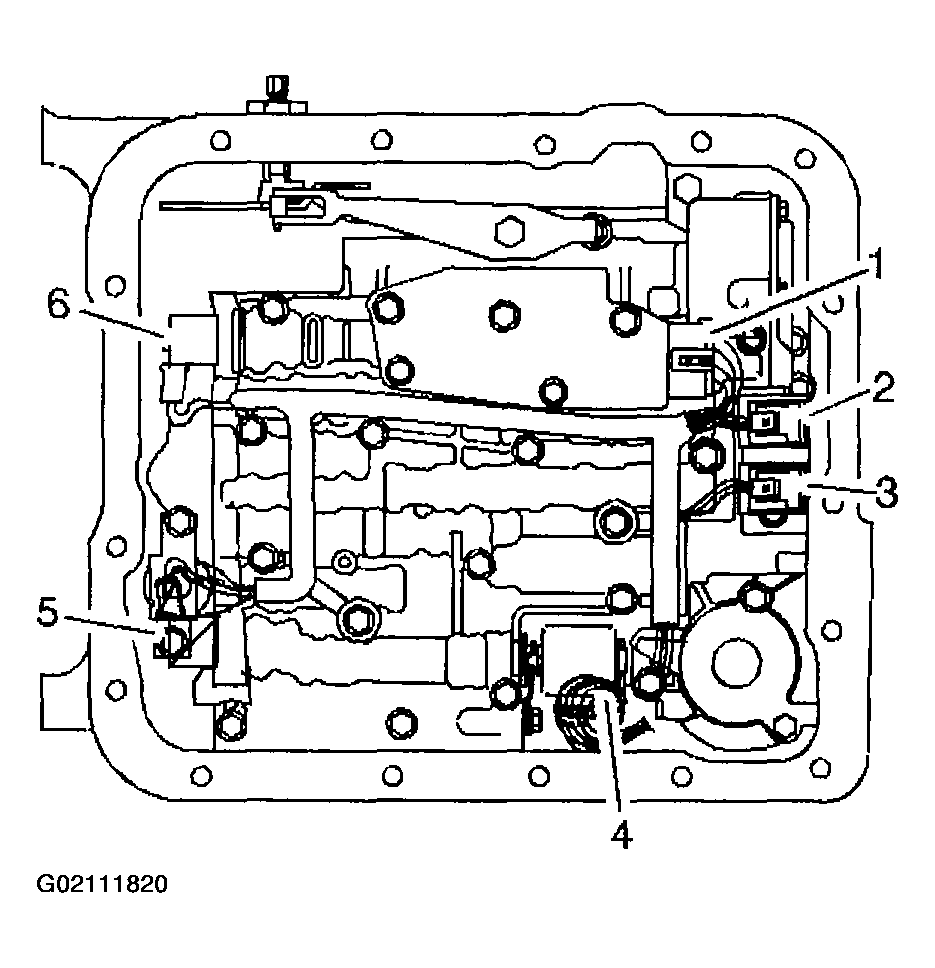

  19. Connect the internal wiring harness electrical connectors to the following components:
    • The transmission fluid pressure manual valve position switch (1)
    • The 1-2 shift solenoid (2)
    • The 2-3 shift solenoid (3)
    • The pressure control solenoid (4)
    • The TCC PWM solenoid (5)
    • The 3-2 shift solenoid (6)
  20. Install the transmission filter. Refer to AUTOMATIC TRANSMISSION FLUID/FILTER REPLACEMENT  .
    Fig 16: Connecting Internal Wiring Harness Electrical Connectors
    G02111820Courtesy of GENERAL MOTORS CORP.
