Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:

Do not reuse any of the existing oil lines or oil line fittings if there is excessive corrosion.
Do not reuse any of the existing retaining rings that were removed from the existing quick connect fittings. Install new retaining rings.
Ensure the following procedures are performed when installing the new retaining rings onto the fittings.

Install a new retaining ring into the quick connect fitting using the following procedure:
Hook one of the open ends of the retaining ring in one of the slots in the quick connect fitting.

Fig 1: Installing Retaining Ring Into Quick Connect Fitting
Courtesy of GENERAL MOTORS CORP.

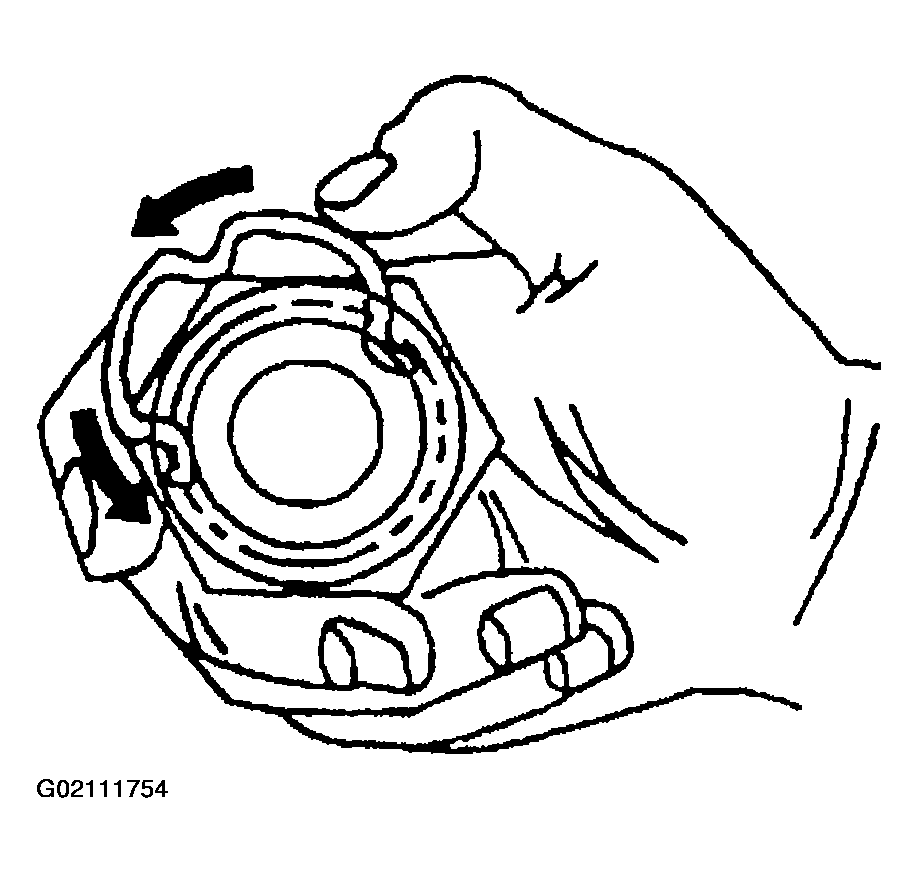

Rotate the retaining ring around the fitting until the retaining ring is positioned with all three ears through the three slots on the fitting.

Fig 2: Rotating Retaining Ring Around Fitting
Courtesy of GENERAL MOTORS CORP.

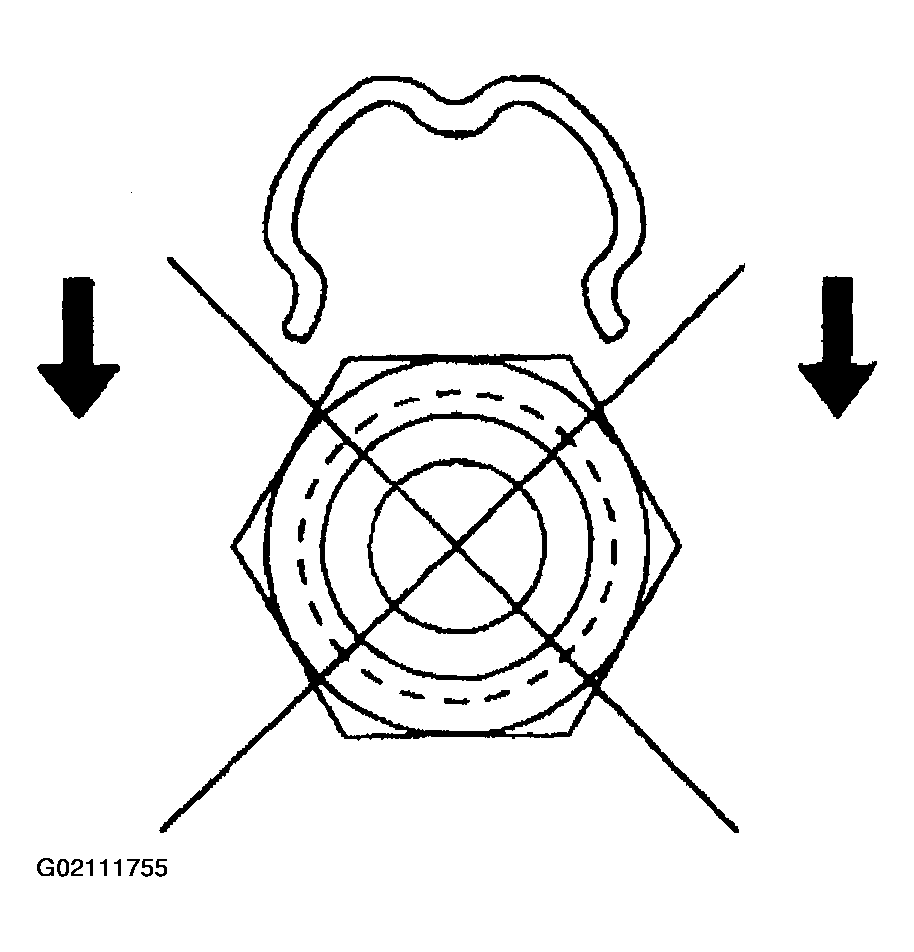

Do not install the new retaining ring onto the fitting by pushing the retaining ring.

Fig 3: Do Not Install Retaining Ring Onto Fitting By Pushing Retaining Ring
Courtesy of GENERAL MOTORS CORP.

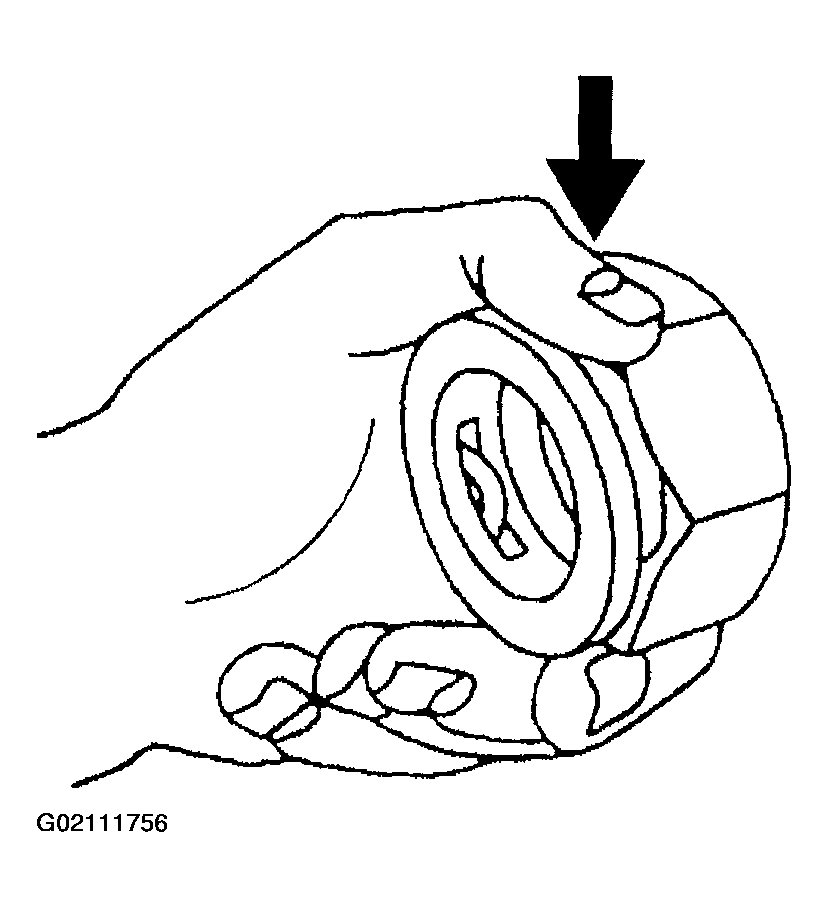

Ensure that the three retaining ring ears are seen from inside the fitting and that the retaining ring moves freely in the fitting slots.

Fig 4: Ensuring That Three Retaining Ring Ears Are Seen From Inside Fitting
Courtesy of GENERAL MOTORS CORP.

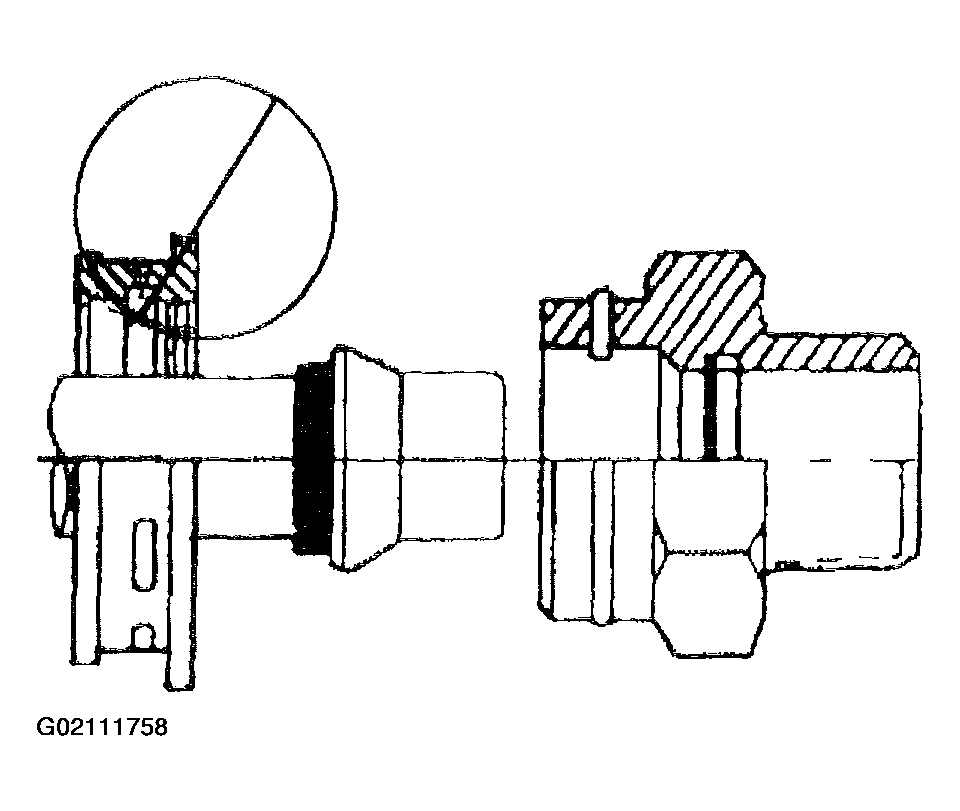

Install the cooler line into the quick connect fitting.
Insert the cooler line end into the quick connect fitting until a click is either heard or felt.

Fig 5: Inserting Cooler Line End Into Quick Connect Fitting
Courtesy of GENERAL MOTORS CORP.
Do not use the plastic cap on the cooler line in order to install the cooler line into the fitting.
Pull back sharply on the cooler line in order to ensure that the cooler line is fastened into the quick connect fitting.

Fig 6: Pulling Back Sharply On Cooler Line
Courtesy of GENERAL MOTORS CORP.

Important: Do not manually depress the retaining clip when installing the plastic cap.
Position (snap) the plastic cap onto the fitting. Do not manually depress the retaining ring when installing the plastic cap onto the quick connect fitting.
Ensure that the plastic cap is fully seated against the fitting.

Fig 7: Ensuring That Plastic Cap Is Fully Seated Against Fitting
Courtesy of GENERAL MOTORS CORP.

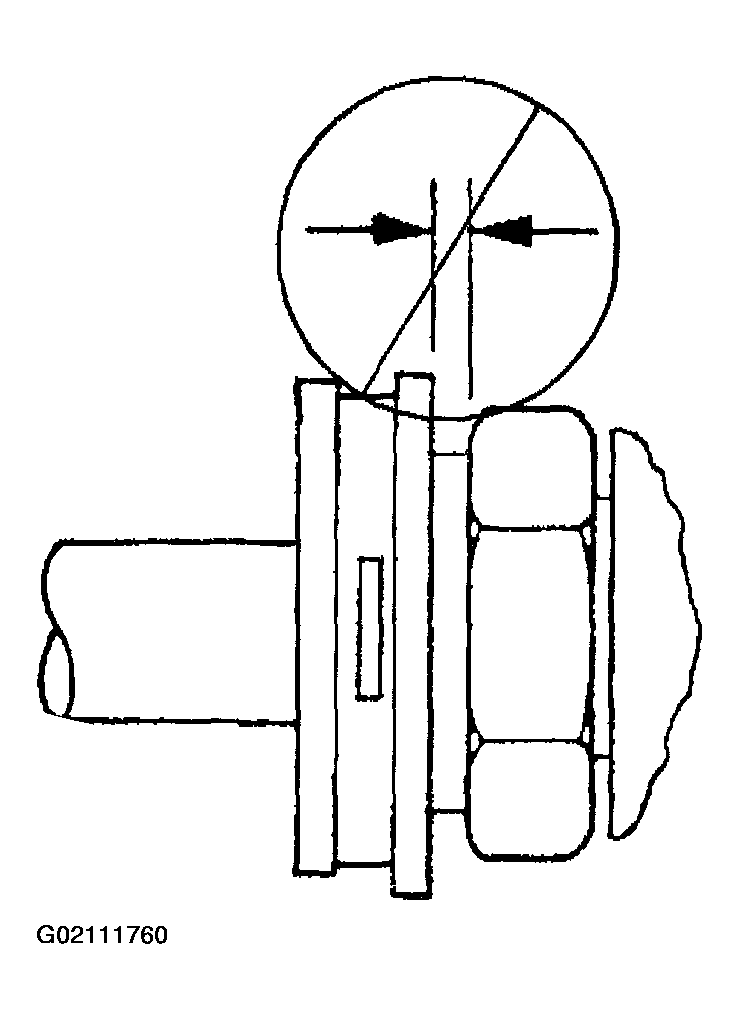

Ensure that no gap is present between the cap and the fitting.

Fig 8: Ensuring That Plastic Cap Is Fully Seated Against Fitting
Courtesy of GENERAL MOTORS CORP.
Ensure that the yellow identification band on the tube is hidden within the quick connect fitting.

Fig 9: Ensuring That Yellow Identification Band On Tube Is Hidden Within Quick Connect Fitting
Courtesy of GENERAL MOTORS CORP.
A hidden yellow identification band indicates proper joint seating.
Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to TRANSMISSION FLUID CHECKING PROCEDURE .

Fig 10: A Hidden Yellow Identification Band Indicates Proper Joint Seating
Courtesy of GENERAL MOTORS CORP.
