Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Support the transmission with a transmission jack.
  3. Remove the transmission mount to the transmission support retaining nut or nuts.

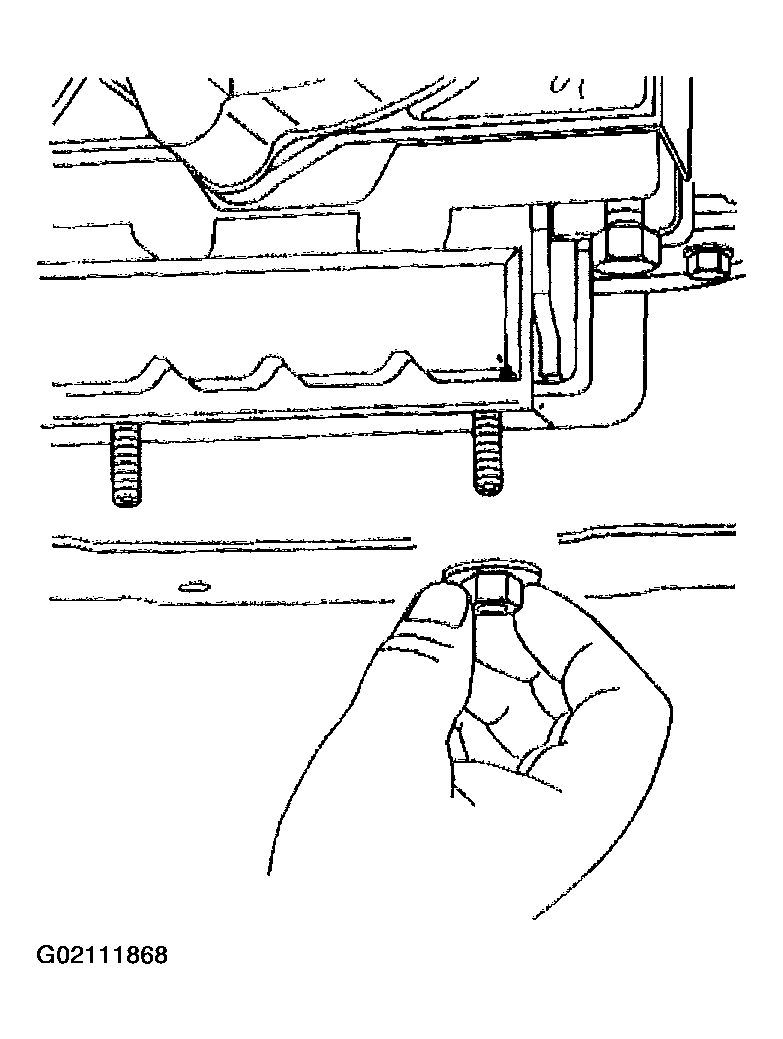

    Fig 1: Removing Transmission Mount To Transmission Support Retaining Nut
    G02111868Courtesy of GENERAL MOTORS CORP.
  4. Raise the transmission to take the weight off the mount.
  5. Remove the transmission mount to the transmission or transfer case adapter mounting bolts (1).
  6. Raise the transmission just enough to remove the transmission mount.
  7. Remove the transmission mount from the vehicle.

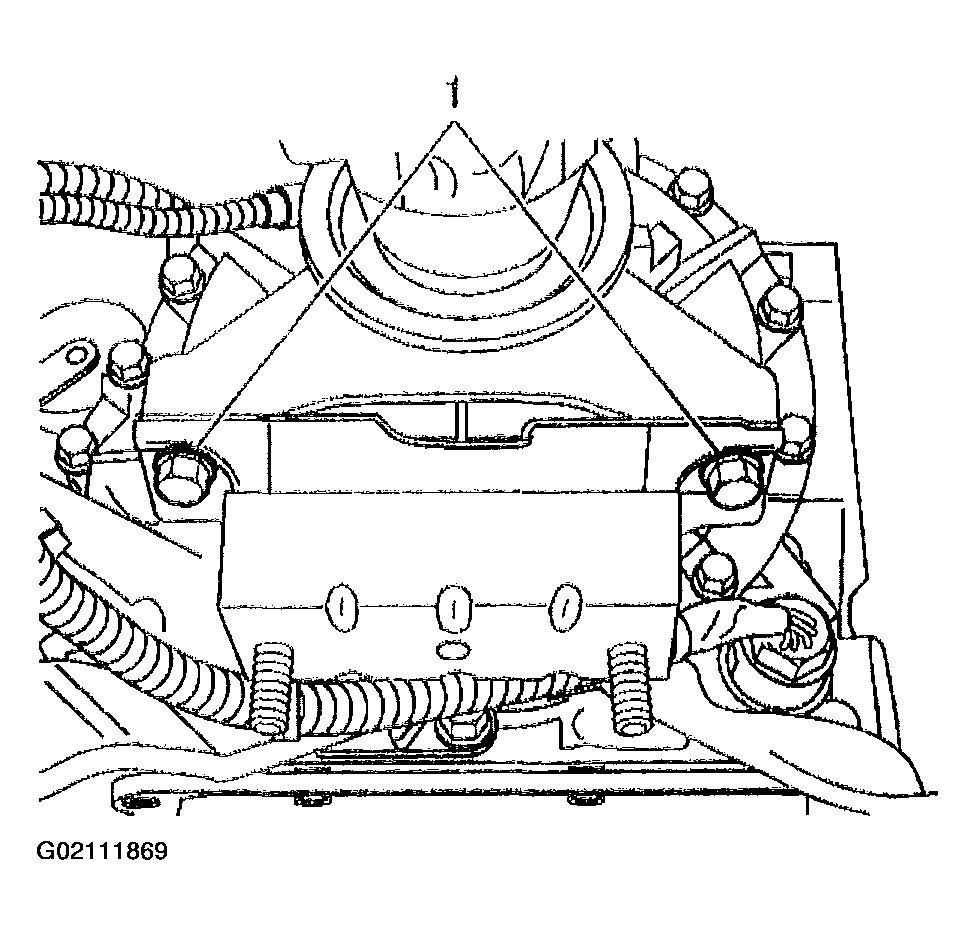

    Fig 2: Removing Transfer Case Adapter Mounting Bolts
    G02111869Courtesy of GENERAL MOTORS CORP.
