Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission mount to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transmission mount to the transmission or transfer case adapter mounting bolts (1).

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

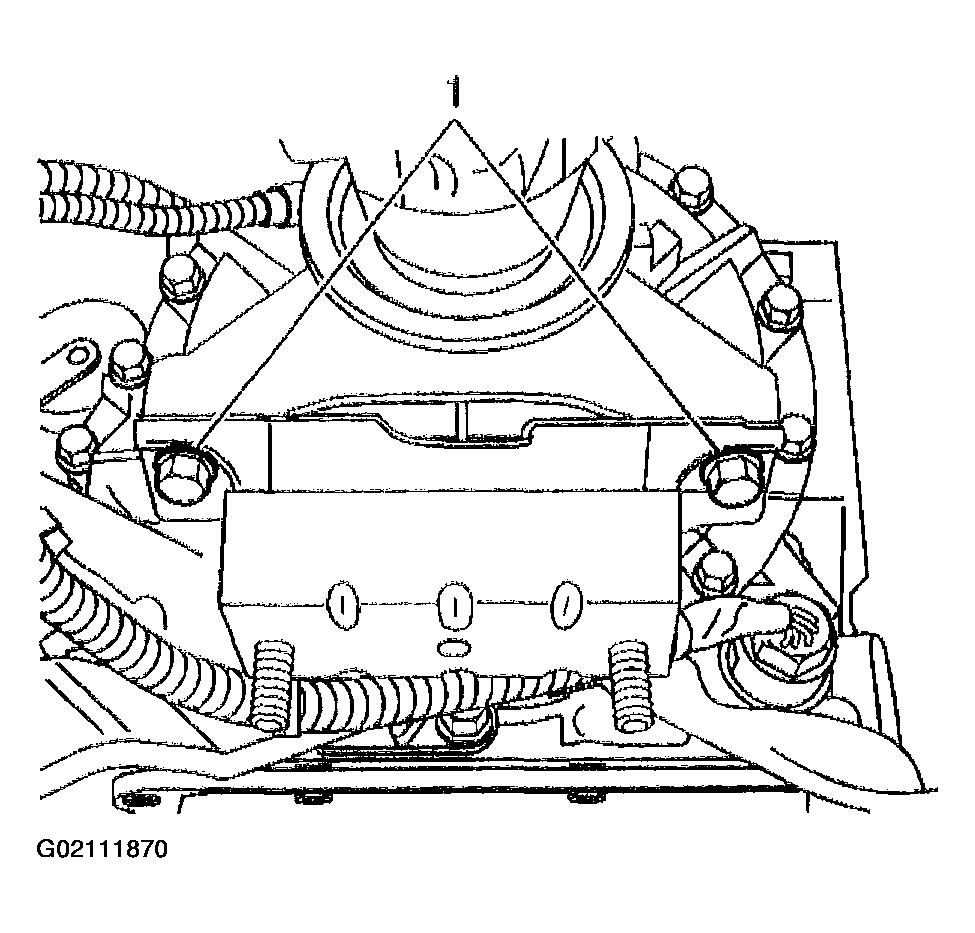

    Fig 1: Installing Transfer Case Adapter Mounting Bolts
    G02111870Courtesy of GENERAL MOTORS CORP.
  3. Lower the transmission.
  4. Install the transmission mount to the transmission support retaining nut or nuts.

    Tighten

    Tighten the nut or nuts to 40 N.m (30 lb ft).

  5. Remove the transmission jack.
  6. Lower the vehicle.
    Fig 2: Installing Transmission Mount To Transmission Support Retaining Nut
    G02111871Courtesy of GENERAL MOTORS CORP.
