Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission oil cooler lines to the vehicle.
  2. Install the cooling lines to the transmission. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .

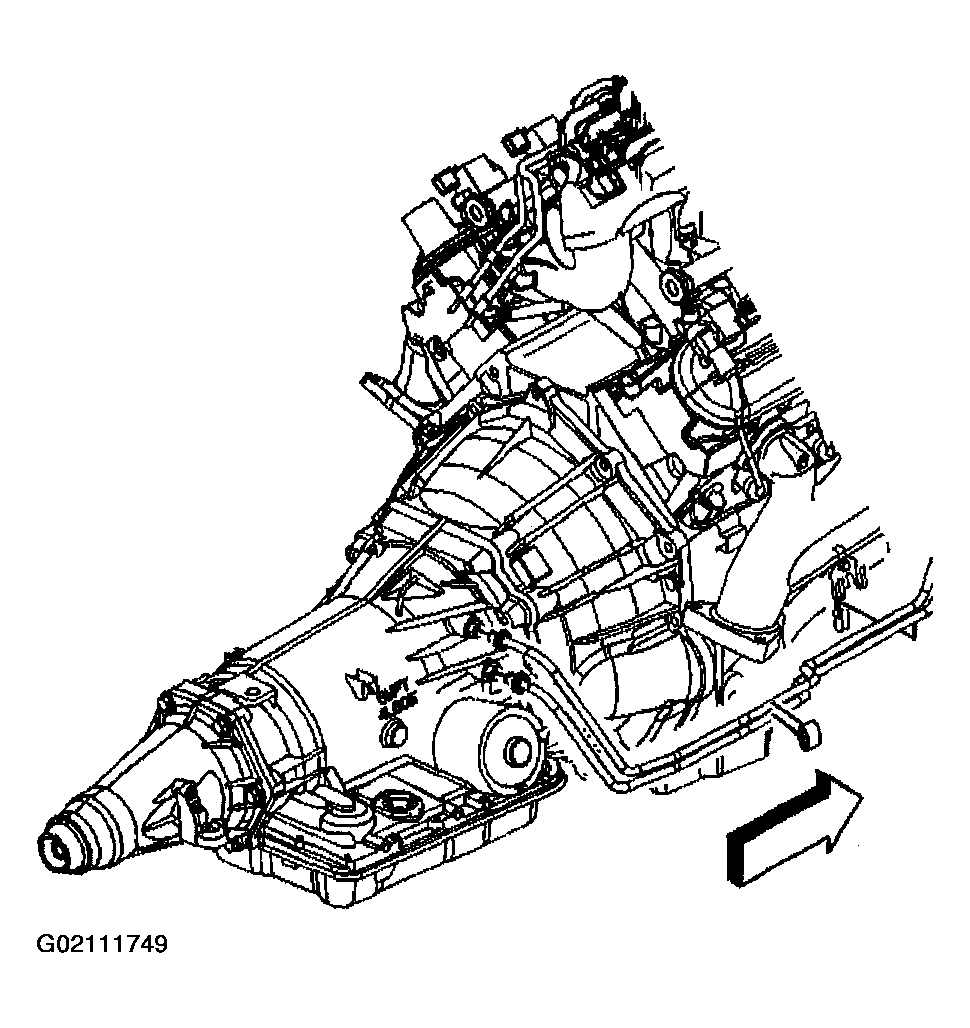

    Fig 1: Installing Oil Cooling Lines
    G02111749Courtesy of GENERAL MOTORS CORP.
  3. Install the engine protection shield.
  4. Lower the vehicle.
  5. Install the transmission fluid cooler hose to the radiator. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  6. Install the transmission fluid cooler hose to the Auxiliary oil cooler. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  7. Install the front grill assembly. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in Exterior Trim.

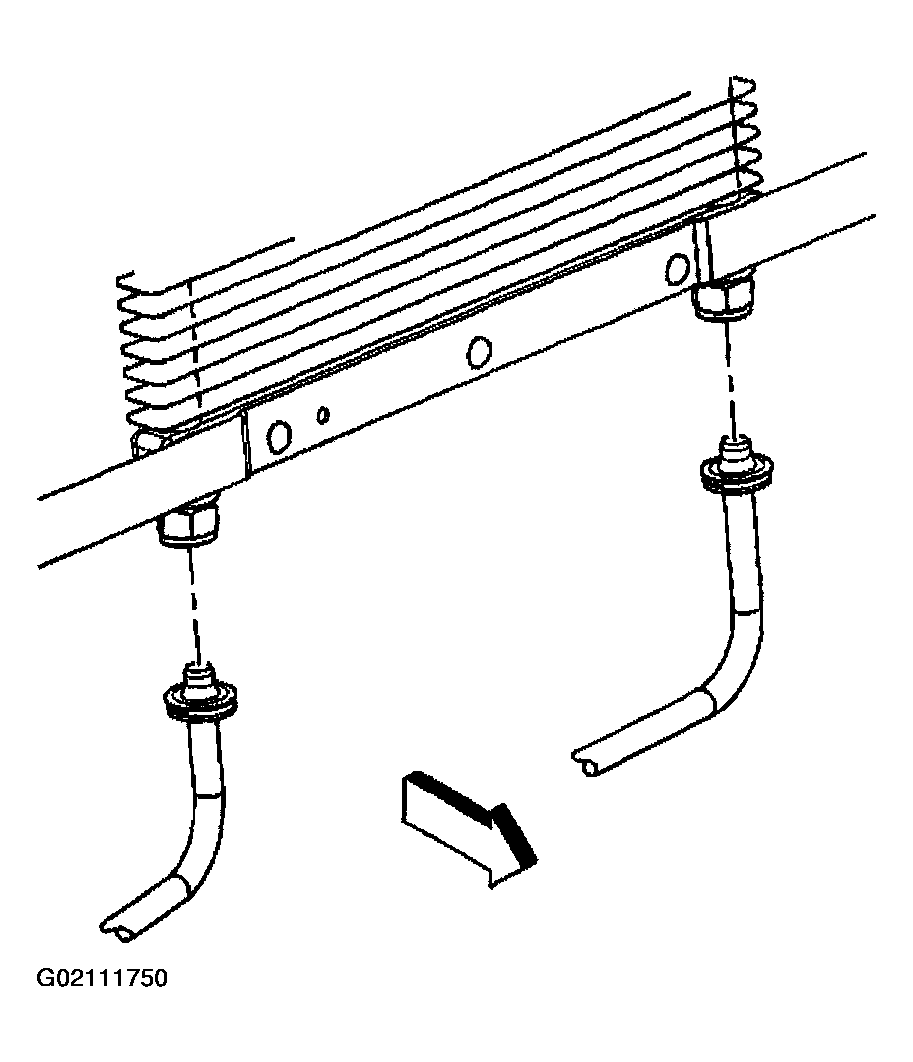

    Fig 2: Installing Transmission Fluid Cooler Hose To Radiator
    G02111750Courtesy of GENERAL MOTORS CORP.
