Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grill assembly. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in Exterior Trim.
  2. Place a drain pan under the vehicle.
  3. Disconnect the transmission oil cooler lines from the auxiliary cooler. Refer to TRANSMISSION OIL COOLER LINE QUICK CONNECT FITTING .
  4. Remove the auxiliary oil cooler bolts (1) and push pins (2).
  5. Remove the auxiliary oil cooler from the vehicle.

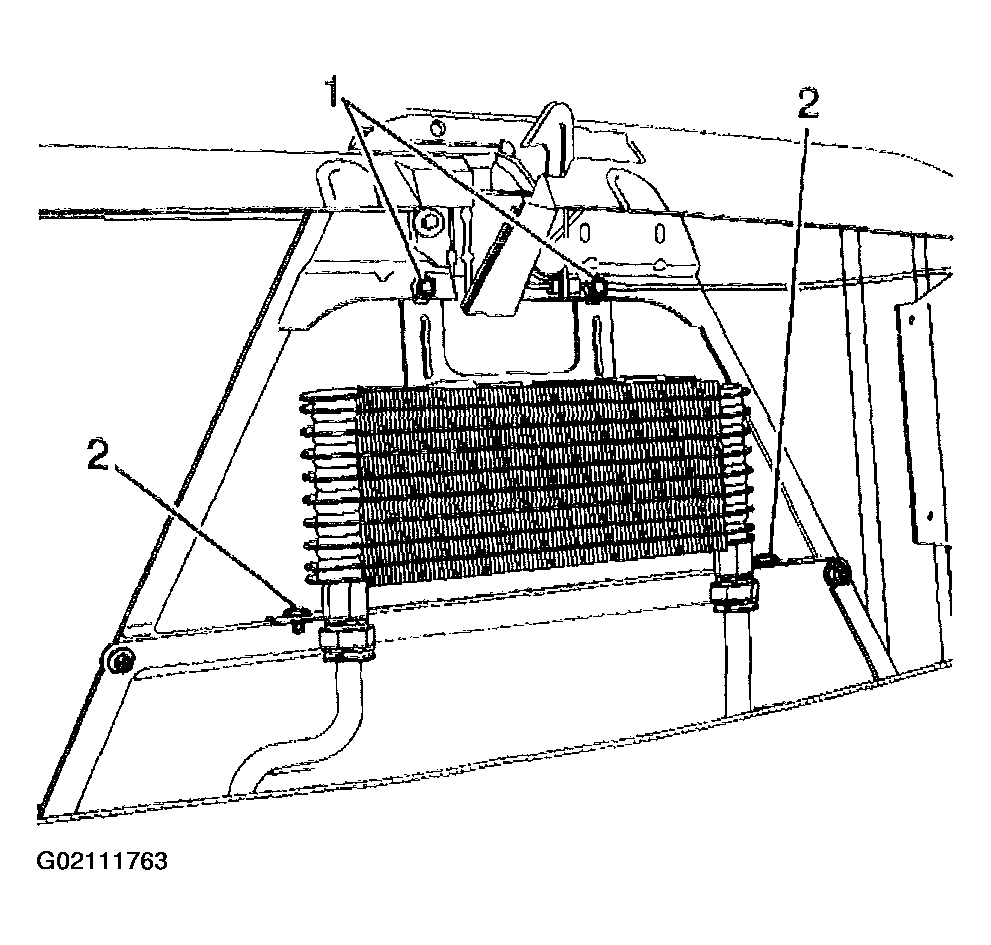

    Fig 1: Removing Transmission Fluid Auxiliary Cooler
    G02111763Courtesy of GENERAL MOTORS CORP.
