Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new case extension O-ring seal (3).
  2. Install the case extension (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the case extension bolts (1).

    Tighten

    Tighten the bolts (1) to 45 N.m (33 lb ft).

  4. Install the transmission mount. Refer to TRANSMISSION MOUNT .
  5. Remove the drain pan and the transmission jack.
  6. Install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- REAR in Propeller Shaft.
  7. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to TRANSMISSION FLUID CHECKING PROCEDURE  .

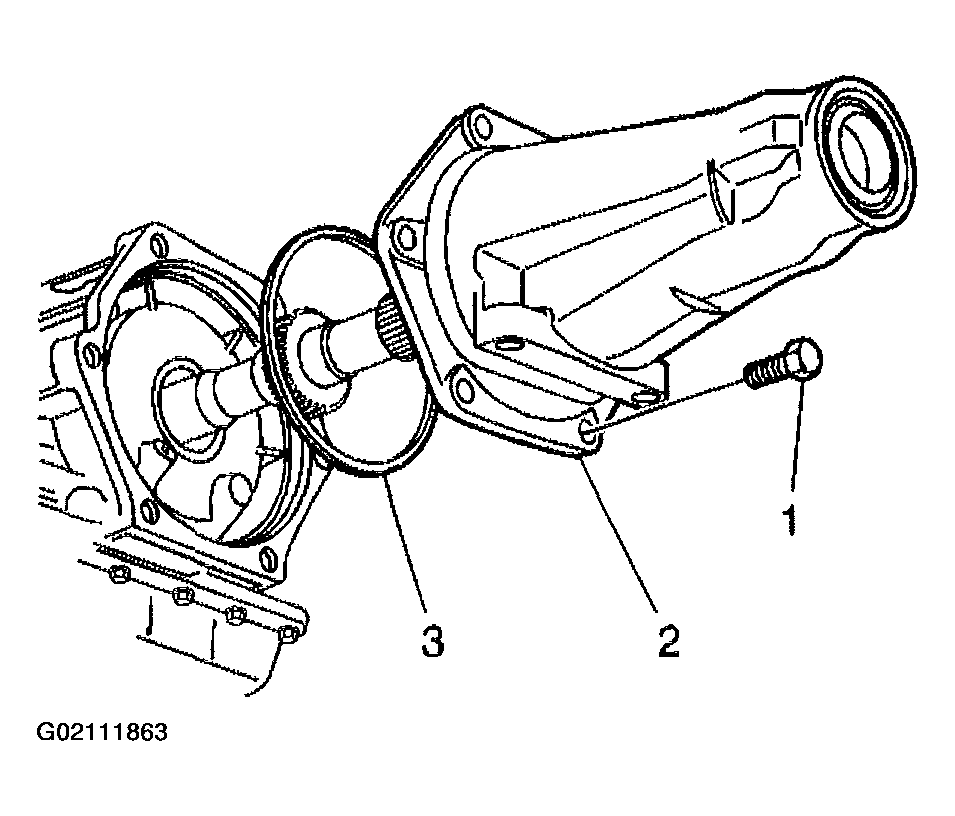

    Fig 1: Installing Transmission Extension Housing Assembly
    G02111863Courtesy of GENERAL MOTORS CORP.
