Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

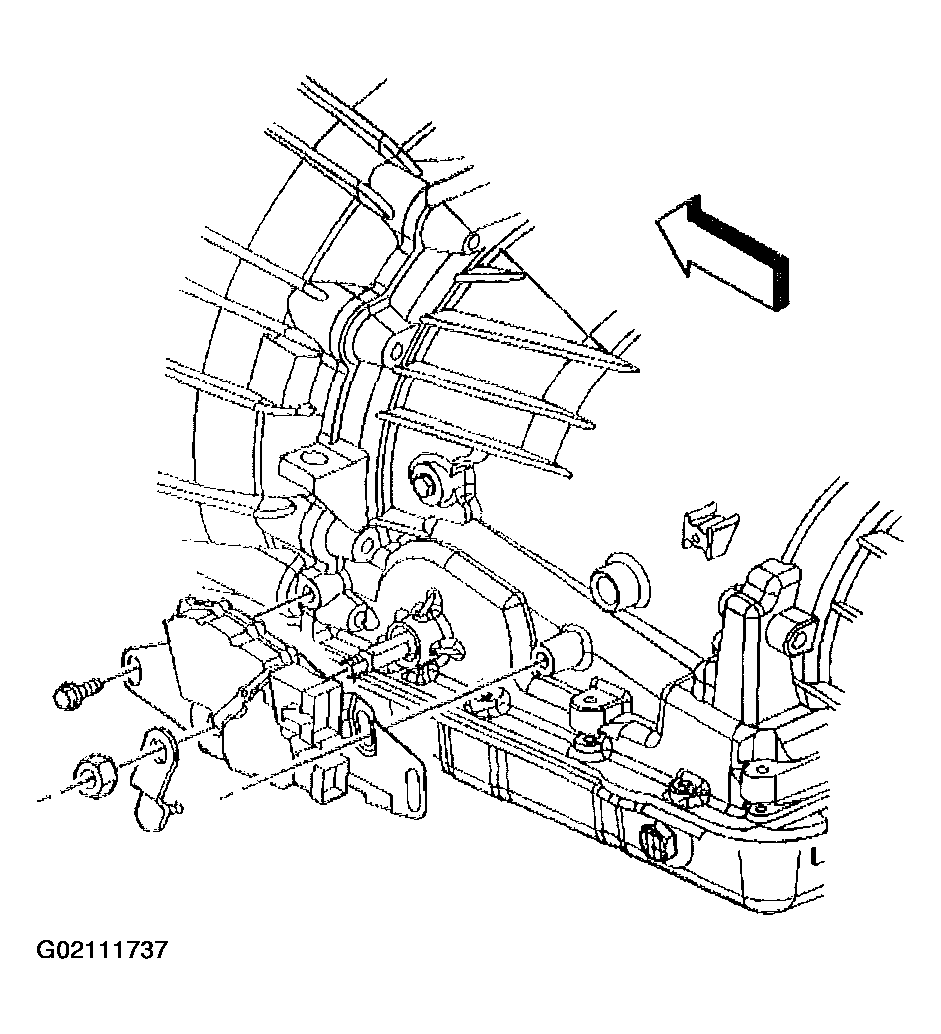

- Install the PNP switch to the transmission manual shaft by aligning the switch hub flats with the manual shaft flats.
- Slide the PNP switch onto the transmission manual shaft until the switch mounting bracket contacts the mounting bosses on the transmission.
Important: If a NEW PNP switch is being installed, the switch will come with a positive assurance bracket. The positive assurance bracket aligns the new switch in its proper position for installation and the use of the park neutral switch aligner will not be necessary.
- Install the PNP switch bolts finger tight.

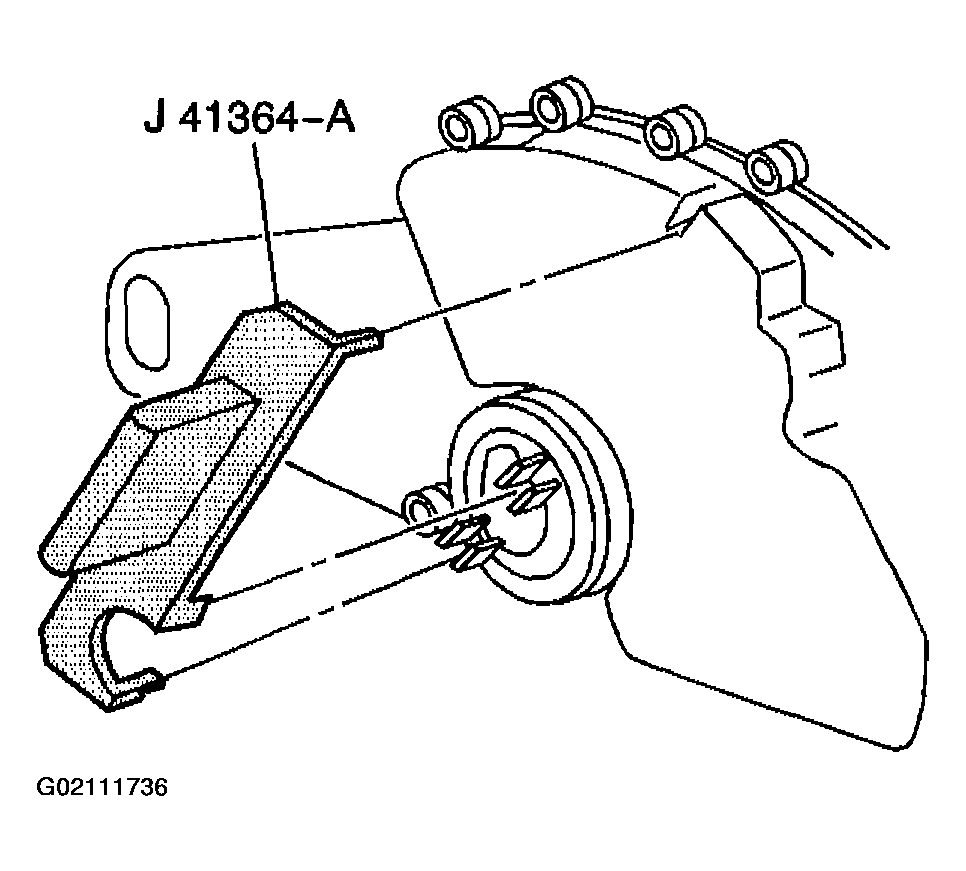

- Install J 41364-A
onto the PNP switch. Ensure that the two slots on the switch where the manual shaft is inserted are lined up with the lower two tabs on the tool.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Rotate the tool until the upper locator pin on the tool is lined up with the slot on the top of the switch.
Tighten
Tighten the bolts to 25 N.m (18 lb ft).
- Remove the J 41364-A from the switch. If installing a new switch, remove the positive assurance bracket at this time.

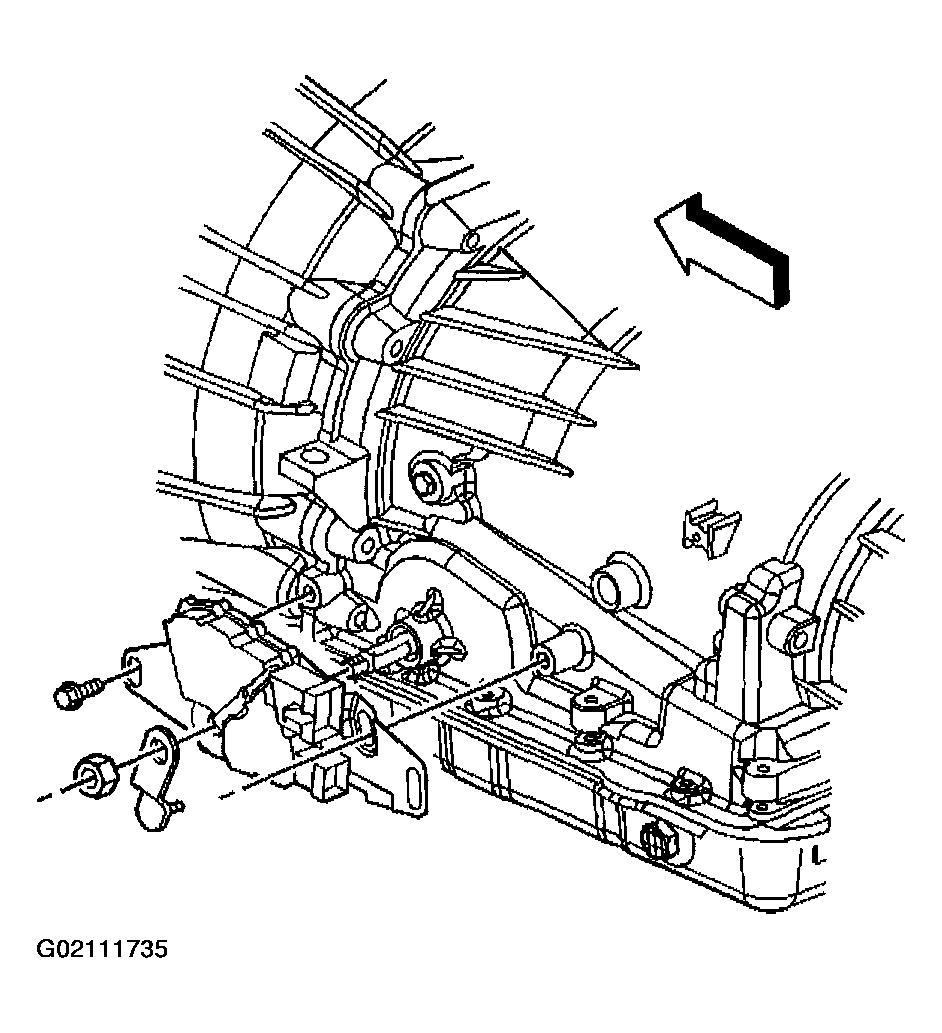

- Install the transmission control lever to the manual shaft with the nut.
Tighten
Tighten the nut to 25 N.m (18 lb ft).

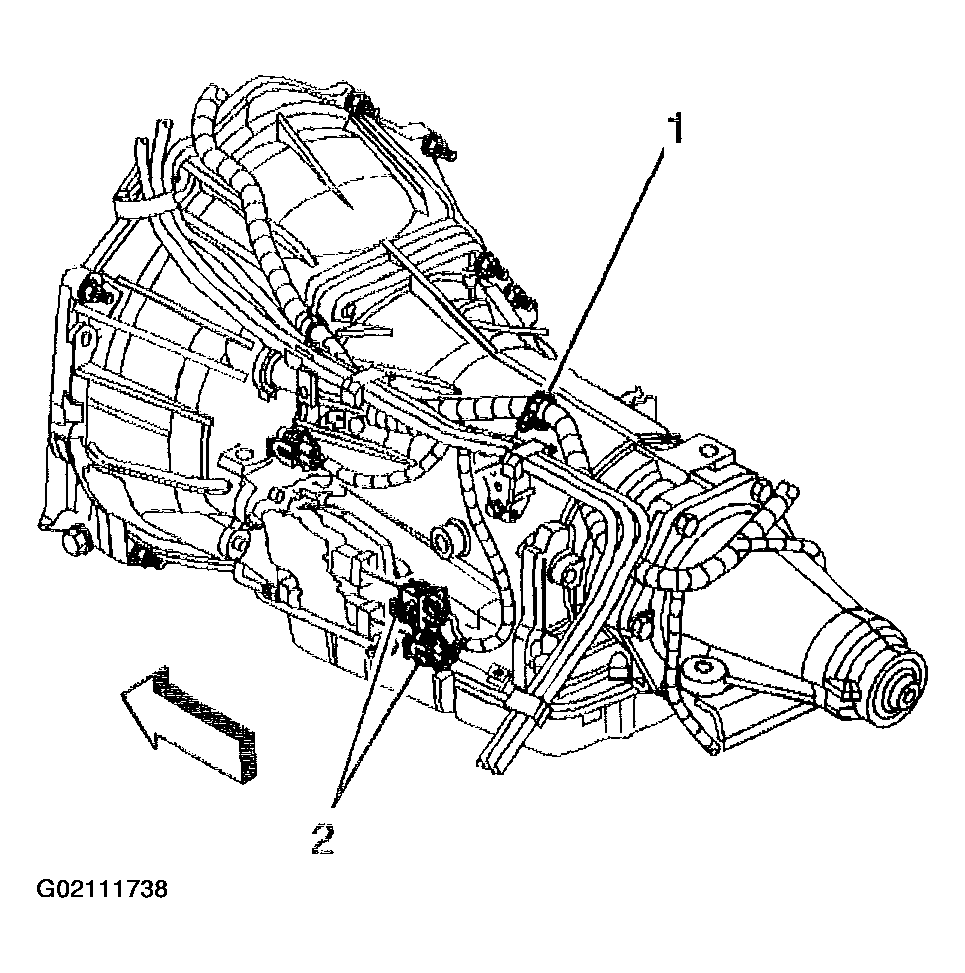

- Connect the PNP switch electrical connectors (2).
- If equipped with 4WD, install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- FRONT in Driveline/Axle.
- Lower the vehicle.
- Check the switch for proper operation. The engine must start in the park (P) or neutral (N) positions only. If proper operation of the switch can not be obtained, replace the switch.
