Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the park brake.
  2. Shift the transmission into neutral.
  3. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  4. Remove the retainer that secures the cable to the bracket.
  5. Depress the tangs and remove the cable from the bracket.

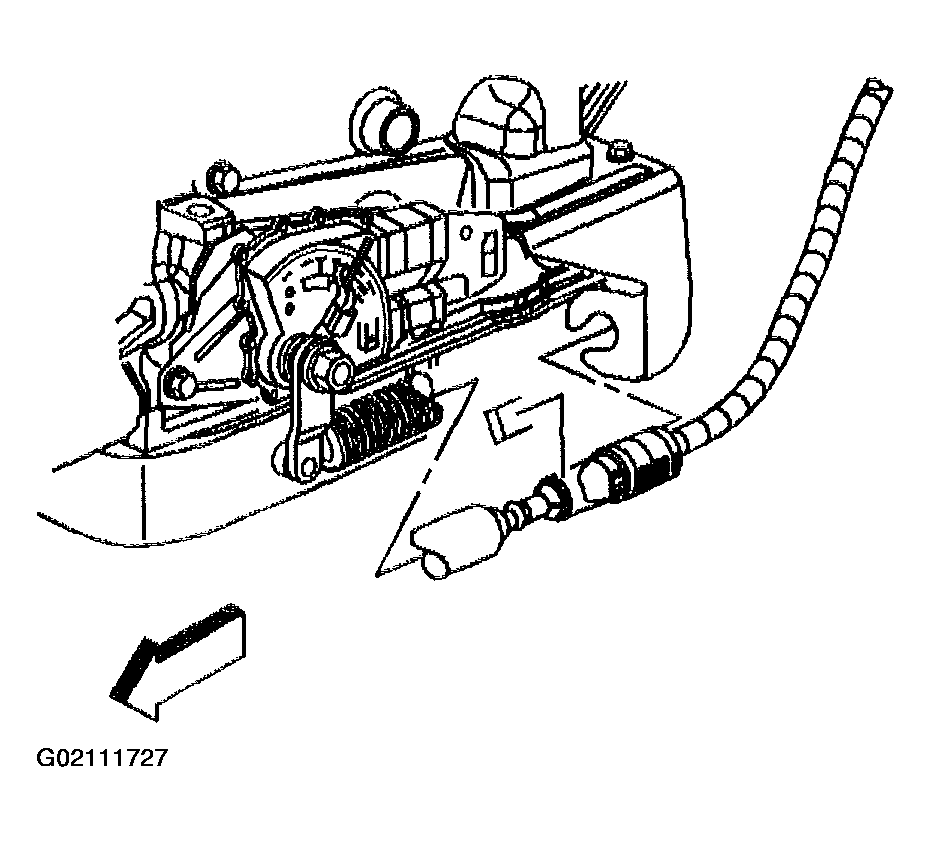

    Fig 1: Removing Cable From Bracket
    G02111727Courtesy of GENERAL MOTORS CORP.
  6. Remove the bolts (1) securing the transmission range selector cable bracket (2) to the transmission.
  7. Remove the transmission range selector cable bracket.

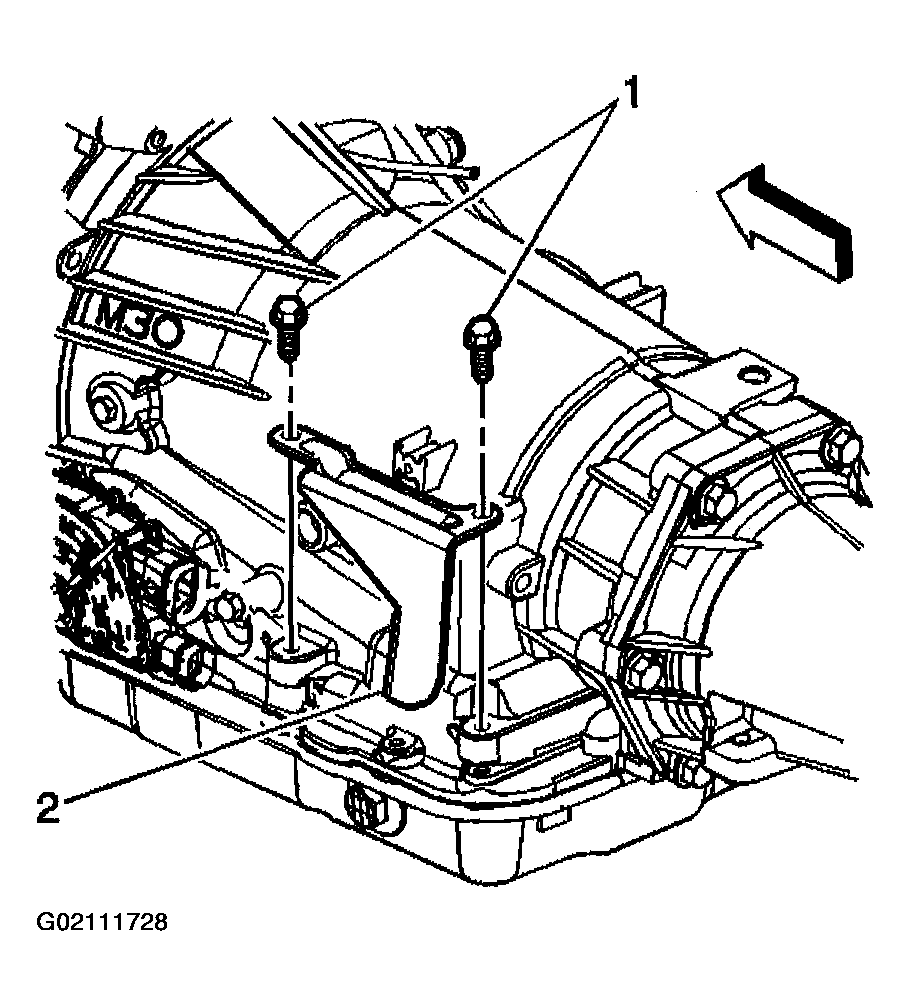

    Fig 2: Removing Bolts Securing Transmission Range Selector Cable Bracket
    G02111728Courtesy of GENERAL MOTORS CORP.
