DTC P0719: Open Brake Switch Circuit: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

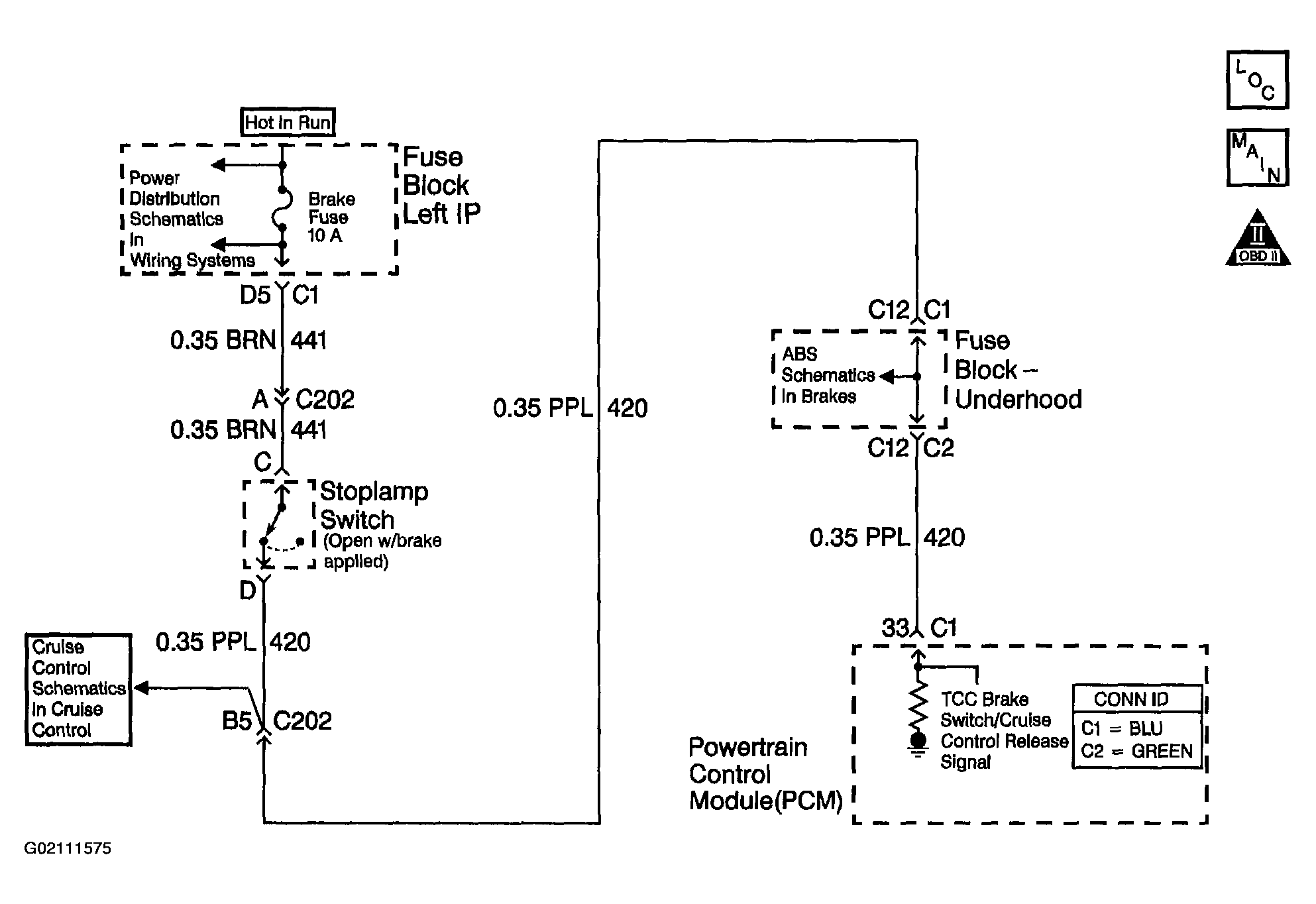

Fig 1: DTC P0719 Circuit Description Diagram
G02111575Courtesy of GENERAL MOTORS CORP.
