Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 3. This step tests for a short to ground condition.
  2. 4. This step tests for an internal fault within the transmission by creating an open.

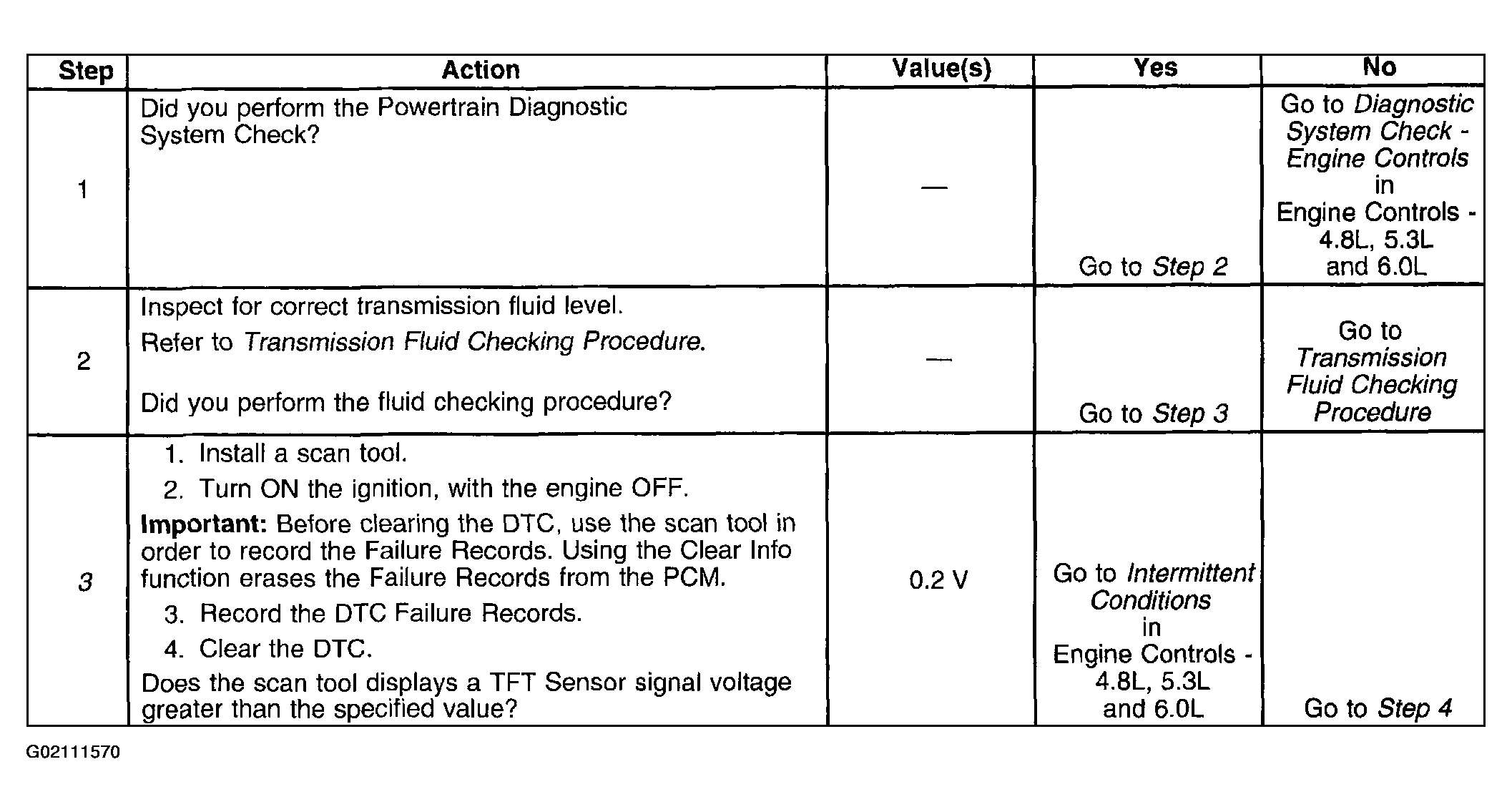

    Fig 1: Diagnostic Trouble Code (DTC P0712) Table (Step 1-3)
    G02111570Courtesy of GENERAL MOTORS CORP.

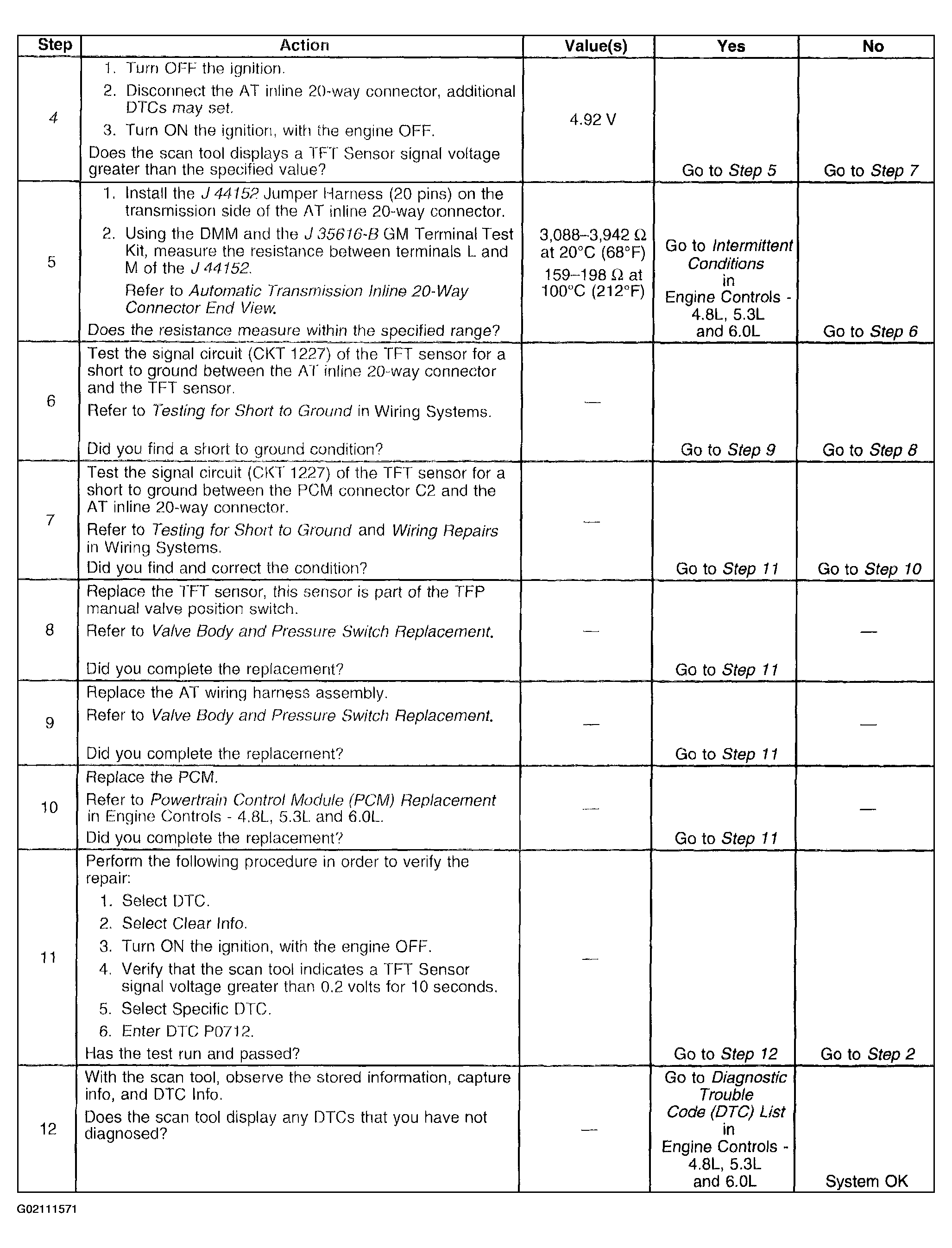

    Fig 2: Diagnostic Trouble Code (DTC P0712) Table (Step 4-12)
    G02111571Courtesy of GENERAL MOTORS CORP.
