Machine Set-up

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

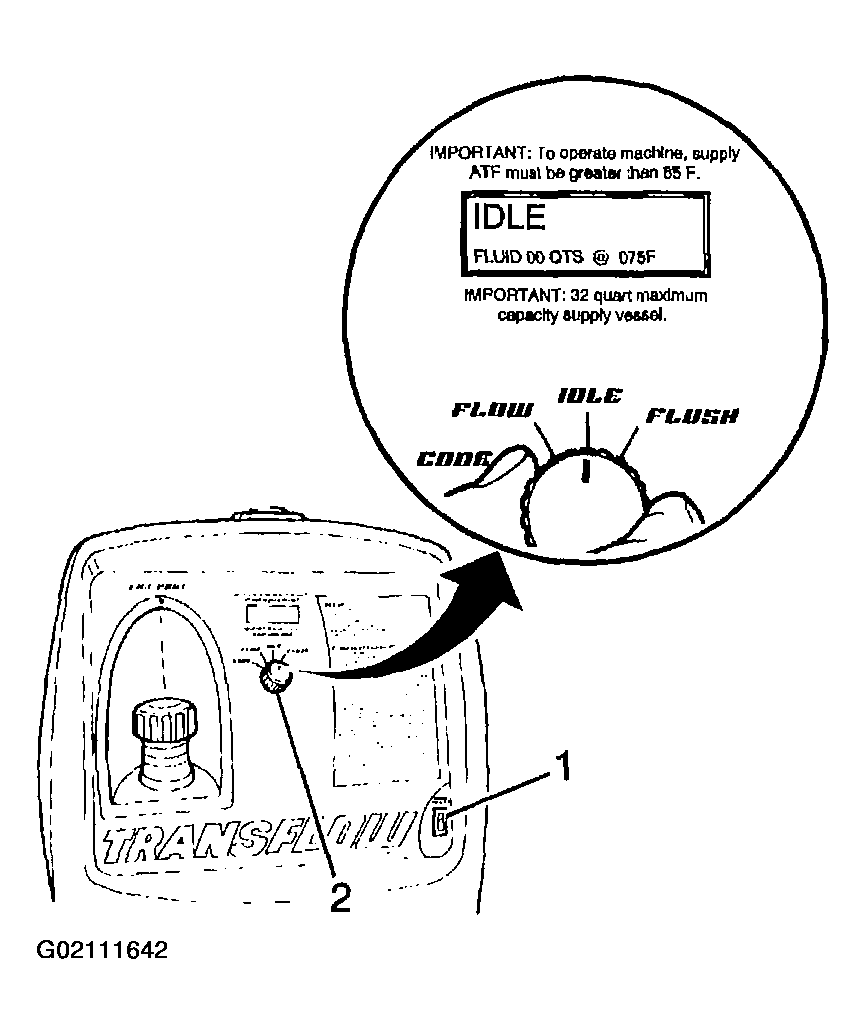

Fig 1: Identifying Machine Set-Up (1 Of 4)
G02111642Courtesy of GENERAL MOTORS CORP.
  1. Verify that the main power switch (1) is in the OFF position.
  2. Place the main function switch (2) in the IDLE position.

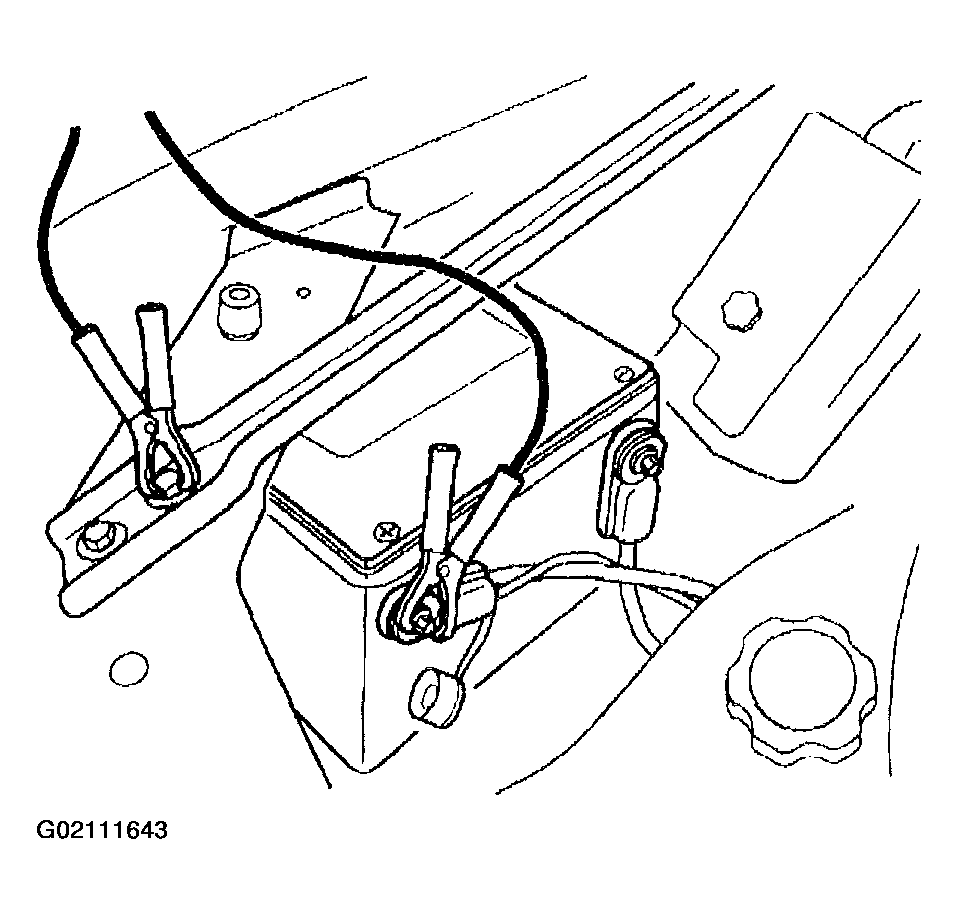

    Fig 2: Identifying Machine Set-Up (2 Of 4)
    G02111643Courtesy of GENERAL MOTORS CORP.
  3. Connect J 45096  to the vehicle 12V DC power source by connecting the red battery clip to the positive, +, battery post on the vehicle and connect the negative lead to a known good chassis ground.
  4. Turn the main power switch to the ON position.

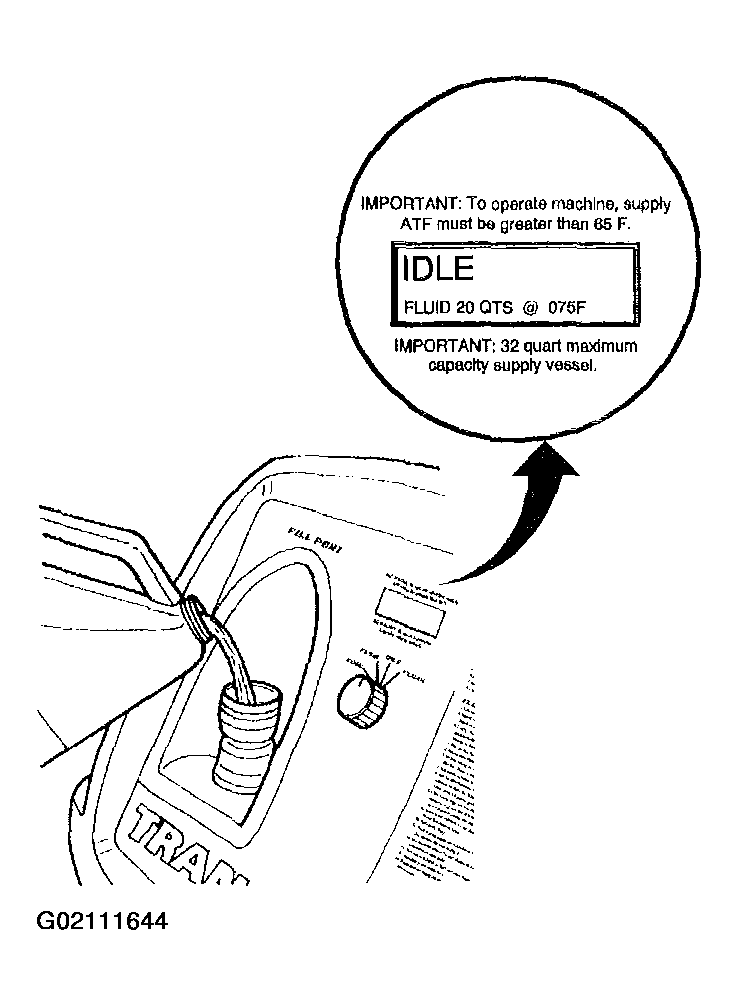

    Fig 3: Identifying Machine Set-Up (3 Of 4)
    G02111644Courtesy of GENERAL MOTORS CORP.
    NOTE: Do not overfill the supply vessel. Damage to the unit may result. To verify the fluid level, view the LCD screen display while filling the unit, to ensure the fluid level does not exceed 30 L (32 qt).
  5. Fill the supply tank with DEXRON®III/Mercon®, or equivalent, through the fill port.
  6. Reinstall and tighten the fill cap.

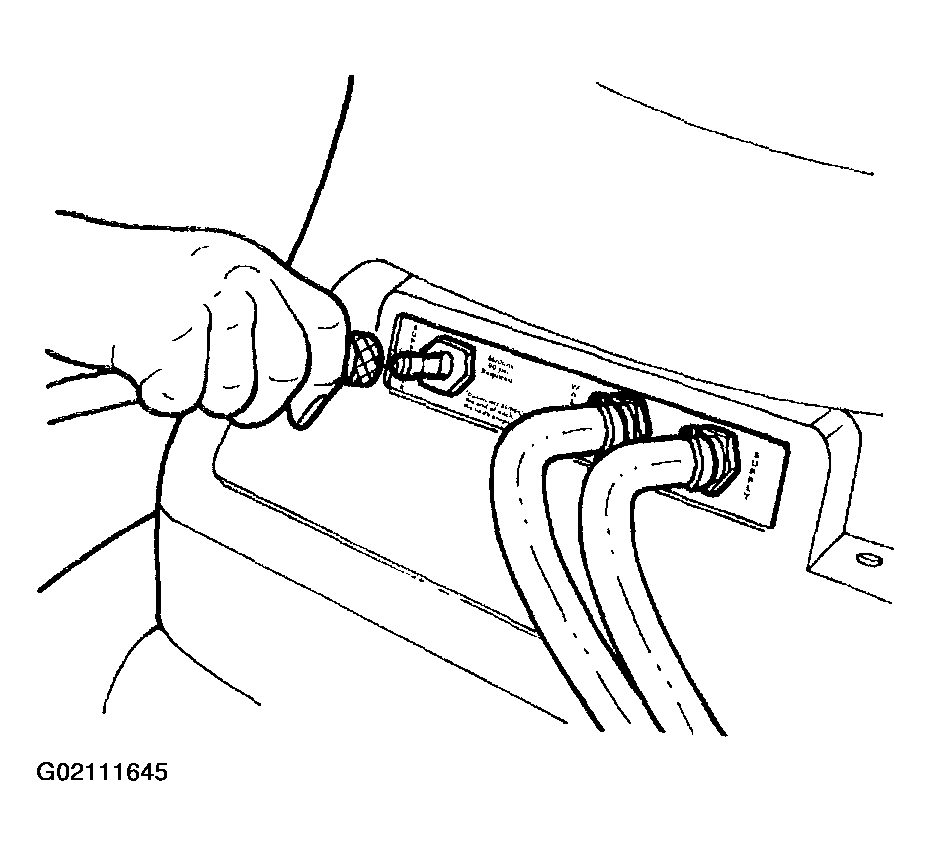

    Fig 4: Identifying Machine Set-Up (4 Of 4)
    G02111645Courtesy of GENERAL MOTORS CORP.
  7. Connect a shop air supply hose to the quick-disconnect on the rear panel marked SUPPLY AIR.
