Transmission Identification Information

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

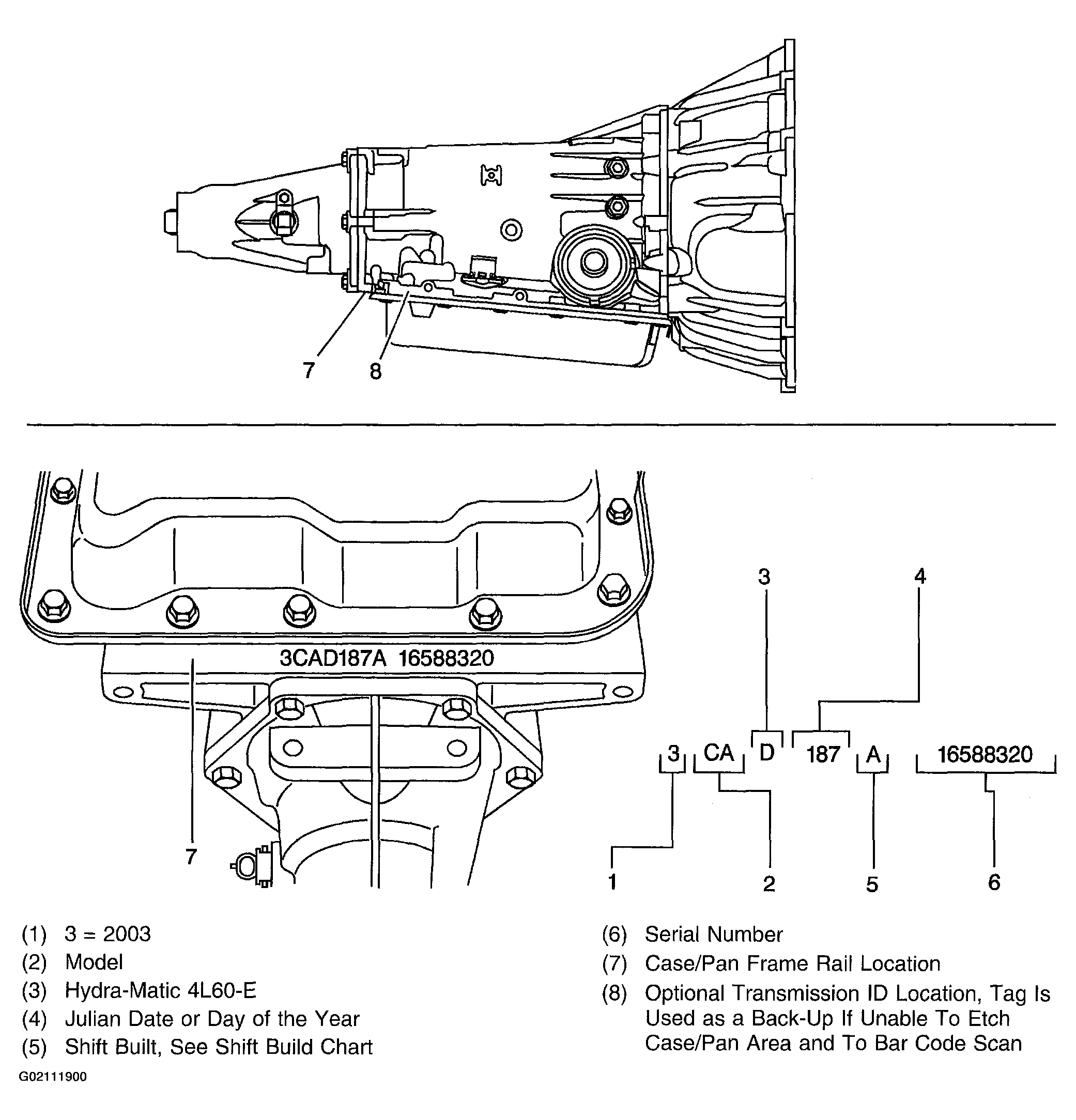

Fig 1: Identifying Components Toledo Or Romulus Build

Courtesy of GENERAL MOTORS CORP.

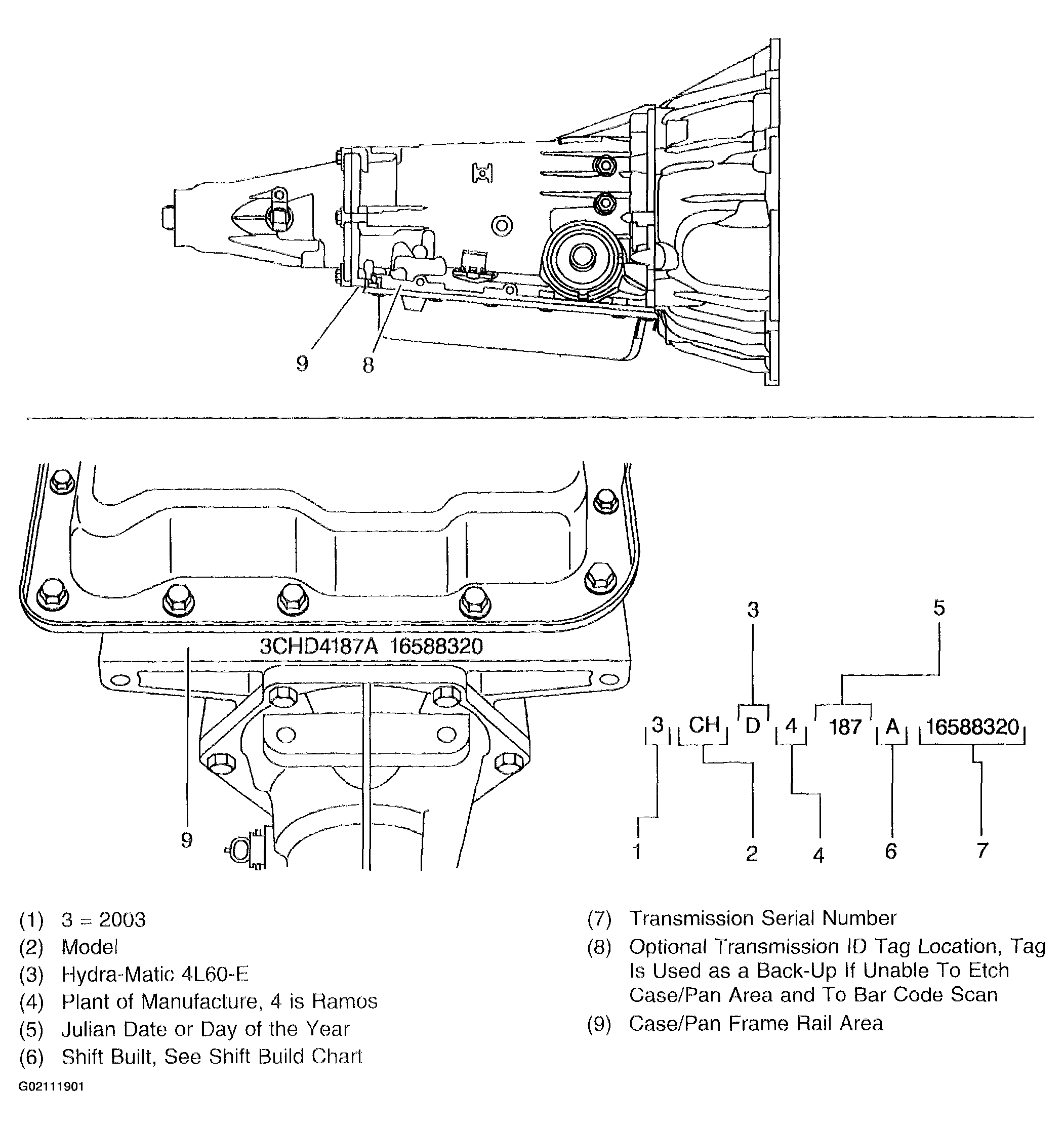

Fig 2: Identifying Components Ramos Arizpe, Mexico

Courtesy of GENERAL MOTORS CORP.

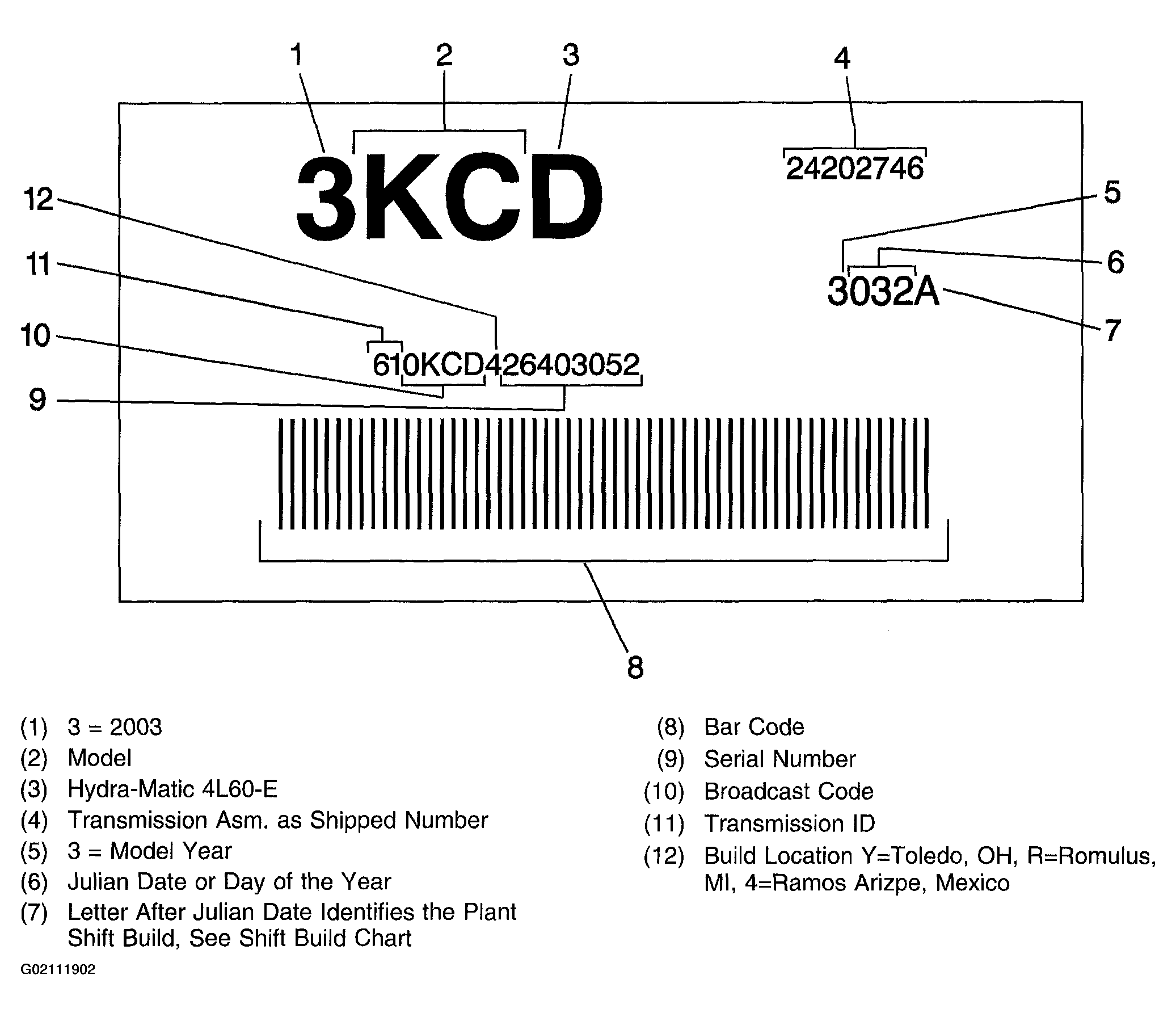

Fig 3: Identifying Bar Code Label Contents

Courtesy of GENERAL MOTORS CORP.

Fig 4: Bar Code Label Contents Description Table

Courtesy of GENERAL MOTORS CORP.
