Disassembled Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

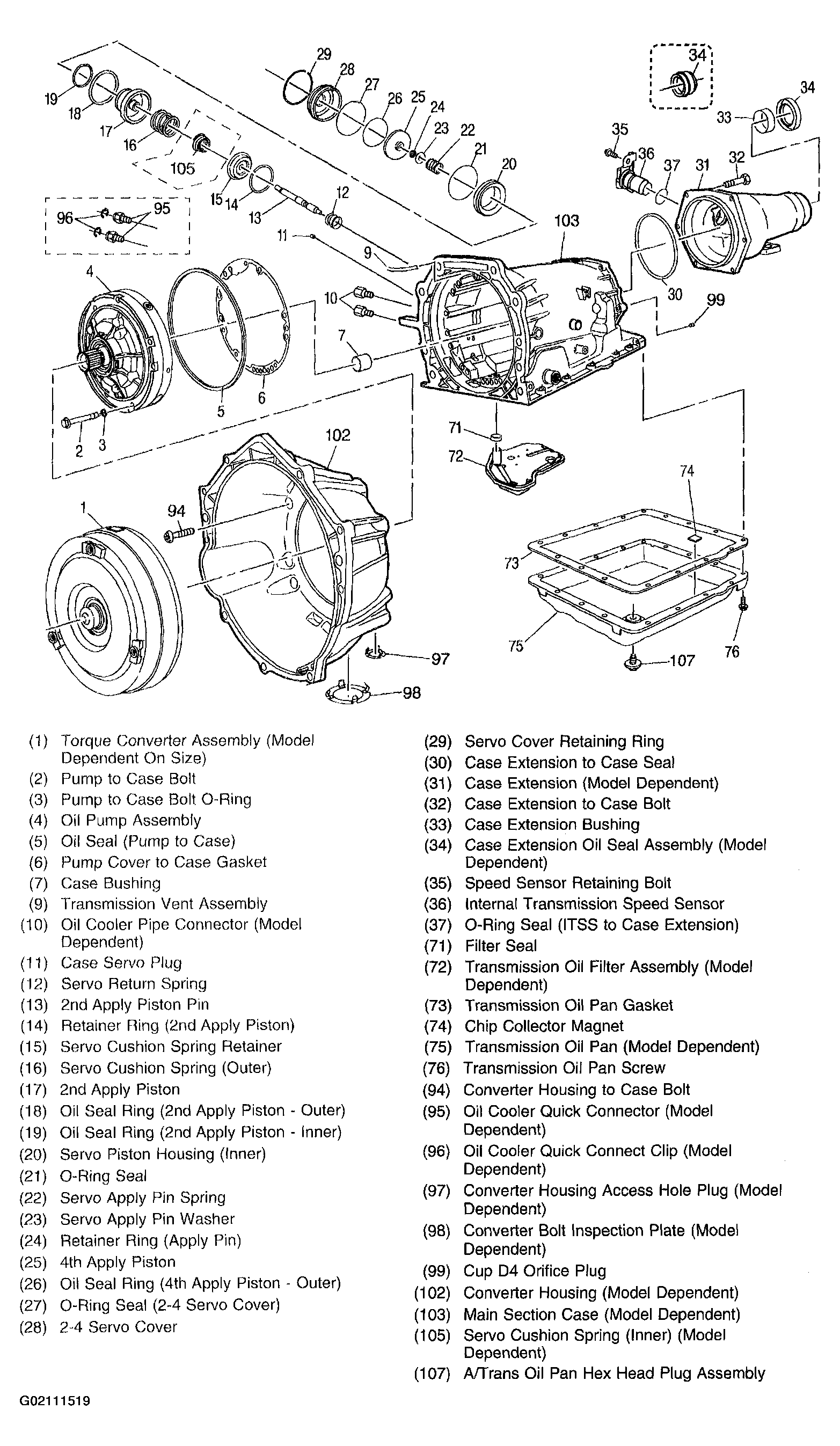

Fig 1: Disassembled View Case And Associated Parts (1 Of 2)

G02111519

Courtesy of GENERAL MOTORS CORP.

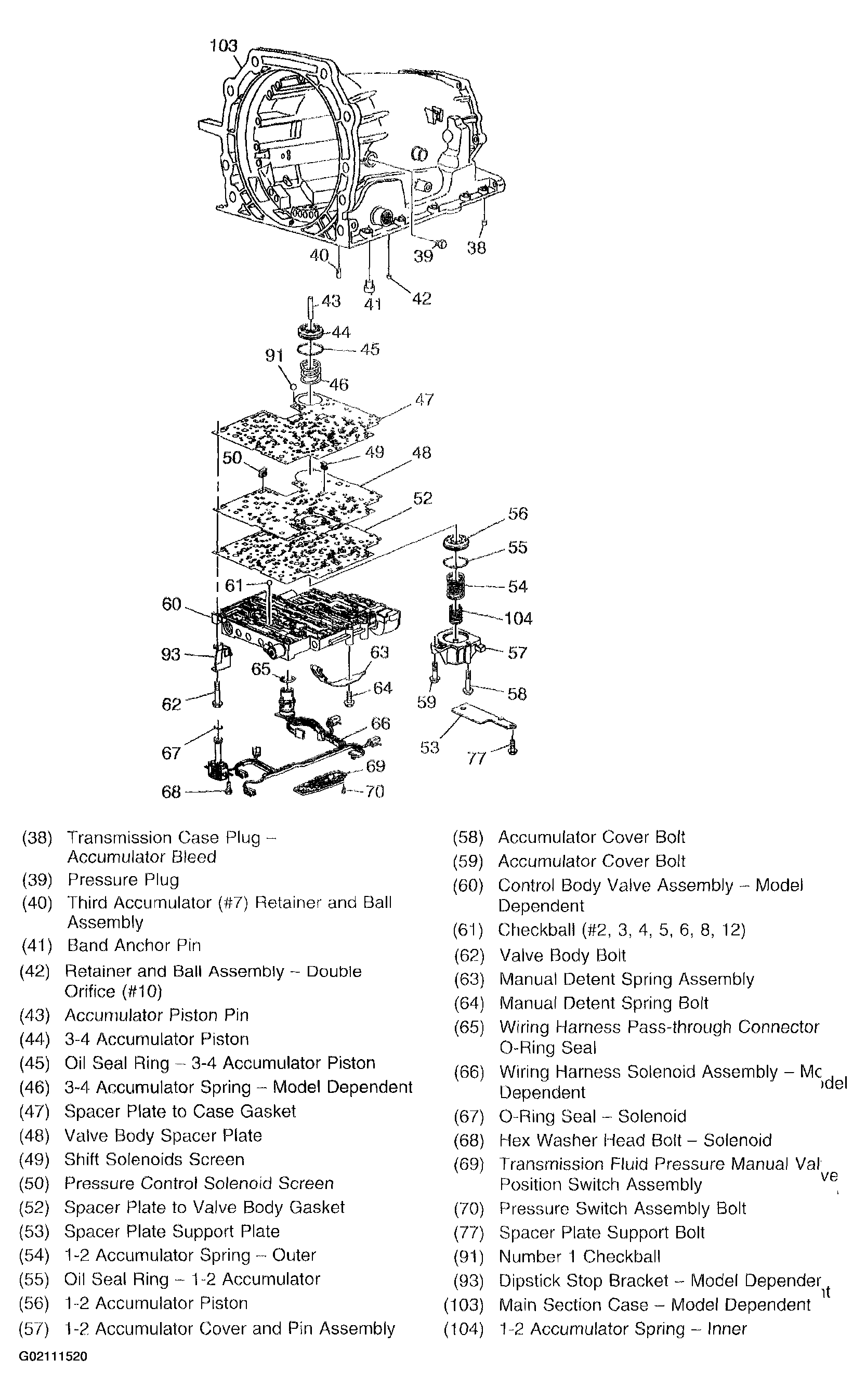

Fig 2: Disassembled View Case And Associated Parts (2 Of 2)

G02111520

Courtesy of GENERAL MOTORS CORP.

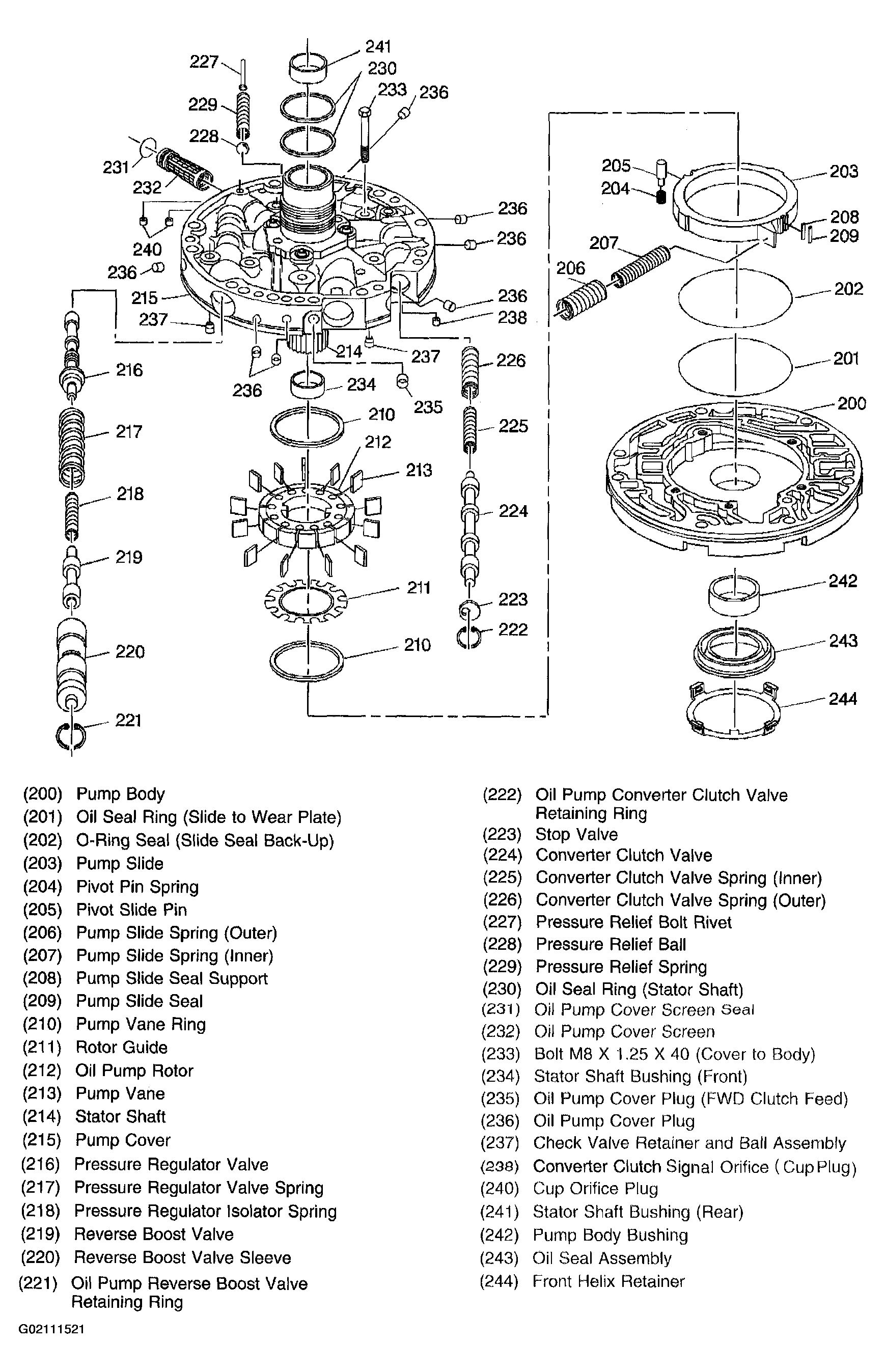

Fig 3: Disassembled View Oil Pump Assembly

G02111521

Courtesy of GENERAL MOTORS CORP.

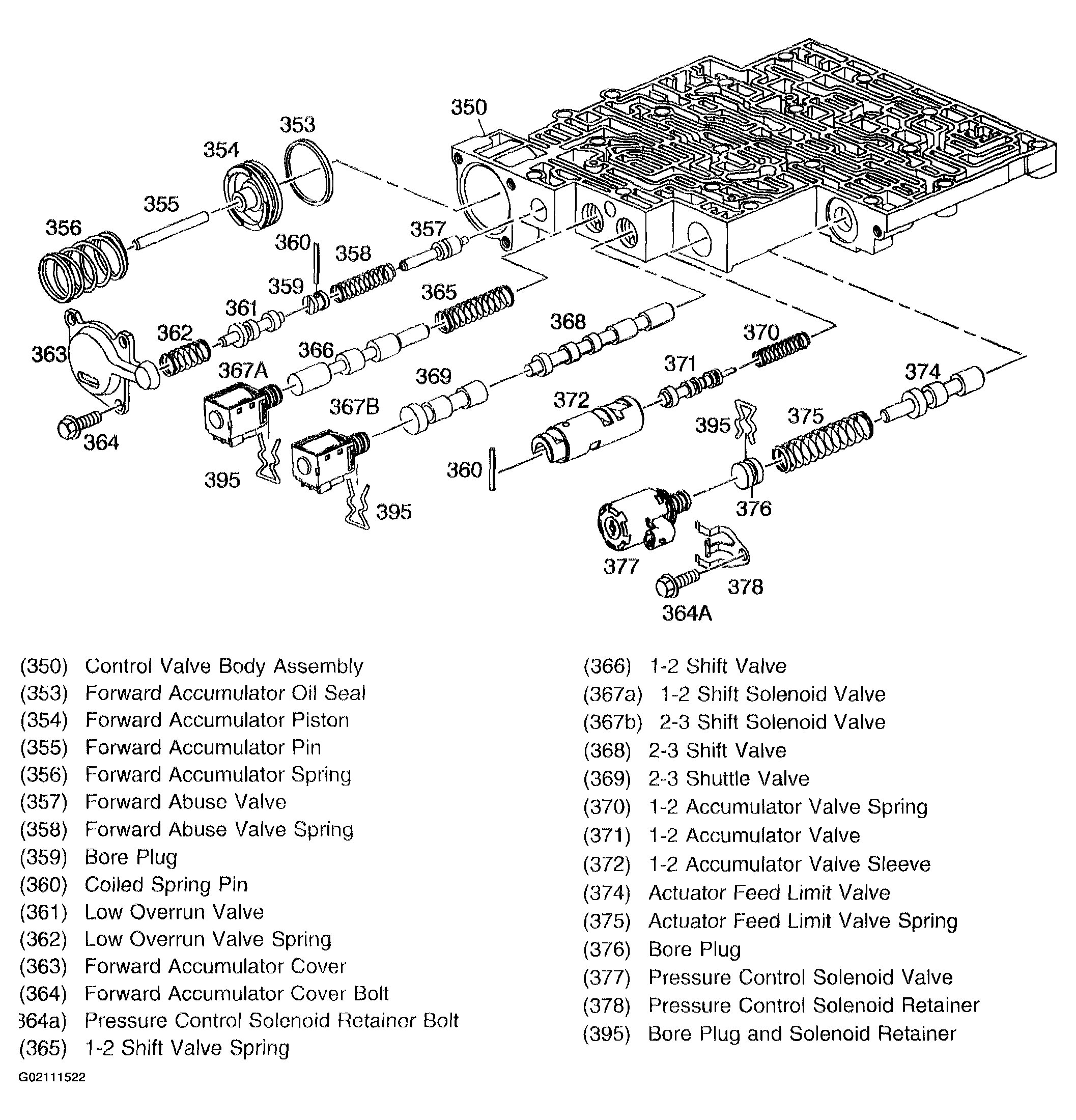

Fig 4: Disassembled View Control Valve Body Assembly (1 Of 2)

G02111522

Courtesy of GENERAL MOTORS CORP.

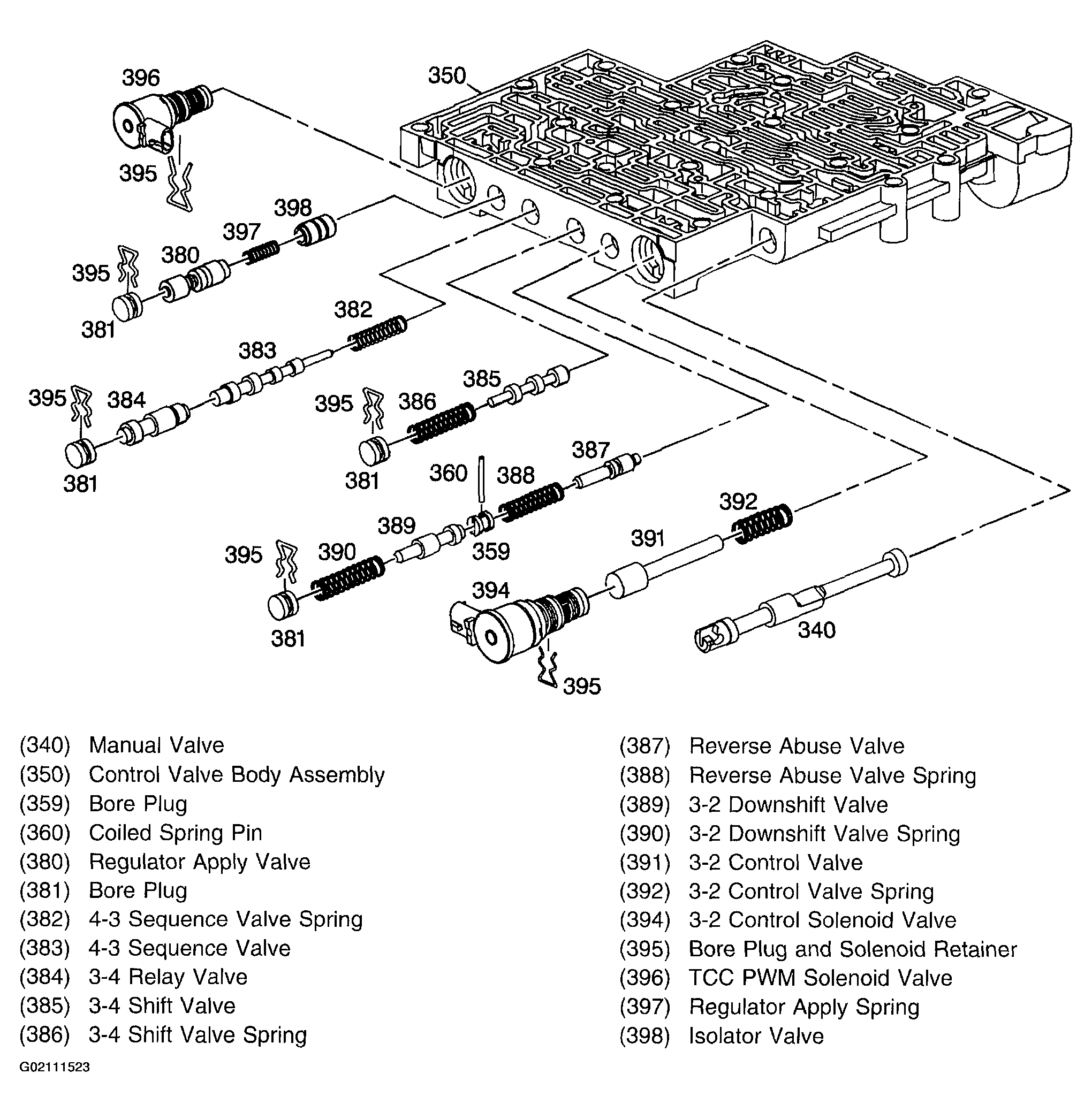

Fig 5: Disassembled View Control Valve Body Assembly (2 Of 2)

G02111523

Courtesy of GENERAL MOTORS CORP.

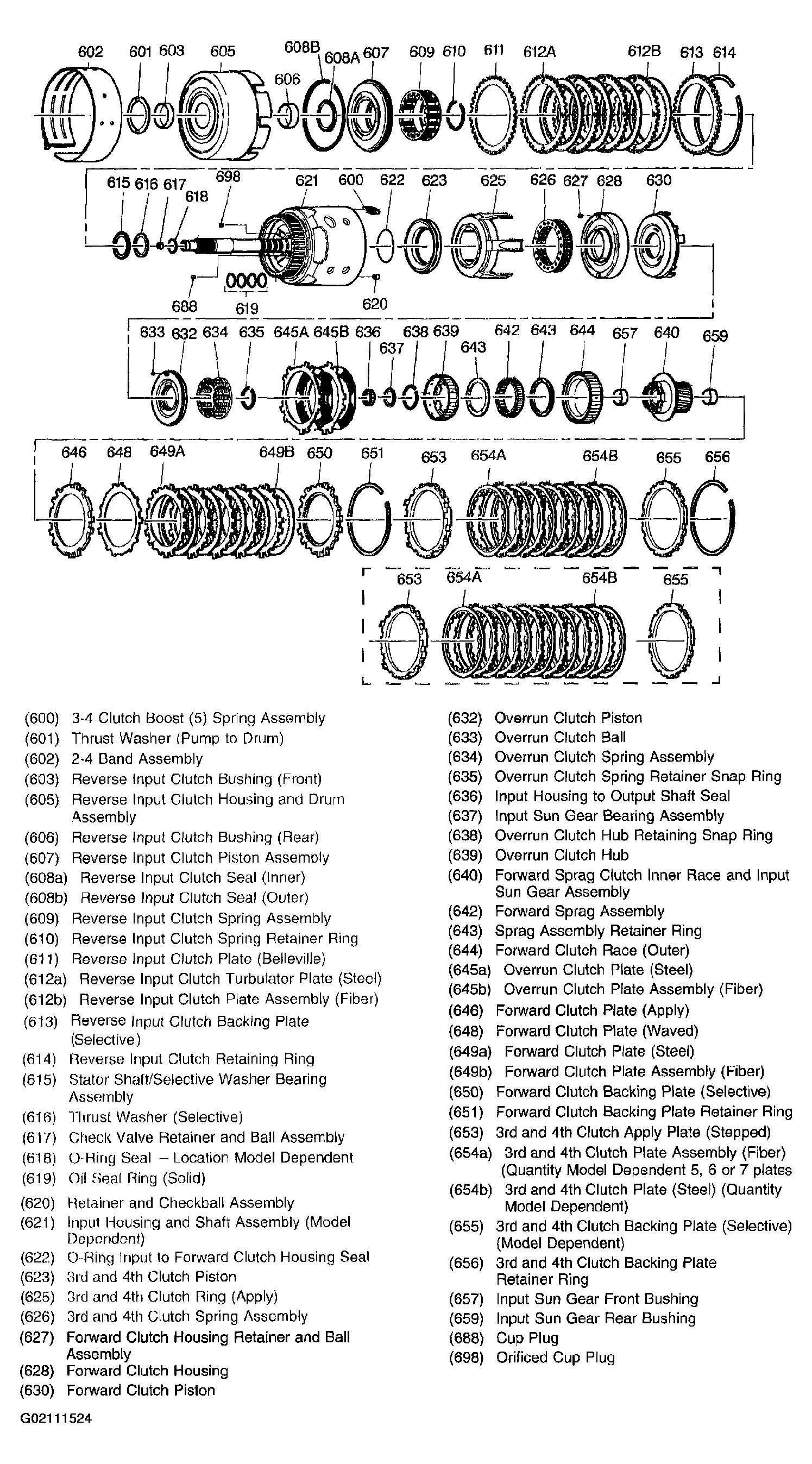

Fig 6: Disassembled View Internal Parts (1 Of 2)

G02111524

Courtesy of GENERAL MOTORS CORP.

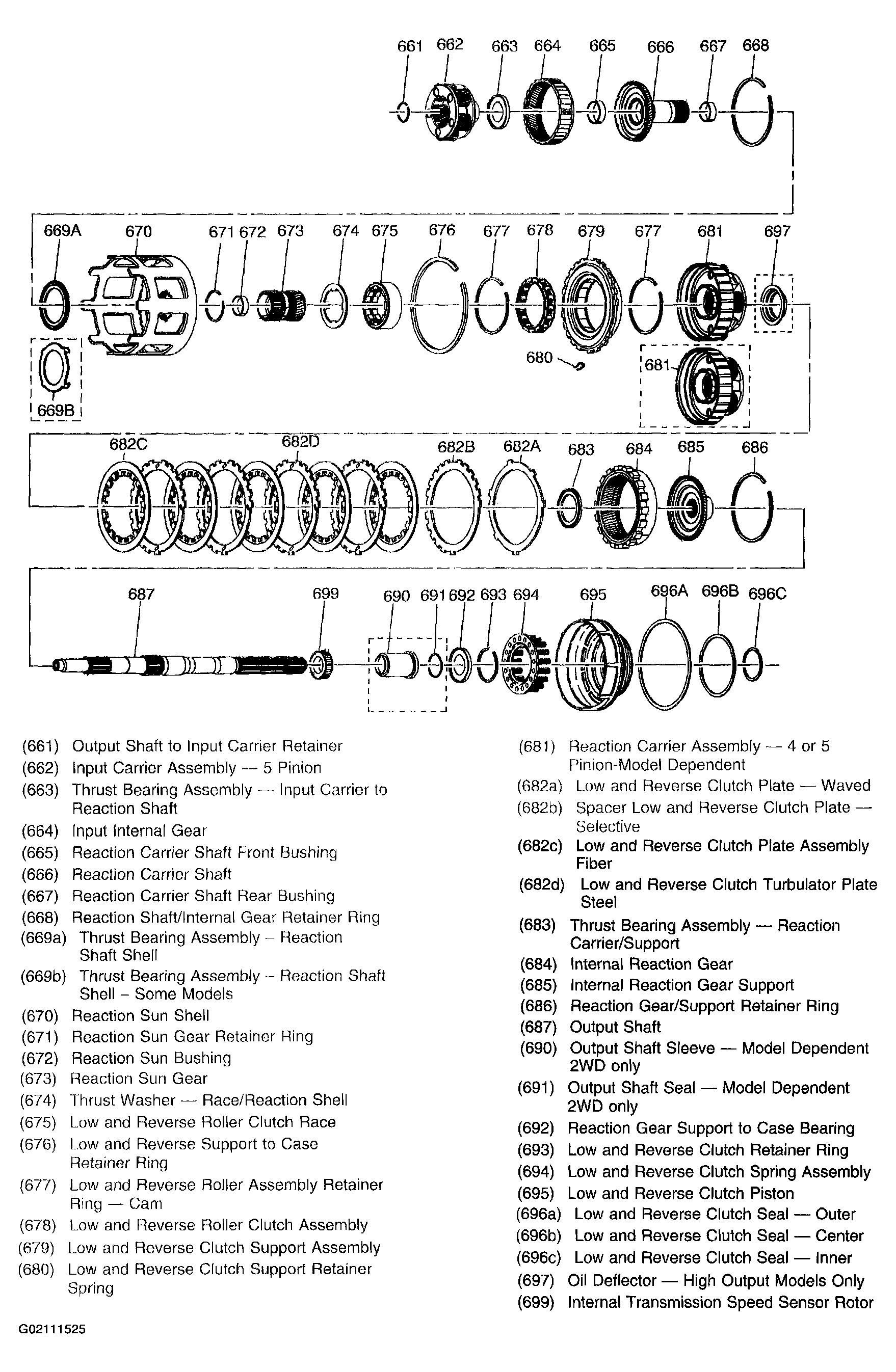

Fig 7: Disassembled View Internal Parts (2 Of 2)

G02111525

Courtesy of GENERAL MOTORS CORP.

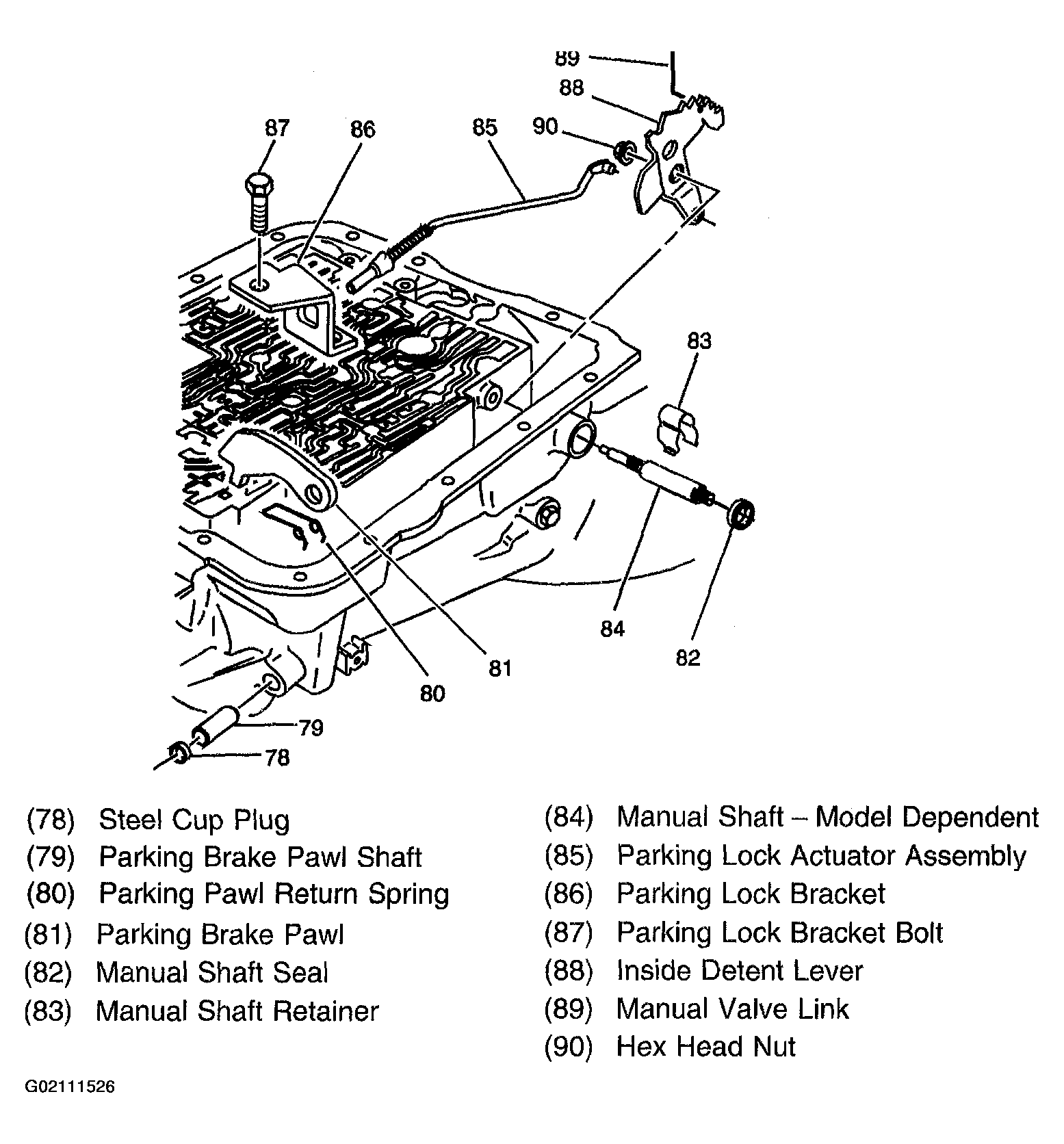

Fig 8: Disassembled View Parking Lock And Manual Shift Shaft Assembly

G02111526

Courtesy of GENERAL MOTORS CORP.
