Automatic Transmission Related Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

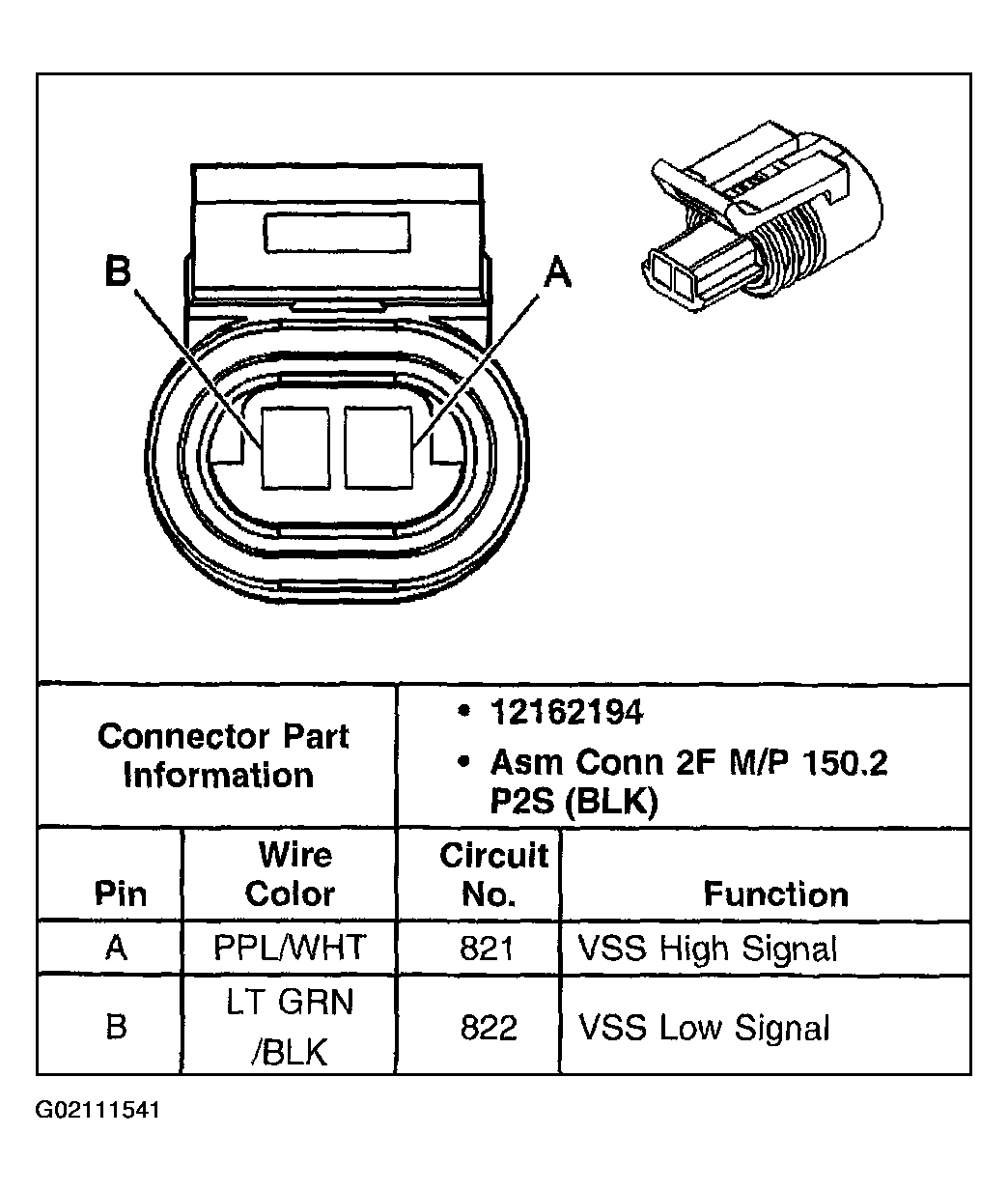

Fig 1: Identifying Vehicle Speed Sensor Assembly Connector, Wiring Harness Side
G02111541Courtesy of GENERAL MOTORS CORP.

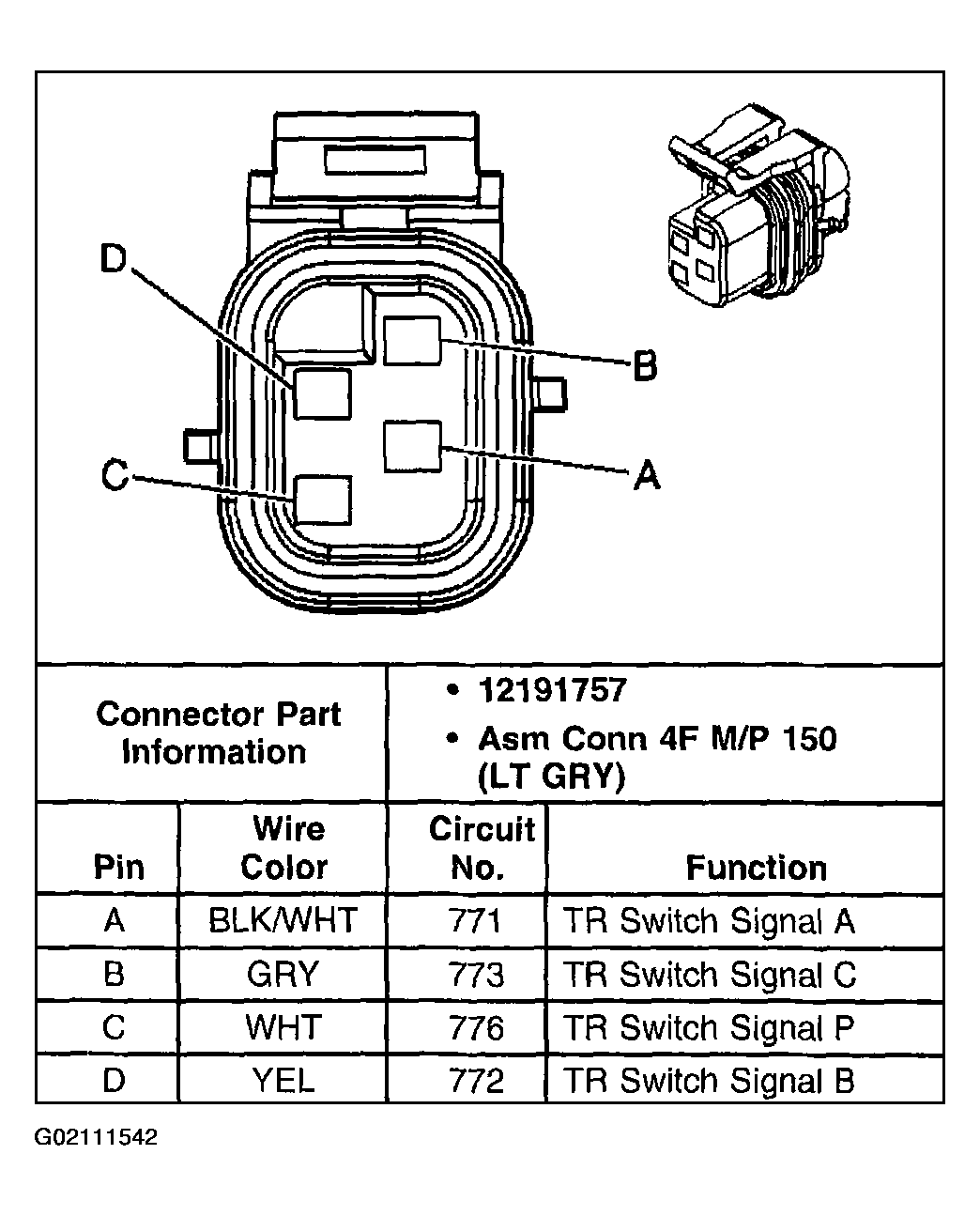

Fig 2: Identifying Transmission Range Switch Connector, Wiring Harness Side
G02111542Courtesy of GENERAL MOTORS CORP.

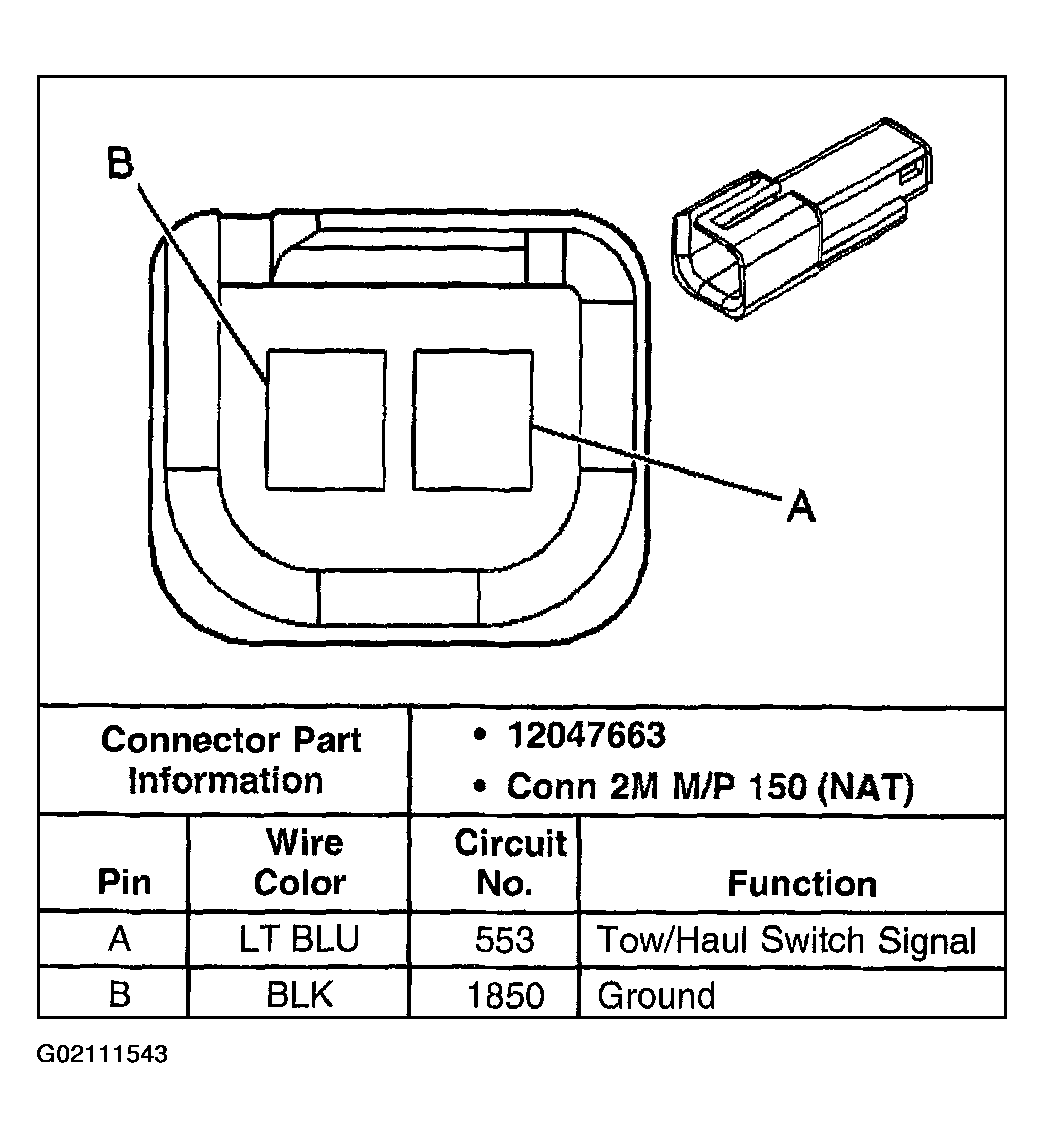

Fig 3: Identifying Tow/Haul Switch Connector, Column Wiring Harness Side
G02111543Courtesy of GENERAL MOTORS CORP.
