Automatic Transmission Internal Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

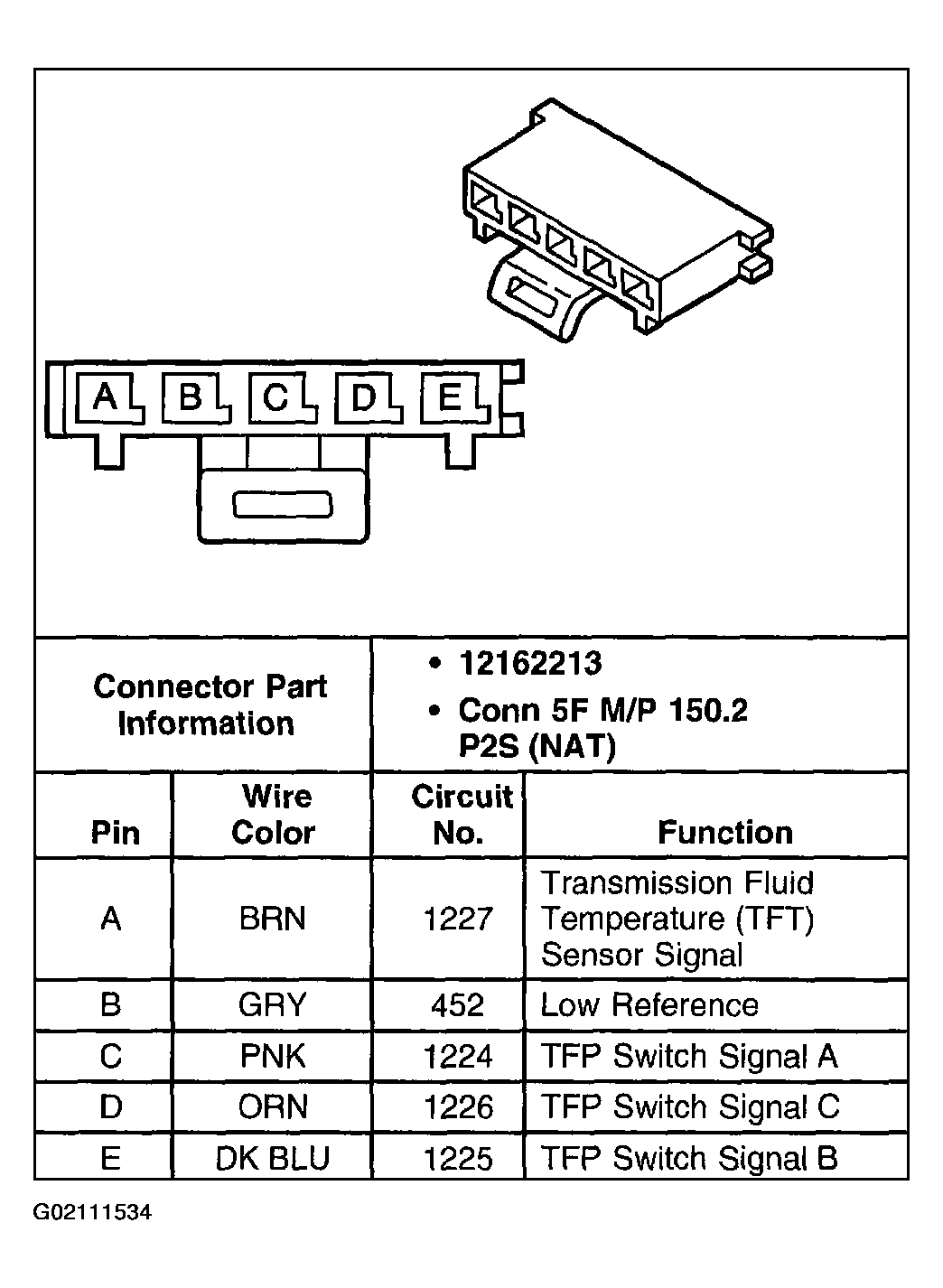

Fig 1: Identifying Automatic Transmission Fluid Pressure (TFP) Manual Valve Position Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying 1 - 2 Shift Solenoid (SS) Valve Connector Terminal, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

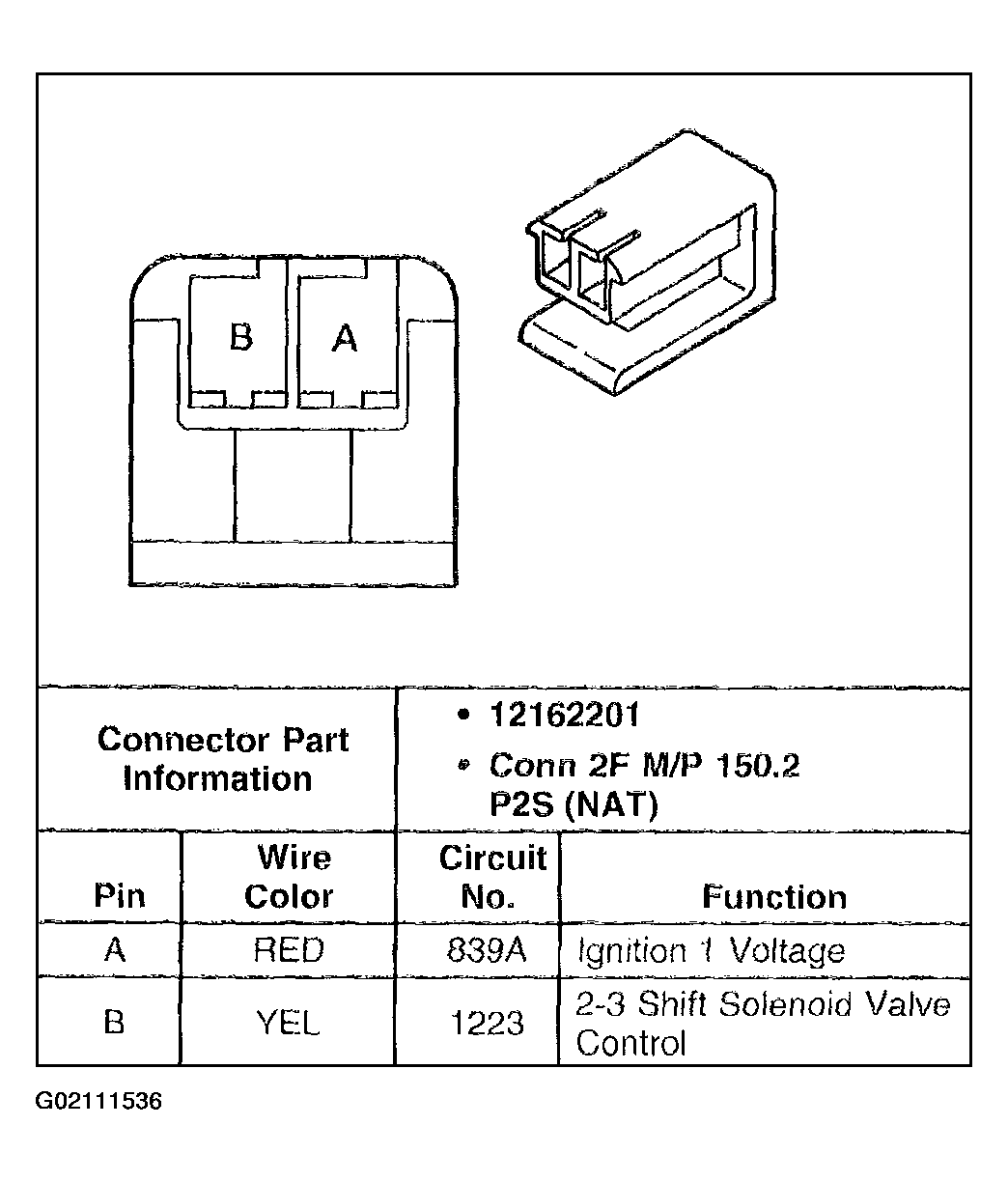

Fig 3: Identifying 2 - 3 Shift Solenoid (SS) Valve Connector Terminal, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

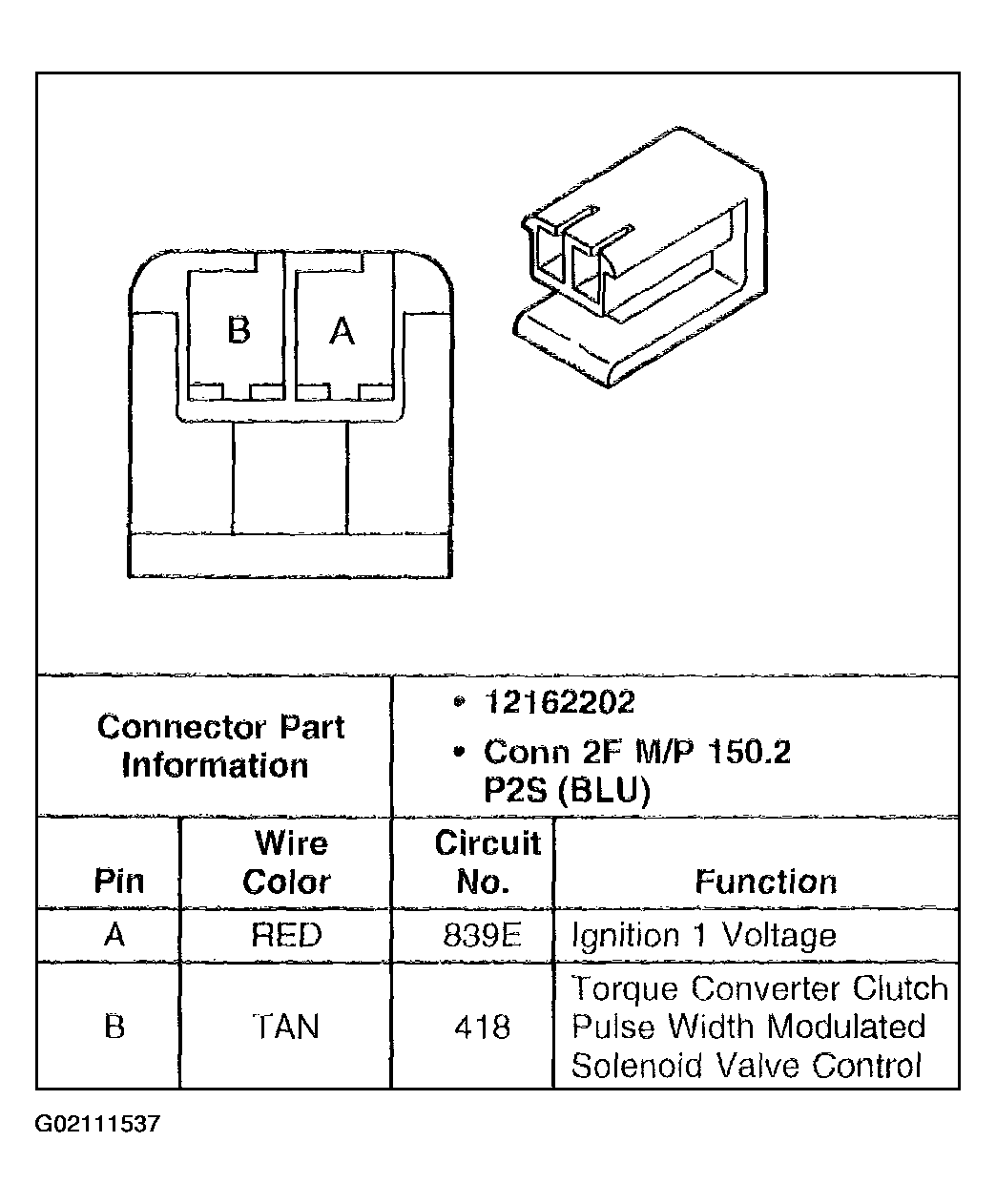

Fig 4: Identifying Torque Converter Clutch Pulse Width Modulated (TCC PWM) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

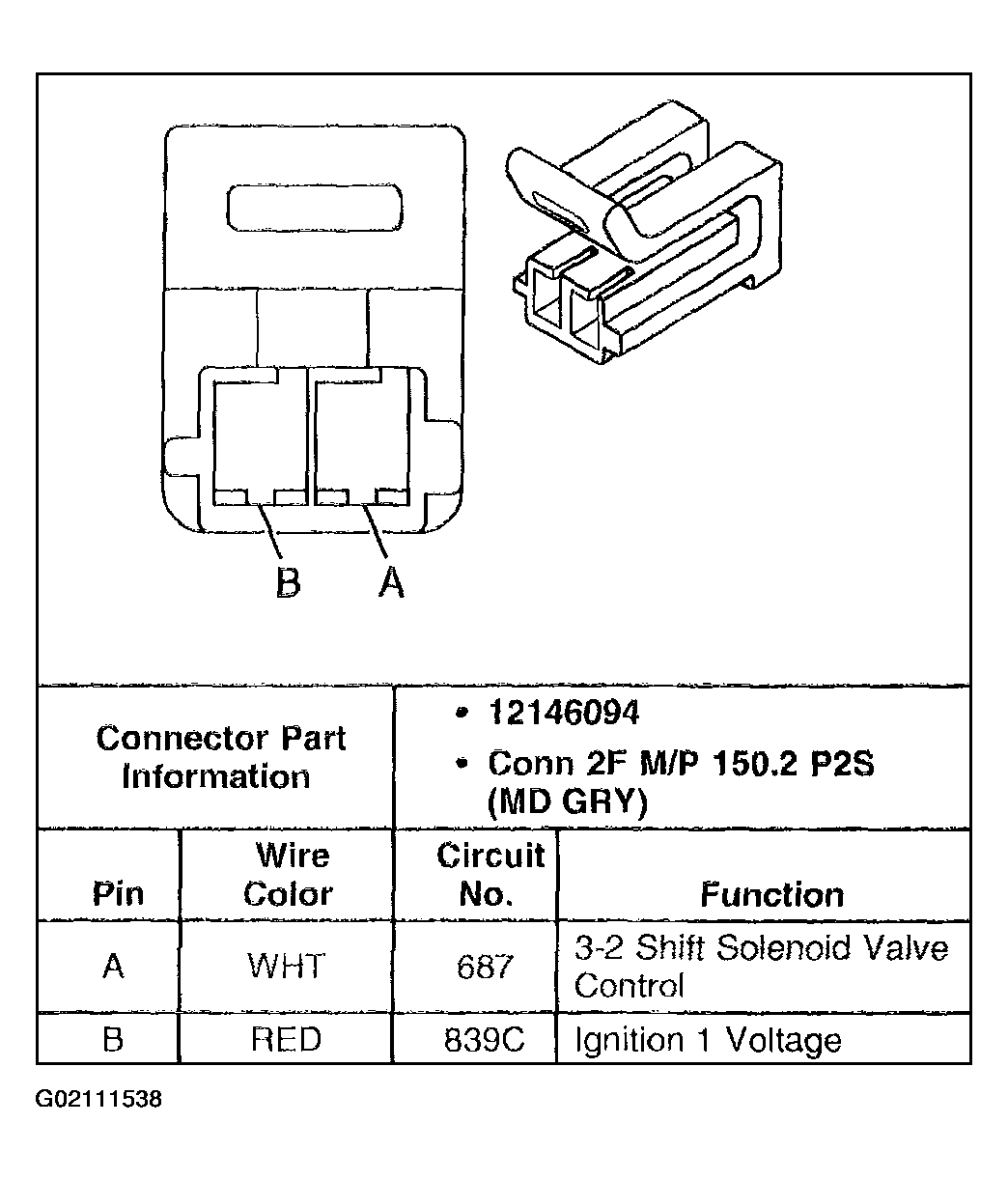

Fig 5: Identifying 3 - 2 Shift Solenoid (SS) Valve Assembly Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

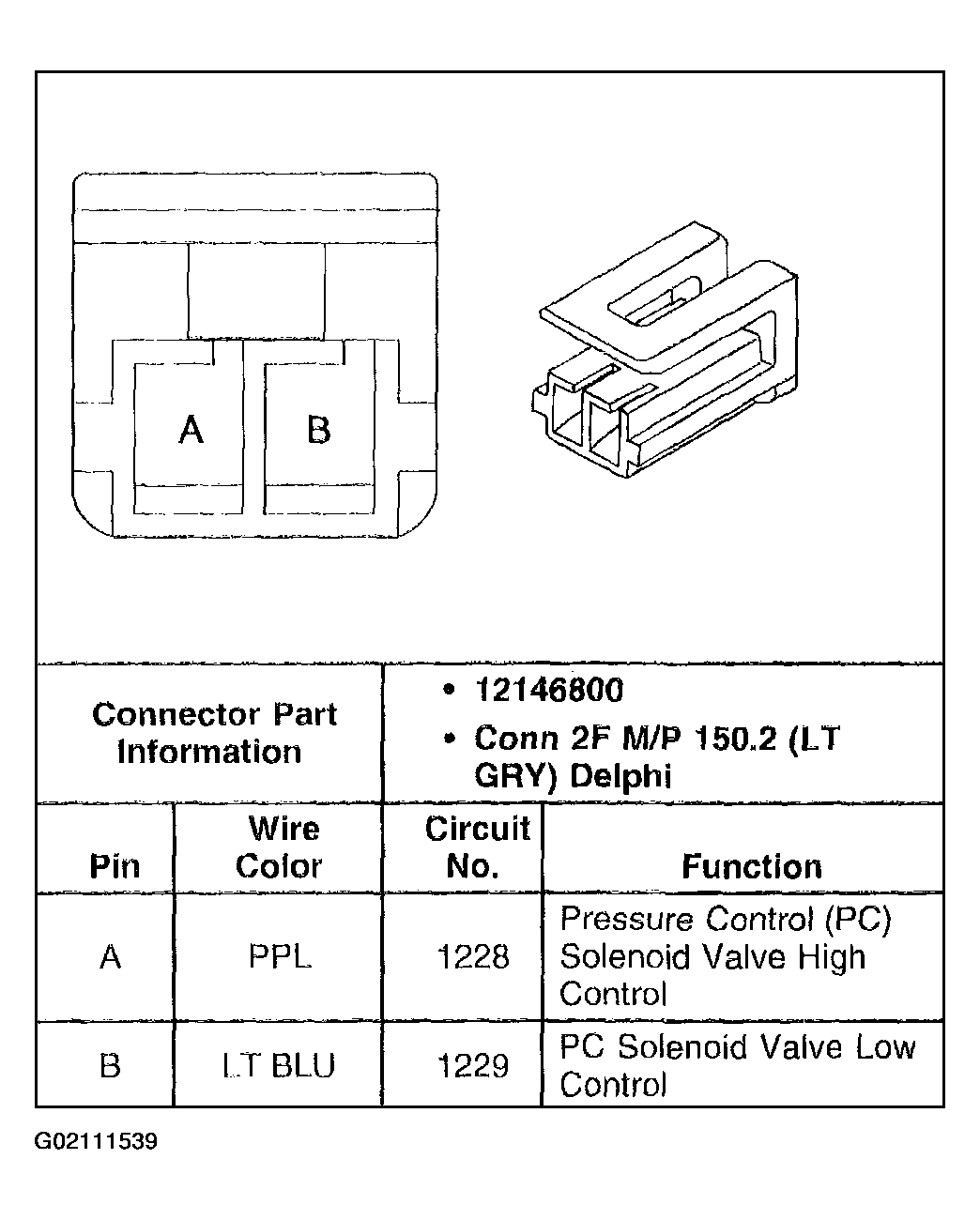

Fig 6: Identifying Pressure Control (PC) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

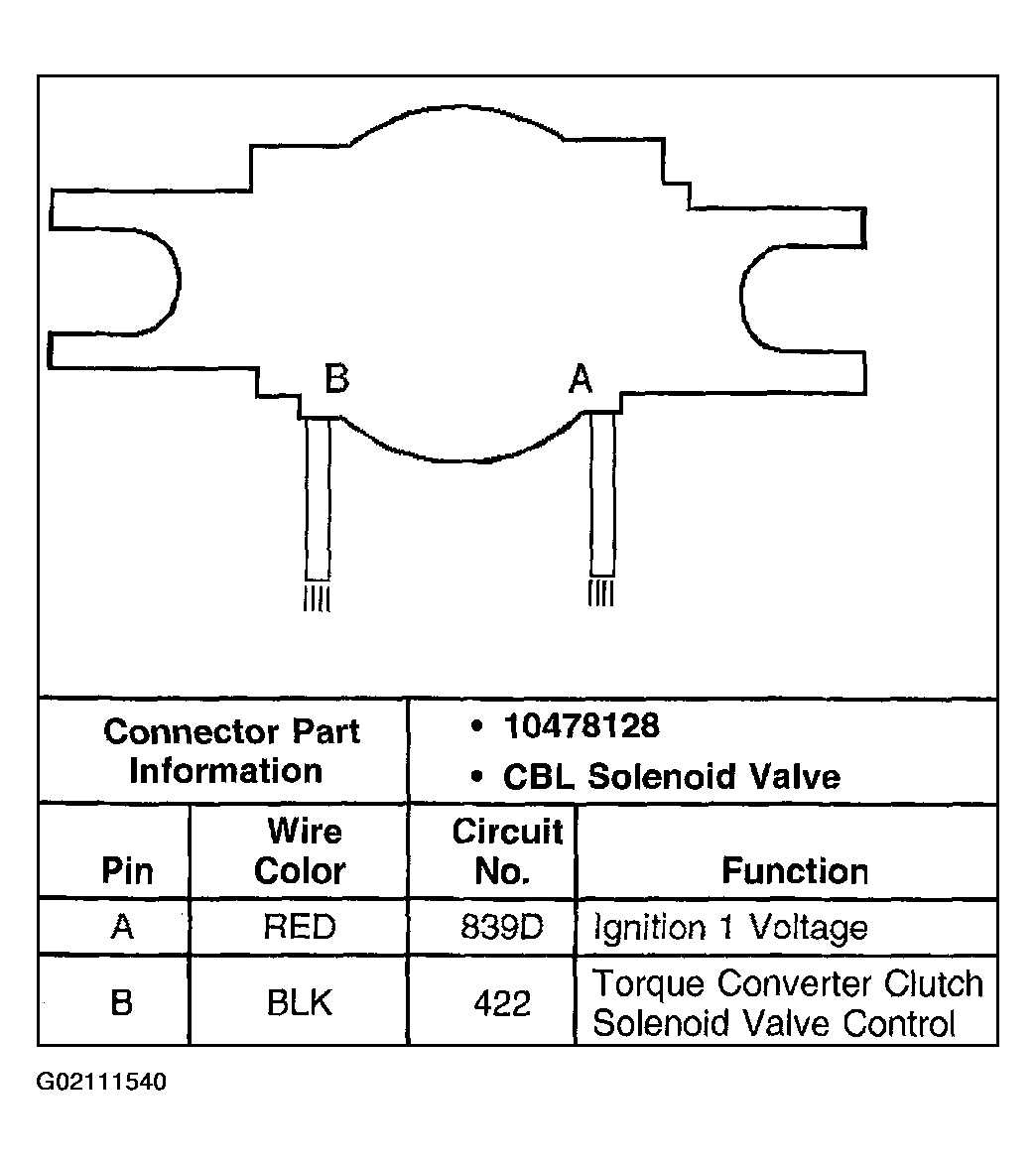

Fig 7: Identifying Torque Converter Clutch (TCC) Solenoid Valve Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
