Automatic Transmission In-line 20-Way (C175) Connector End View

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

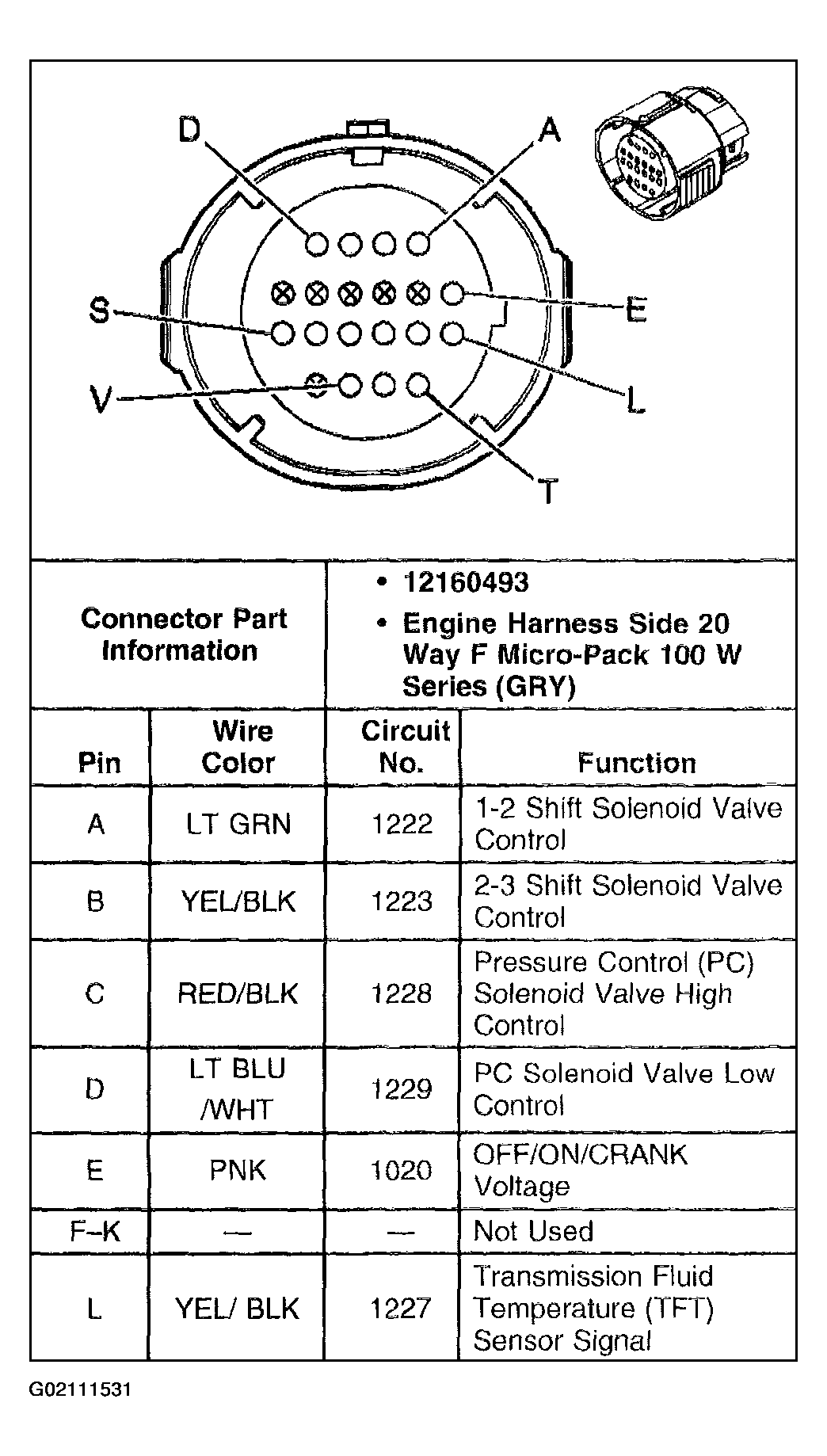

Fig 1: Identifying AT In-line 20-Way Connector Terminal, Engine Side (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

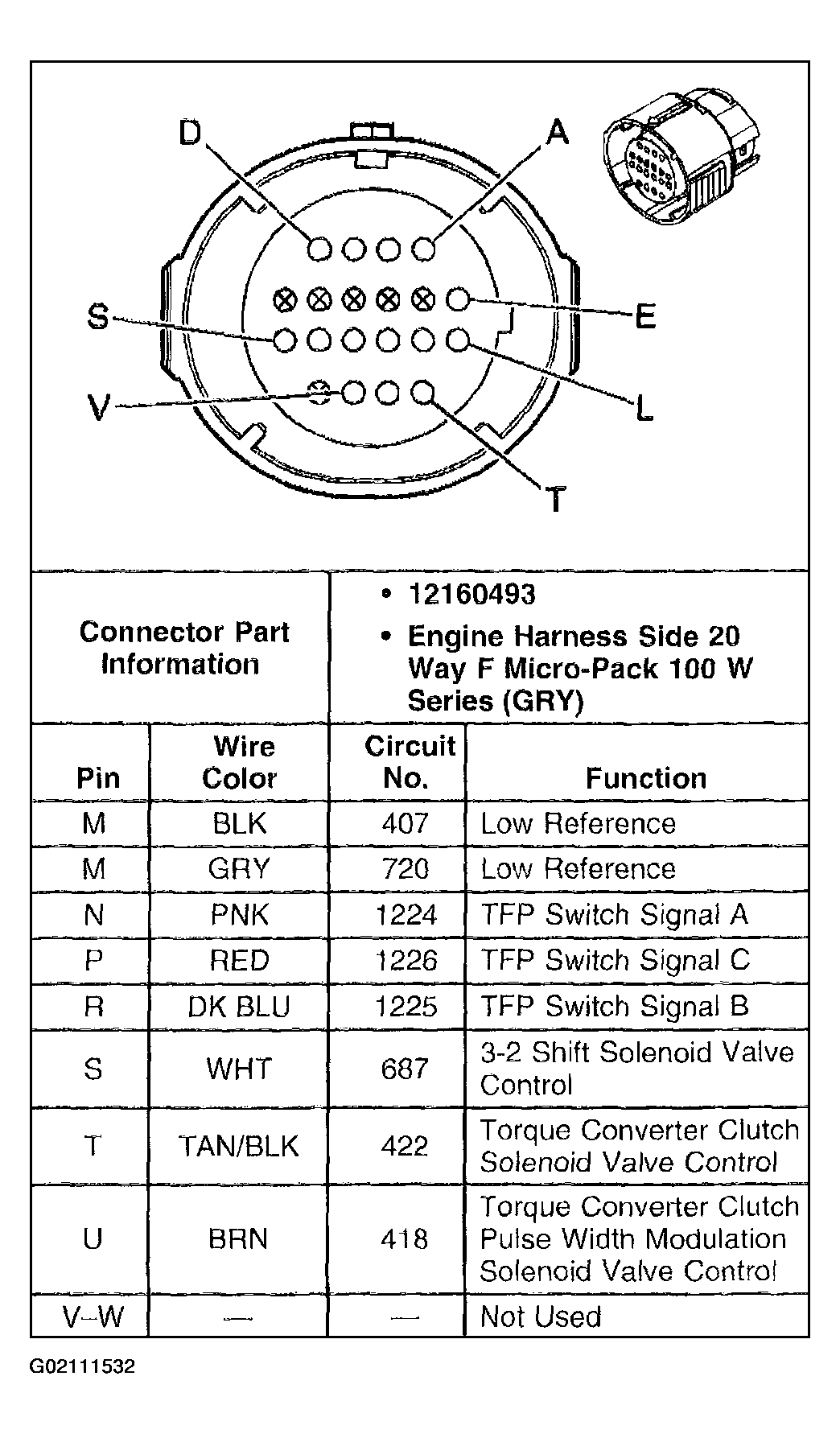

Fig 2: Identifying AT In-line 20-Way Connector Terminal, Engine Side (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

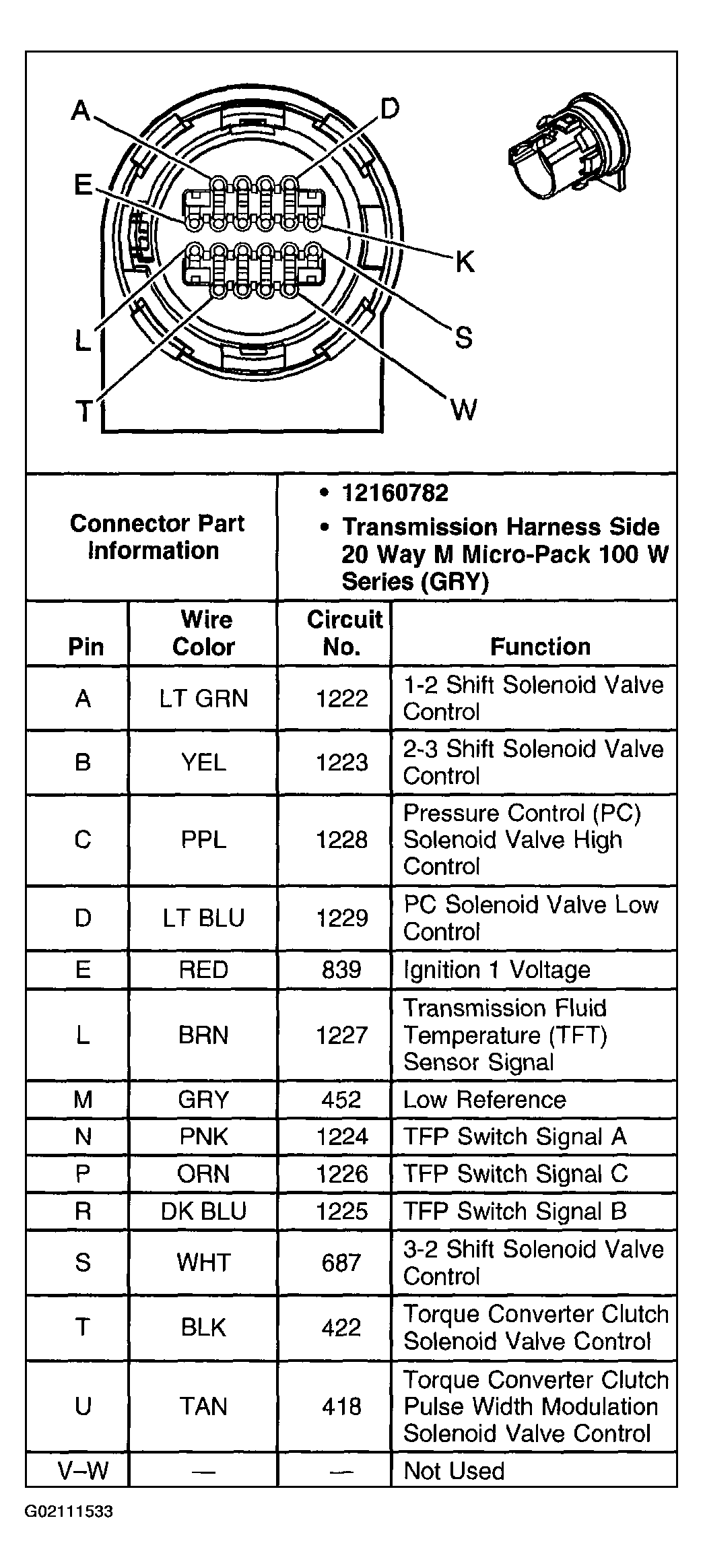

Fig 3: Identifying At In-line 20-Way Connector Terminal, Transmission Side

Courtesy of GENERAL MOTORS CORP.
