Automatic Transmission Electronic Component Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

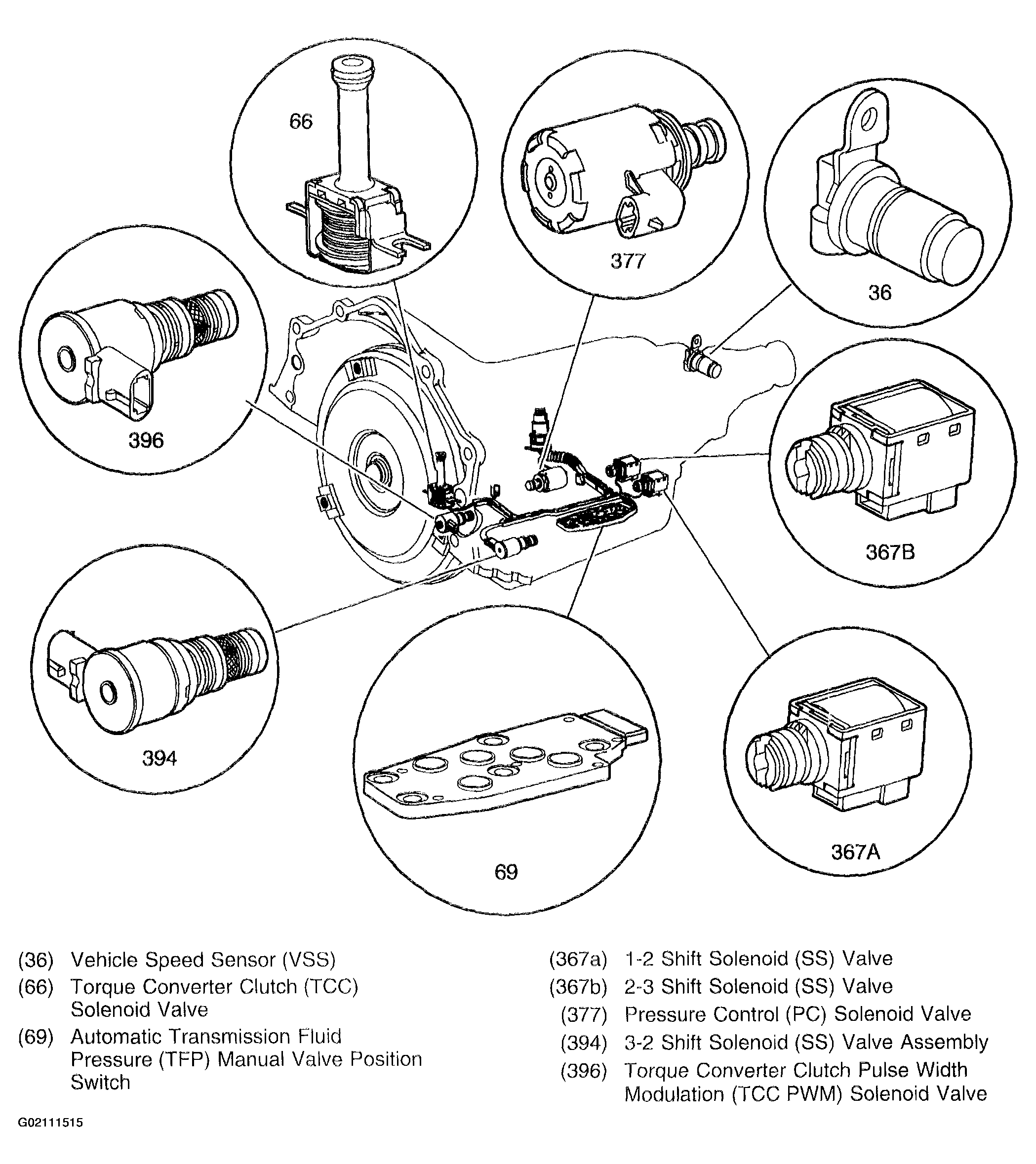

Fig 1: Locating Electronic Components Of Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

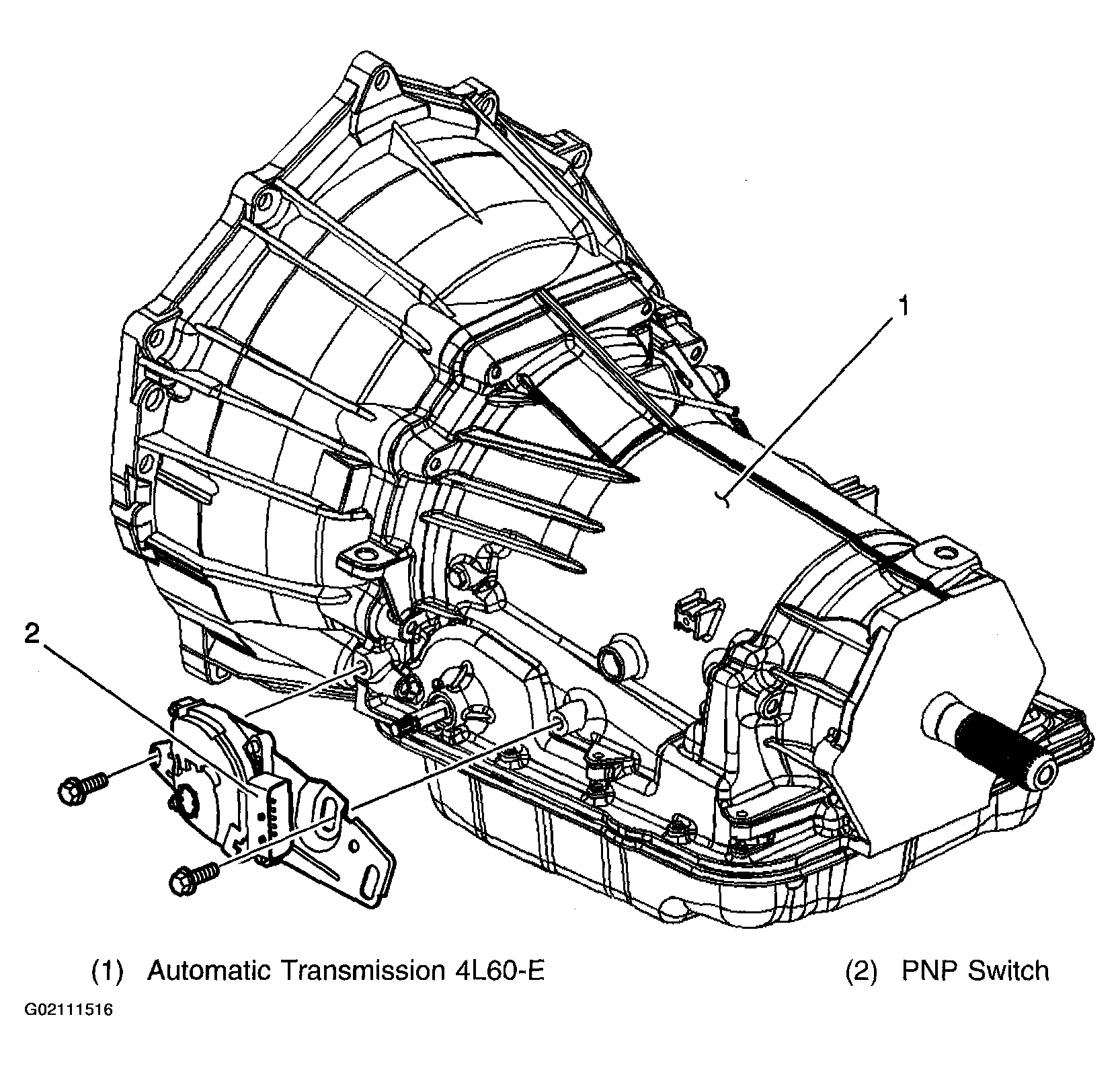

Fig 2: Identifying Park Neutral Position (PNP) Switch

Courtesy of GENERAL MOTORS CORP.

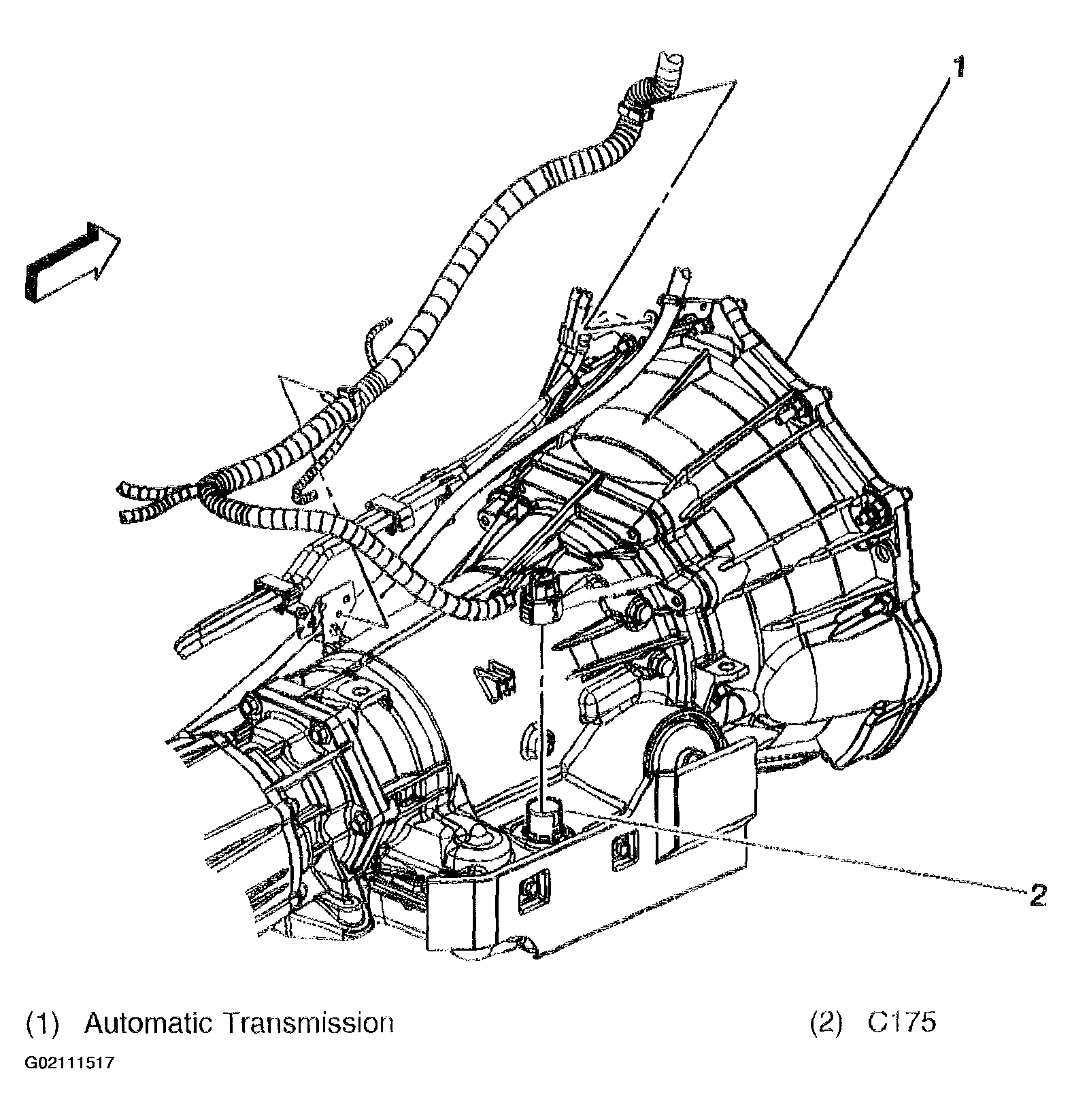

Fig 3: Locating C175 Of Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

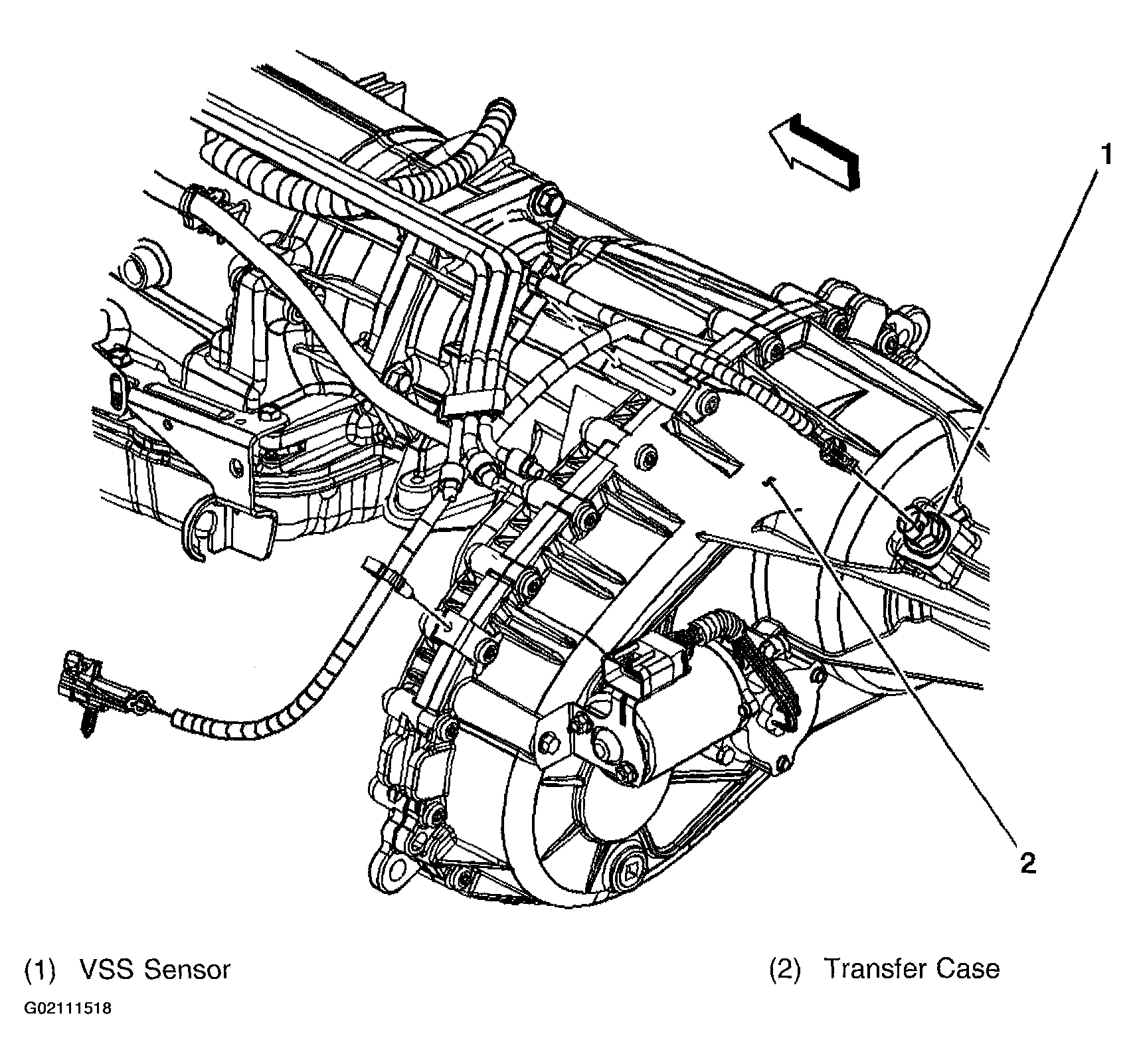

Fig 4: Locating Vehicle Speed Sensor (VSS)

Courtesy of GENERAL MOTORS CORP.
