Passenger's Side

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read the service warnings and cautions before handling the air bag module. See AIR BAG SAFETY PRECAUTIONS
  1. Disconnect the negative battery cable and wait for 1 min or more.
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Dashboard center panel (See DASHBOARD CENTER PANEL REMOVAL/INSTALLATION .)
  3. Using a flathead screwdriver, pry out the connector stopper plate.
    Fig 1: Prying Out Connector Stopper Plate
    G02566806Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the passenger-side air bag module connector.
  5. Remove the bolts and screws.
  6. Pull the dashboard garnish outward, and detach clips A.
  7. Remove the dashboard garnish.
  8. Install in the reverse order of removal.

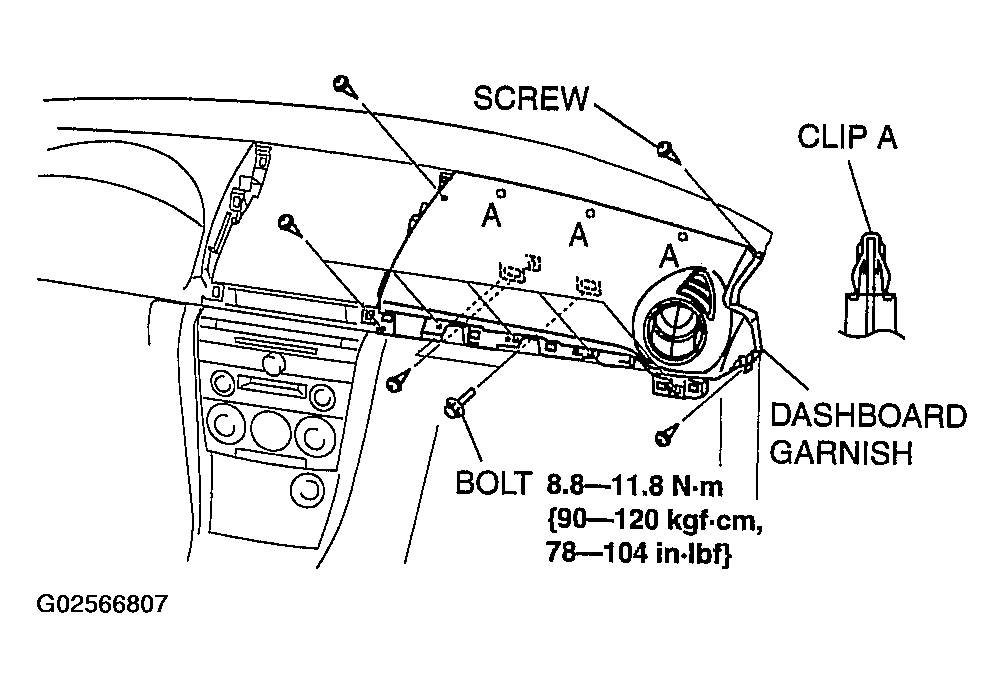

    Fig 2: Dashboard Garnish Bolts & Screws With Torque Specifications
    G02566807Courtesy of MAZDA MOTORS CORP.
