Glove Compartment Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front scuff plate. (Passenger's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Remove the front side trim. (Passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
  3. Remove the decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)
  4. Remove the screws.
  5. Pull the glove compartment outward and detach clips A and tab B.
  6. Remove the glove compartment.
  7. Install in the reverse order of removal.

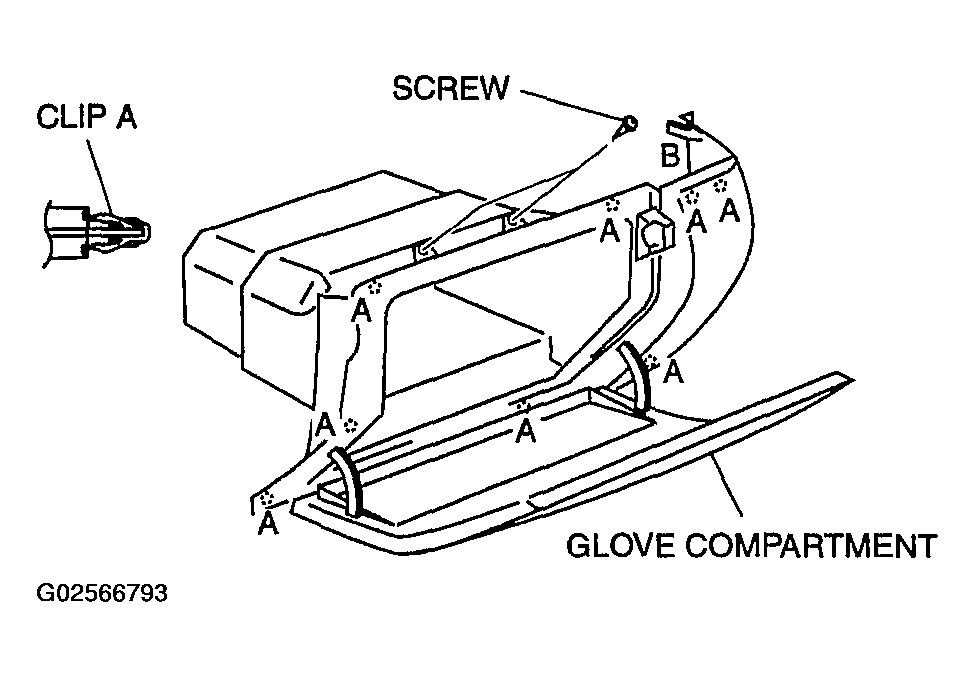

    Fig 1: Removing/Installing Glove Compartment
    G02566793Courtesy of MAZDA MOTORS CORP.
