Rear Door Quarter Glass Removal/Installation
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (Vehicles with power window system)
- Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
- Remove the regulator handle. (Vehicles with manual window system) (See REGULATOR HANDLE REMOVAL .)
- Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

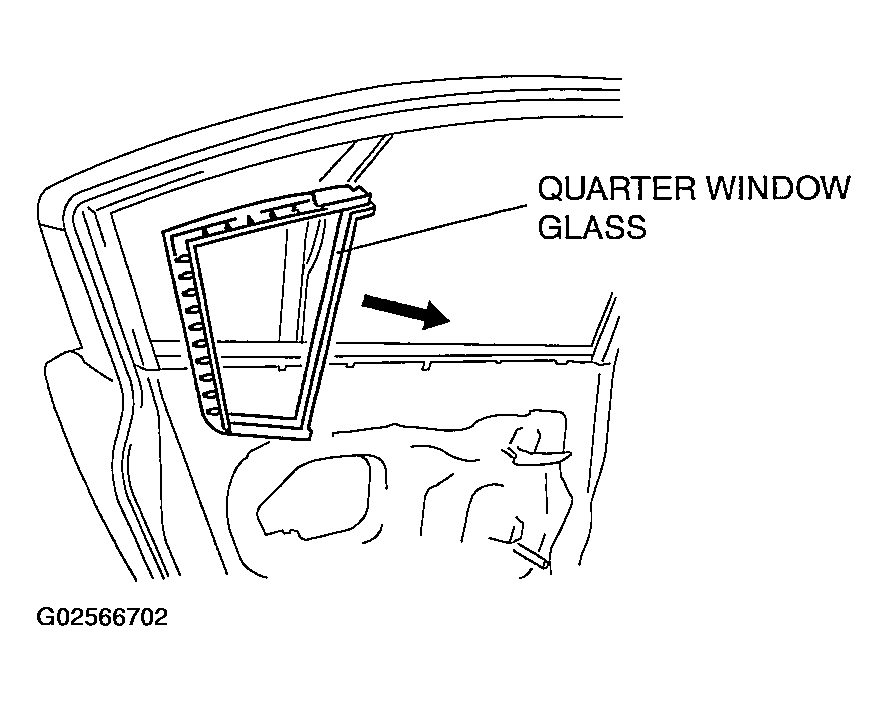

- Remove the rear door quarter glass.
- Install in the reverse order of removal.
