Cowl Panel Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Remove the bolts, then remove the cowl panel.
  4. Install in the reverse order of removal.

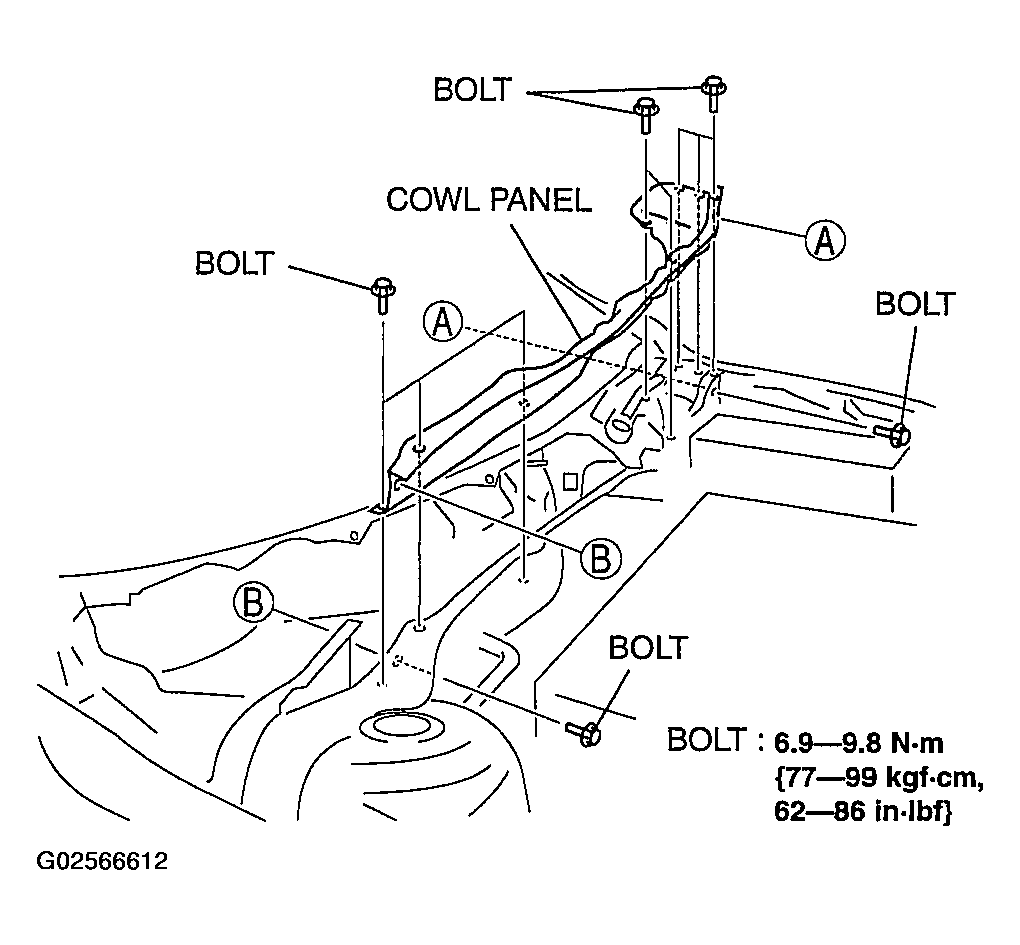

    Fig 1: Cowl Panel With Torque Specifications
    G02566612Courtesy of MAZDA MOTORS CORP.
