Cowl Grille Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Using a small flathead screwdriver, remove the caps.
  3. Remove the screws.
  4. Remove the weatherstrip.
  5. Move the cowl grille in the direction indicated by the arrow and disengage tabs A from the windshield.
  6. Remove the cowl grille.
  7. Install in the reverse order of removal.

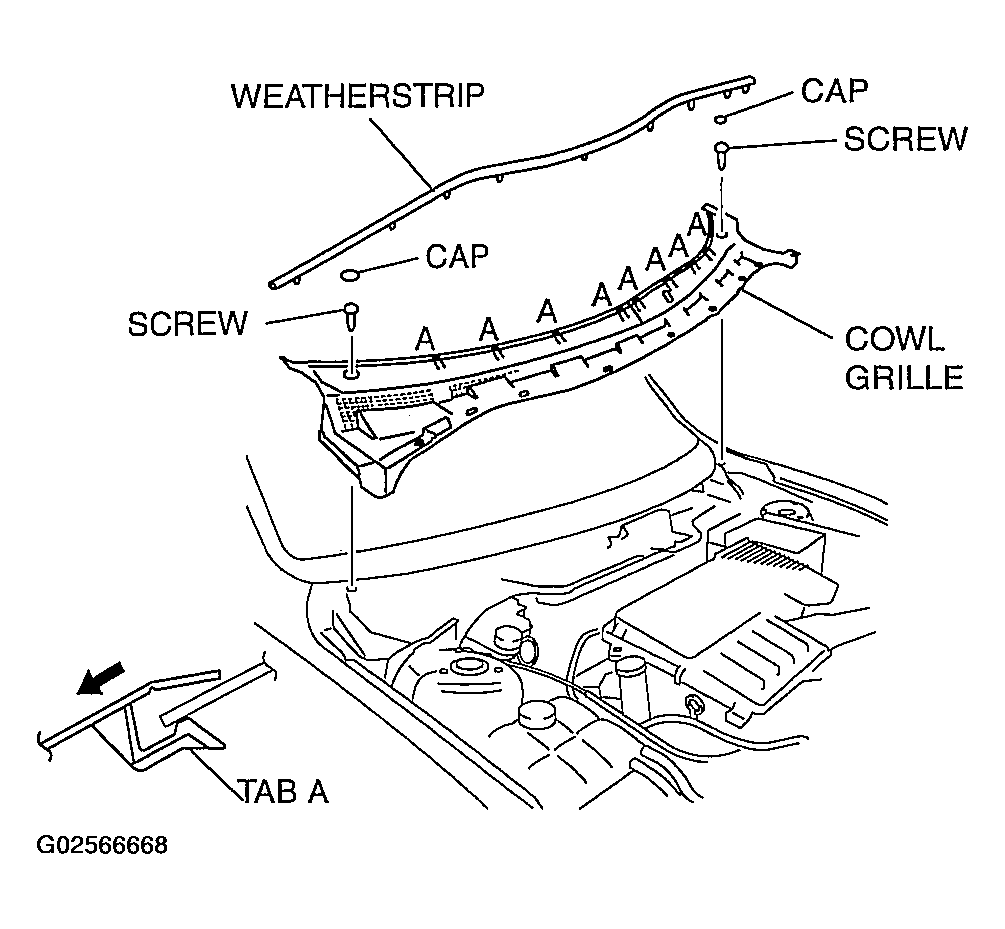

    Fig 1: Removing/Installing Cowl Grille
    G02566668Courtesy of MAZDA MOTORS CORP.
