Resistance Inspection

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Perform the following procedure only when directed.

Inspect resistance of the EVAP system leak detection pump.
- If not as specified, replace the EVAP system leak detection pump. (See EVAPORATIVE EMISSION (EVAP) SYSTEM LEAK DETECTION PUMP REMOVAL/INSTALLATION .)
- If as specified, carry out the Circuit Open/Short Inspection .

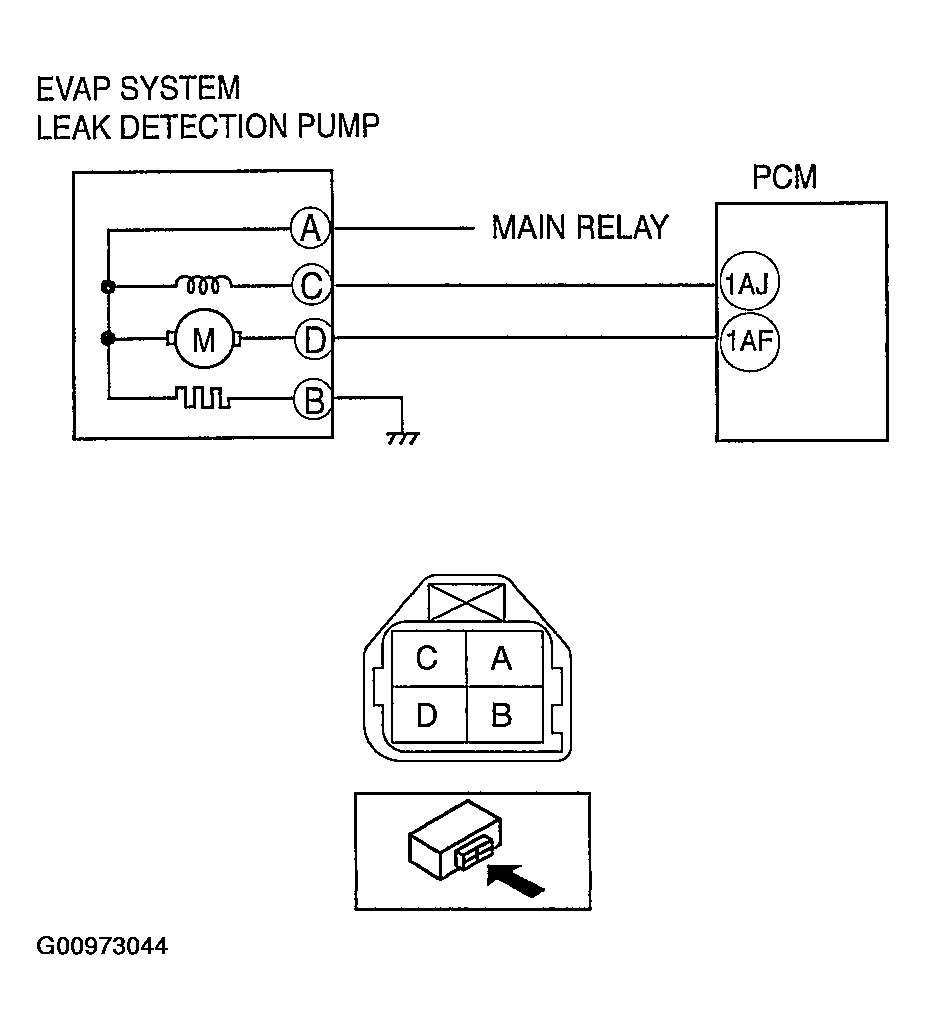

Fig 1: Evaporative Emission System Leak Detection Pump Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

Fig 2: Evaporative Emission System Leak Detection Pump Resistance Specification Table
Courtesy of MAZDA MOTORS CORP.
