Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood hinge to the alignment marks on the fender.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the lower hood hinge bolts to the fender.

    Tighten

    Tighten the bolts to 28 N.m (21 lb ft).

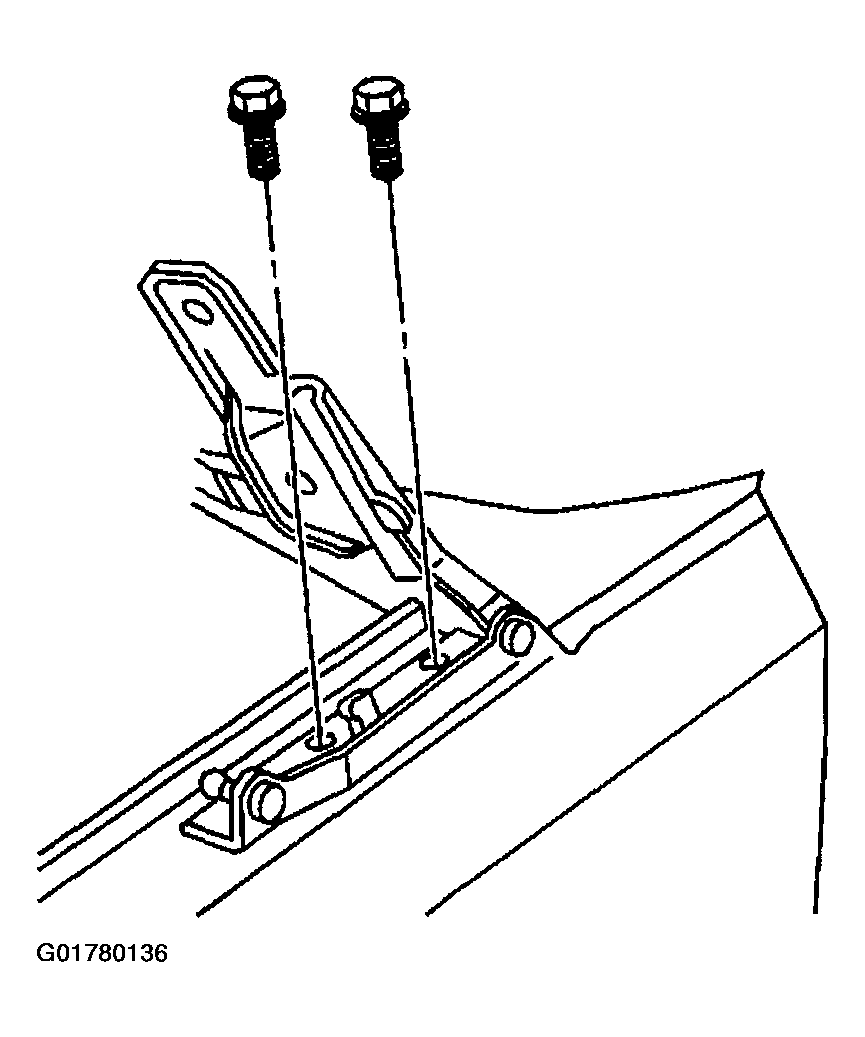

    3. Fig 1: Installing Hood Hinge
    G01780136Courtesy of GENERAL MOTORS CORP.
  3. Install the hood. Refer to Hood Replacement .
  4. Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
  5. Align the hood. Refer to Hood Adjustment .
