Hood Adjustment

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Loosen the bolts for the hood latch.

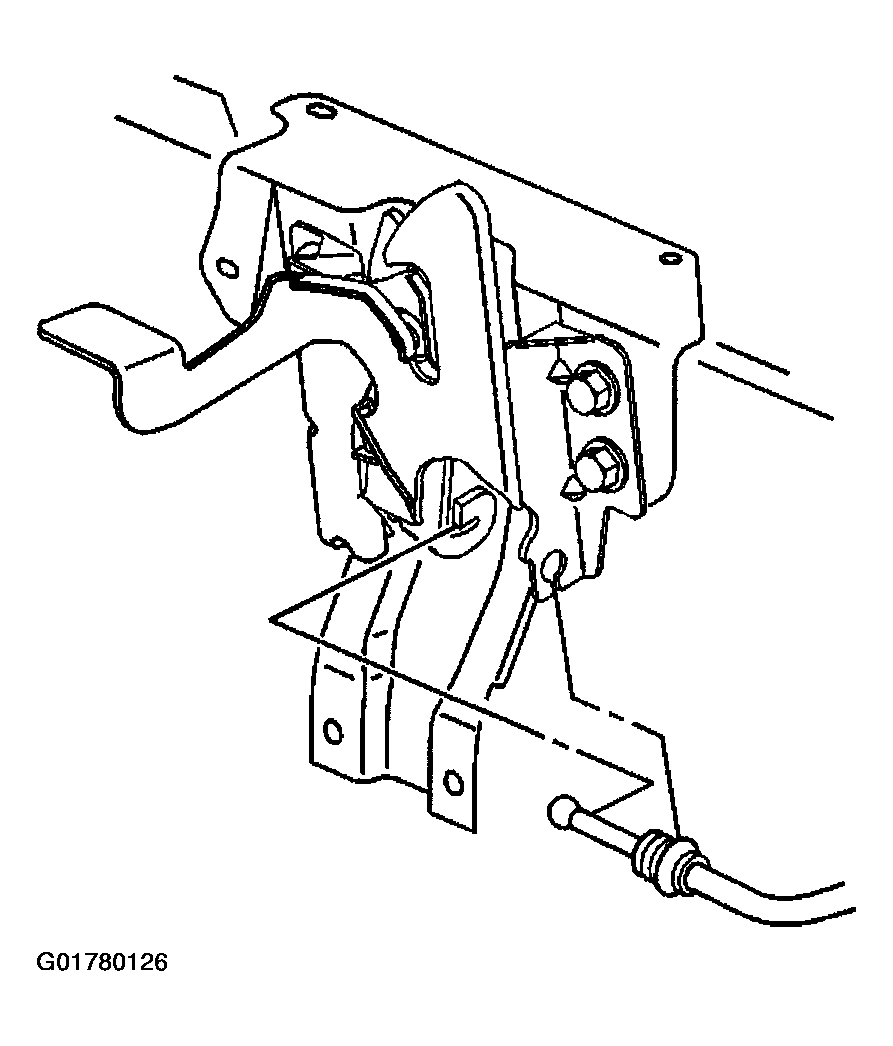

    Fig 1: Loosening Hood Latch Bolts
    G01780126Courtesy of GENERAL MOTORS CORP.
  3. Adjust the front hood bumpers (4) on the radiator support until the hood aligns with the front of the fenders.
  4. Measure the difference between the hood and the rear of the fender.
  5. Obtain a shim that is the same thickness as the difference between the hood and the rear of the fender.
  6. Loosen the hood hinge to hood bolts.
  7. Install the shim between the hood hinge (1) and the hood.
  8. Tighten the hood hinge to hood bolts until snug.
  9. Position the hood latch upward.
  10. Tighten the hood latch bolts until they are snug.

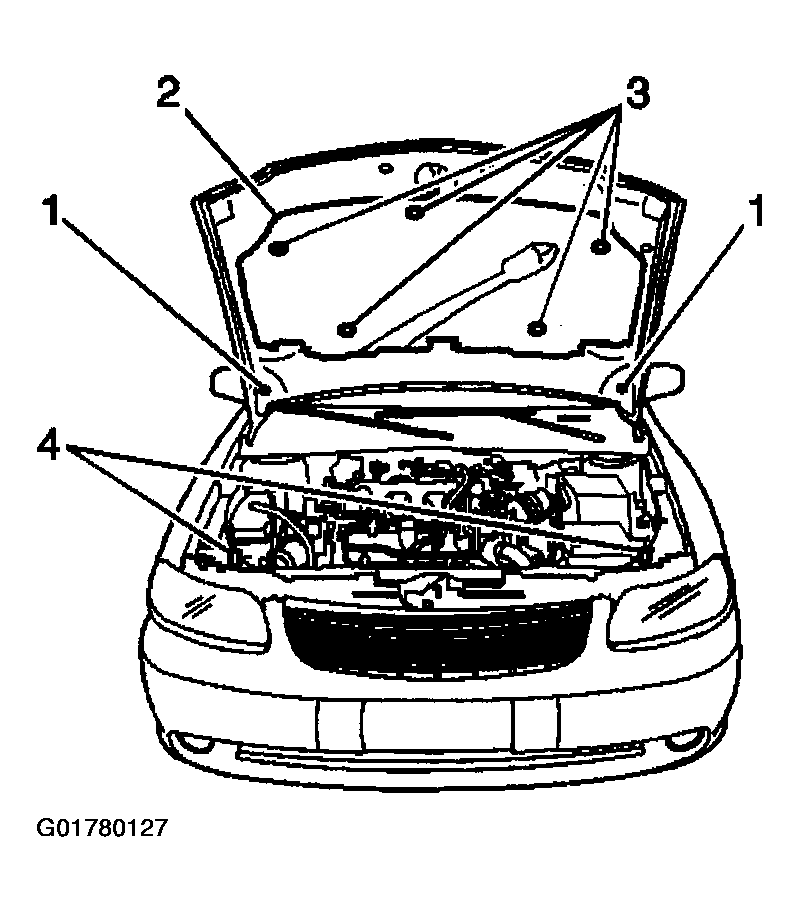

    Fig 2: Locating Hood Components
    G01780127Courtesy of GENERAL MOTORS CORP.
  11. Carefully close the hood in order to engage the hood latch.
  12. Adjust the clearance between the hood and fender.
  13. Carefully open the hood.
    CAUTION: Refer to FASTENER NOTICE .
  14. Tighten the hood latch bolts.

    Tighten

    Tighten the hood latch bolts to 28 N.m (21 lb in).

  15. Tighten the hood hinge to hood bolts.

    Tighten

    Tighten the hood hinge to hood bolts to 25 N.m (21 lb ft).

  16. Close the hood.

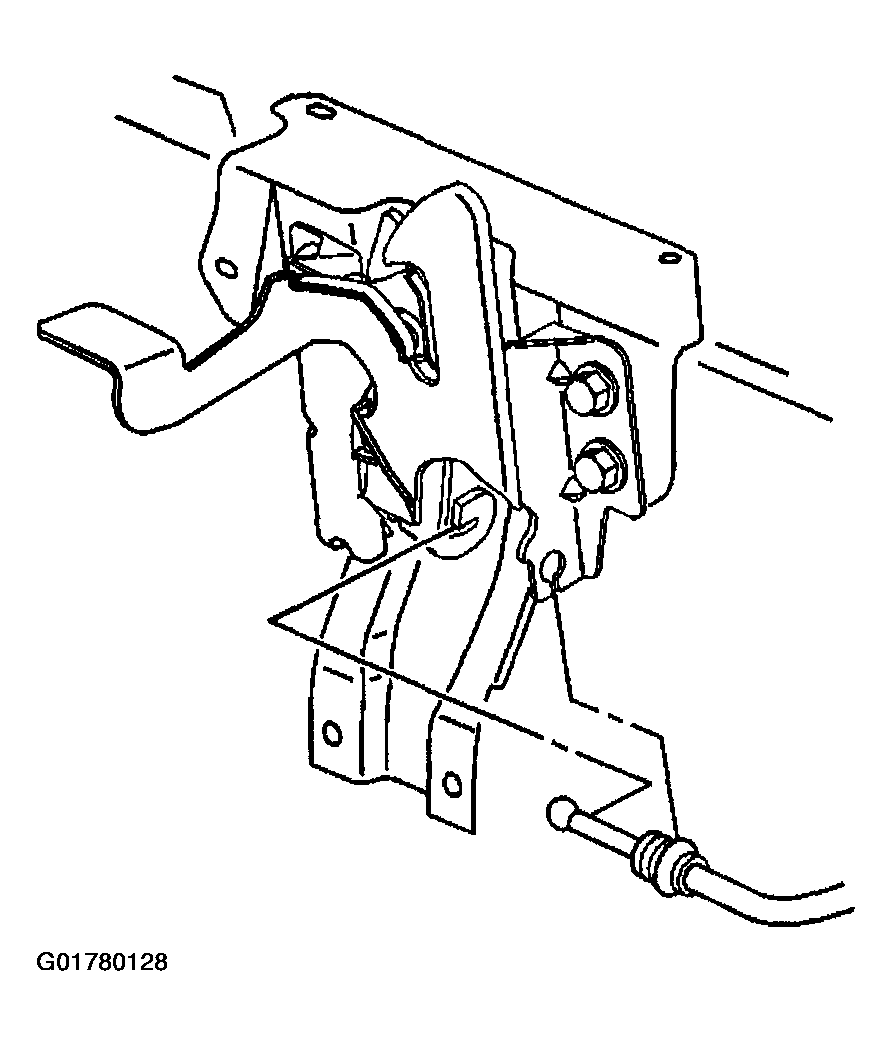

    Fig 3: Tightening Hood Latch Bolts
    G01780128Courtesy of GENERAL MOTORS CORP.
