Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the Inflatable Restraint Steering Wheel Module. Refer to REMOVAL & INSTALLATION (DRIVER-SIDE) .
  3. Remove the steering wheel mass damper retaining screws.
  4. Remove the mass damper from the steering wheel.
    5. Fig 1: Removing Mass Damper
    G01581847Courtesy of GENERAL MOTORS CORP.
  5. Remove the steering wheel retaining nut.
  6. Note the mark on the steering shaft and the steering wheel in order to ensure proper alignment during installation.
  7. Use the J 42578  and the J 1859-A  in order to remove the steering wheel.
  8. Remove the J 42578  and the J 1859-A  from the steering wheel.

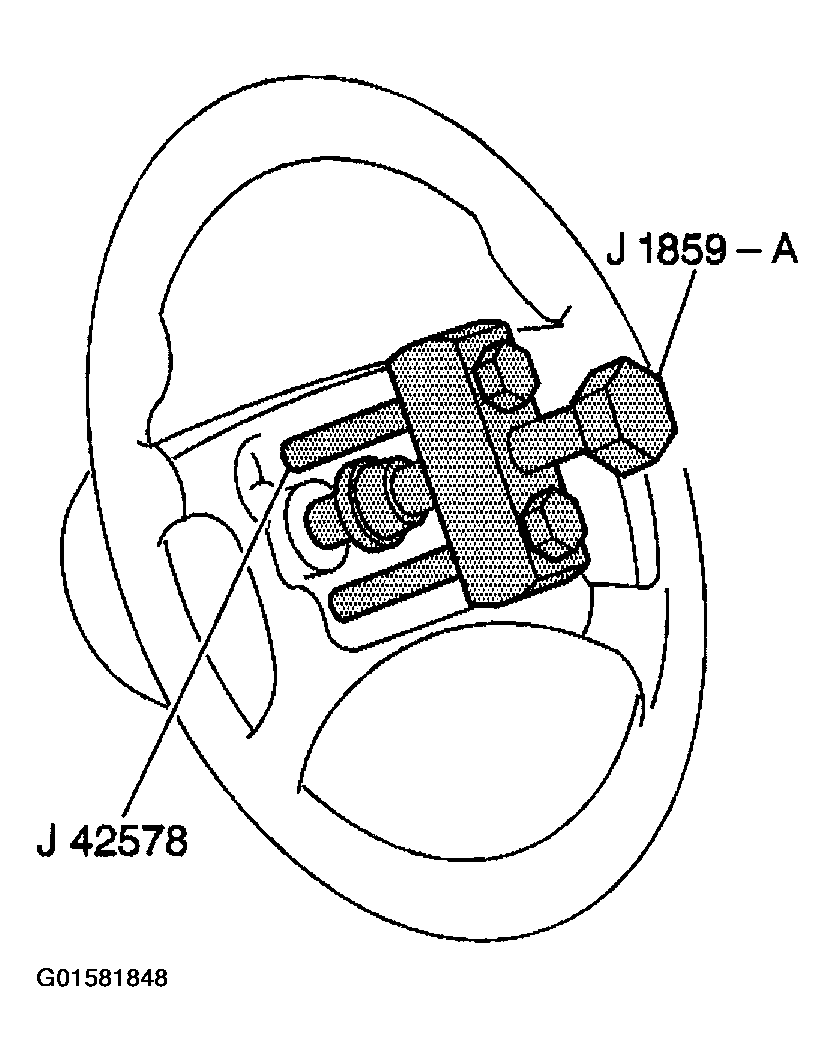

    Fig 2: Removing Steering Wheel
    G01581848Courtesy of GENERAL MOTORS CORP.
